Panasonic SA-PM31PC - Disassembly of Rear Panel; Disassembly of Main P.C.B

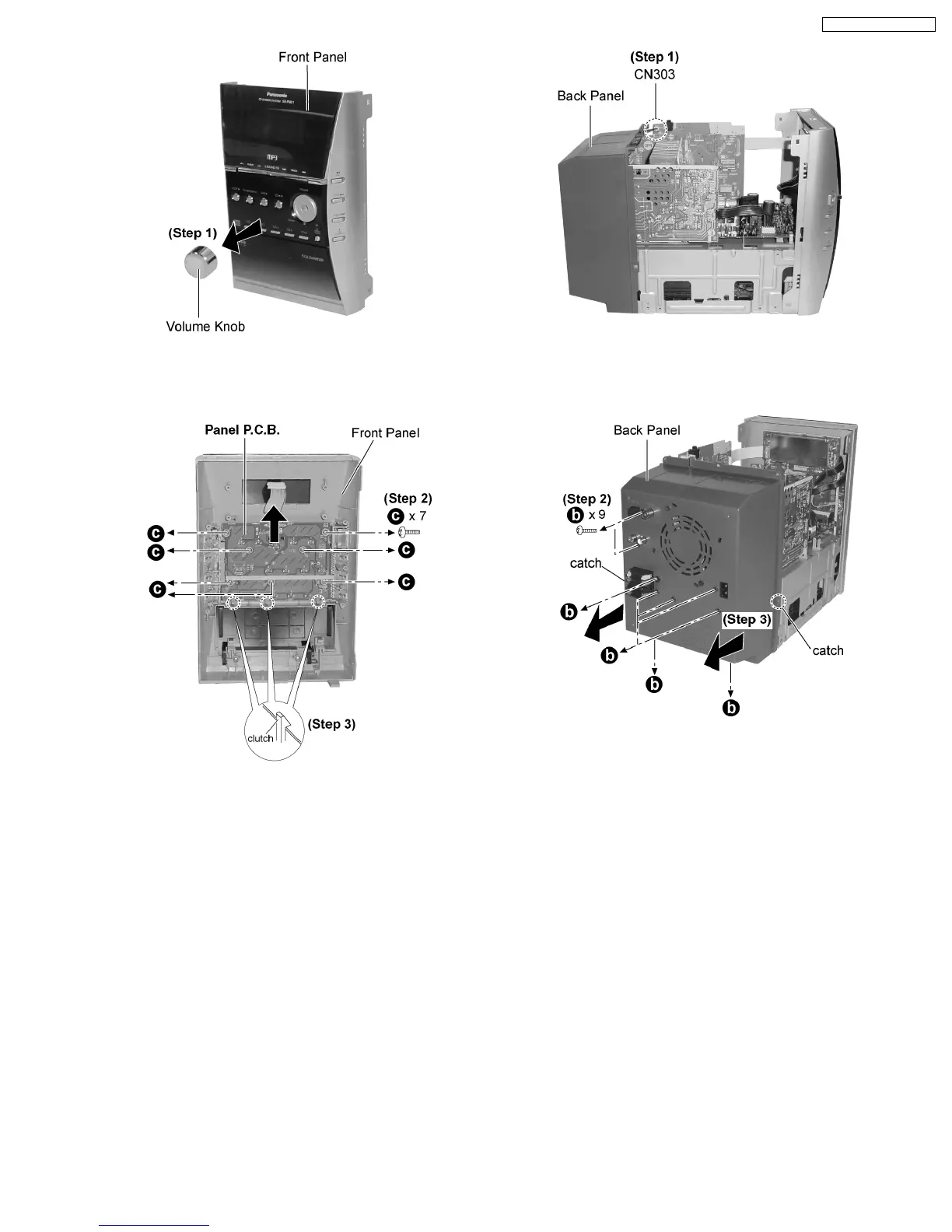

Step 1 : Remove the volume knob.
Step 2 : Remove 7 screws.
Step 3 : Release 3 clutches and remove the Panel P.C.B. as
arrow shown.
9.8. Disassembly of Rear Panel
· Follow the (Step 1) - (Step 6) of Item 9.2.
· Follow the (Step 1) - (Step 3) of Item 9.3.
Step 1 : Detach the connector CN303.
Step 2 : Remove 9 screws.
Step 3: Remove the rear panel as arrows shown (Be careful of
the catches).
9.9. Disassembly of Main P.C.B.
· Follow the (Step 1) - (Step 6) of Item 9.2.
· Follow the (Step 1) - (Step 3) of Item 9.3.
· Follow the (Step 1) - (Step 3) of Item 9.8.
