Panasonic SA-PT560E - Disassembly of Top Cabinet; Disassembly of Rear Panel; Disassembly of Scart P.C.B

9.3. Disassembly of Top Cabinet

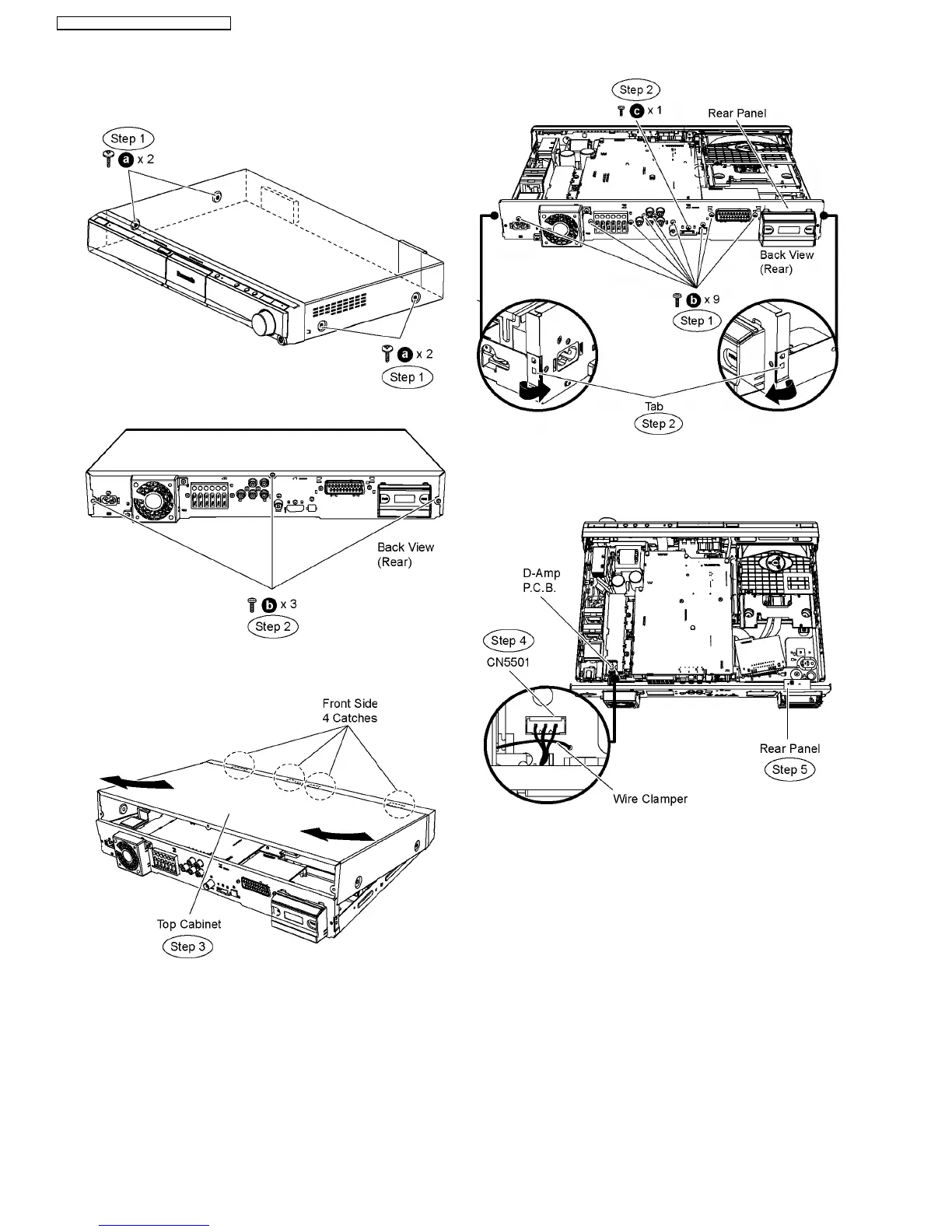

Step 1 Remove 4 screws at the sides of the top cabinet.
Step 2 Remove 3 screws at the rear of the top cabinet.
Step 3 Lift up the back part of the top cabinet and remove it in
the direction of arrows.
9.4. Disassembly of Rear Panel
•
• •
• Follow (Step 1) to (Step 3) of Item 9.3.
Step 1 Remove 9 screws at the rear panel.
Step 2 Remove 1 screw at the rear panel.
Step 3 Release the tab of each side of the rear panel in the
direction of arrow.
Step 4 Remove the wire clamper to detach the fan unit
connector (CN5501) on D-Amp P.C.B.
Step 5 Remove the rear panel.
9.5. Disassembly of Scart P.C.B.
•
• •
• Follow (Step 1) to (Step 3) of Item 9.3.
Step 1 Remove 2 screws at the rear panel.
Step 2 Detach 22P FFC cable at the connector (CN4001) on
Scart P.C.B.
Step 3 Remove Scart P.C.B.
44
SA-PT560E / SA-PT560EB / SA-PT560EG
