Panasonic SA-PT560E - Disassembly of Coprocessor; Disassembly of Wireless Adapter

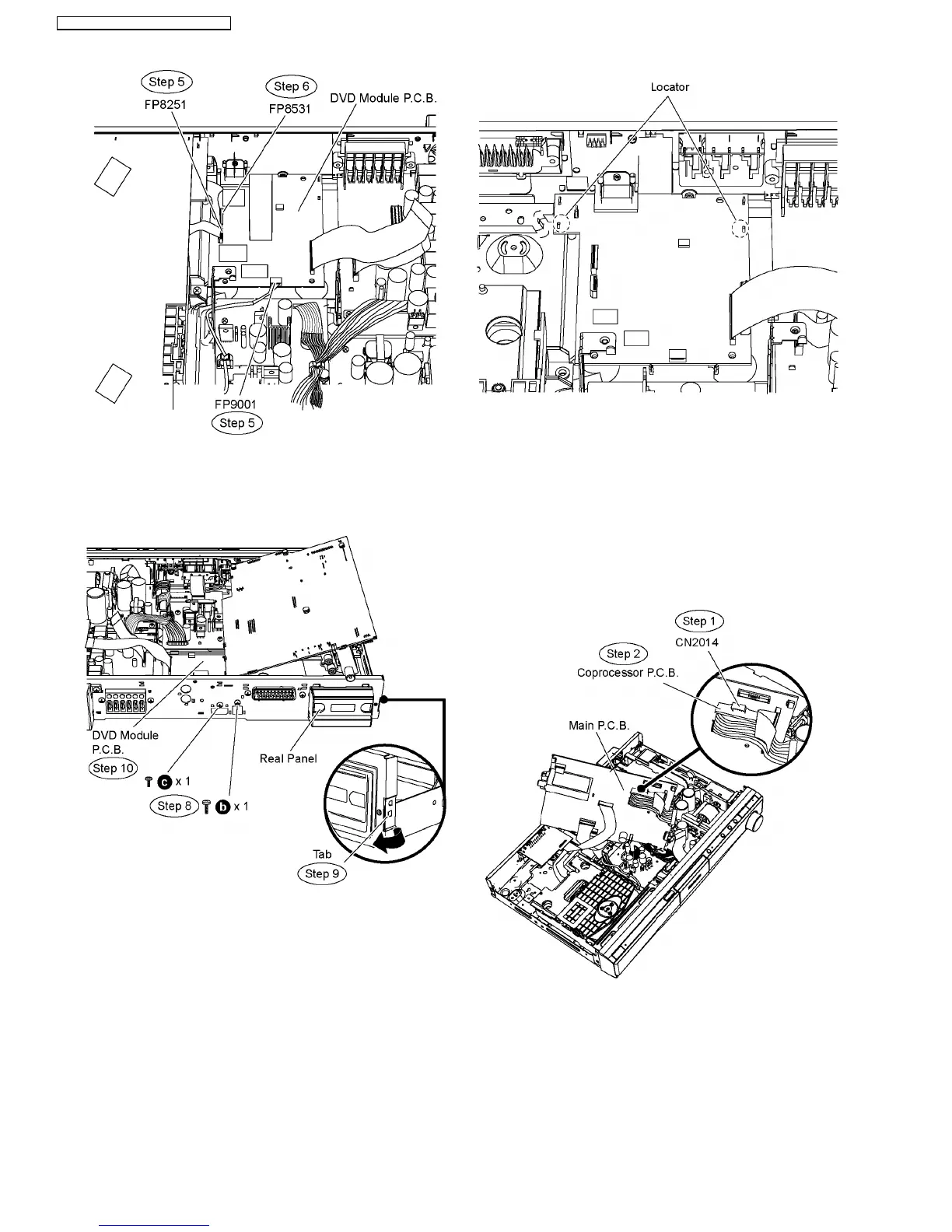

Step 8 Remove 2 screws at the rear panel.
Step 9 Release the tab of the rear panel in the direction of
arrow.
Step 10 Remove DVD Module P.C.B.
Special Note: During reassembling procedures, ensure the
P.C.B. is seated properly at the locators.
9.29. Disassembly of Coprocessor
P.C.B.
•
• •
• Follow (Step 1) to (Step 3) of Item 9.3.
•
• •
• Follow (Step 1) to (Step 8) of Item 9.7.
Step 1 Detach Coprocessor P.C.B. at the connector (CN2014)
on Main P.C.B.
Step 2 Remove Coprocessor P.C.B.
9.30. Disassembly of Wireless
Adapter P.C.B.
Step 1 Remove 1 screw on Wireless Adaptor P.C.B.
Step 2 Detach 14P FFC cable at the connector (CN6300) on
wireless Adaptor P.C.B.
Step 3 Align the wireless P.C.B straight in the direction of arrow
to remove wireless Adaptor P.C.B.
64
SA-PT560E / SA-PT560EB / SA-PT560EG
