Panasonic SA-PT560E - Disassembly of AC Inlet P.C.B

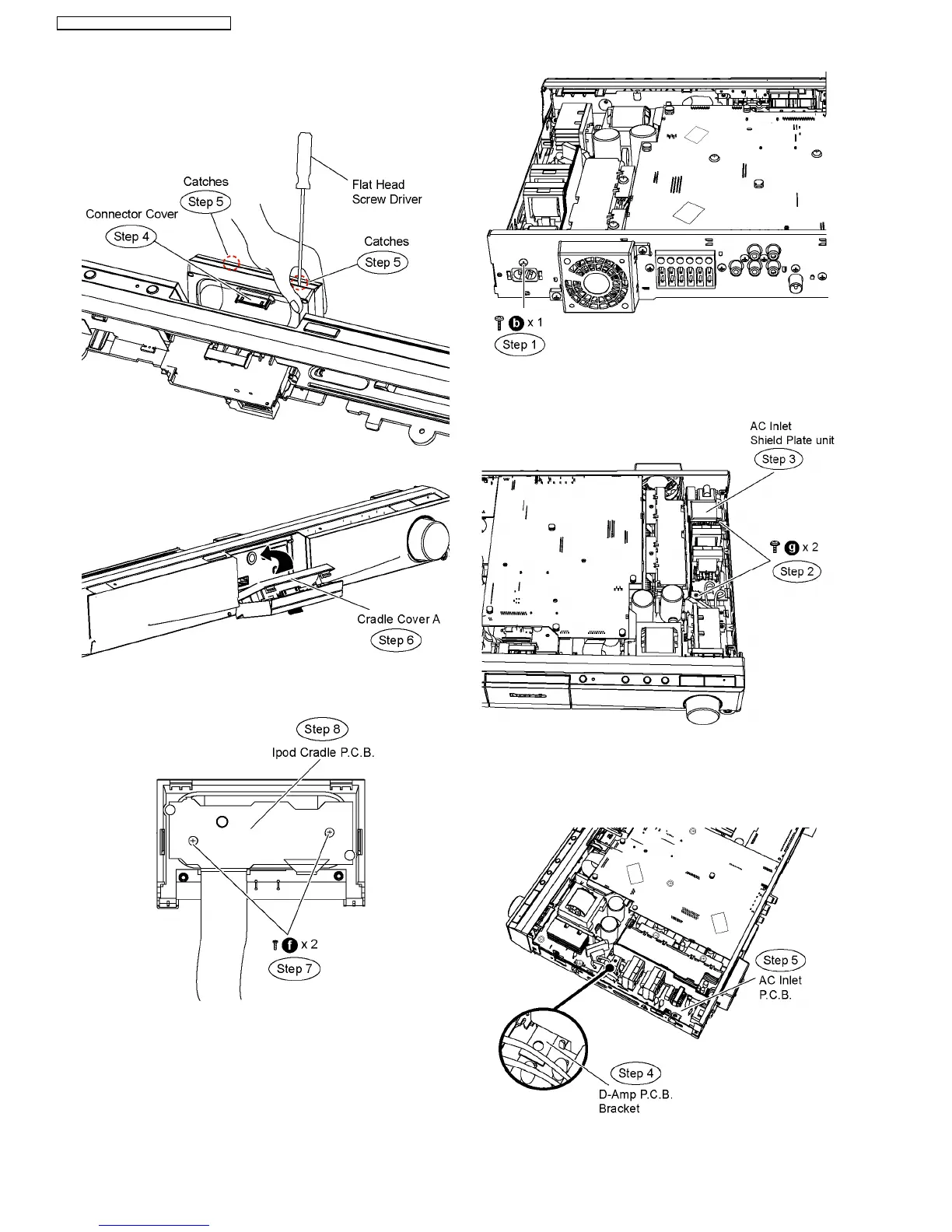

Step 4 Remove theconnector cover.
Step 5 Use a flat head screwdriver (0.5-0.7mm) to release the
catches according to the diagram show.
Step 6 Remove cradle cover A as the direction of arrow.
Step 7 Remove 2 screws on the Ipod cradle P.C.B.
Step 8 Remove Ipod cradle P.C.B.
9.13. Disassembly of AC Inlet P.C.B.
•
• •
• Follow (Step 1) to (Step 3) of Item 9.3.
•
• •
• Disassembly of AC Inlet Shield Plate Unit.
Step 1 Remove 1 screw at the rear panel.
Step 2 Remove 2 screws from the AC Inlet shield plate unit.
Step 3 Remove the AC Inlet shield plate unit.
Caution Note: Keep the AC Inlet shield plate unit in safe
place. Avoid denting it. Place it back during assembling.
Step 4 Remove the D-Amp P.C.B. bracket.
Step 5 Remove AC Inlet P.C.B.
Caution Note: Keep the D-Amp P.C.B. bracket in safe
48
SA-PT560E / SA-PT560EB / SA-PT560EG
