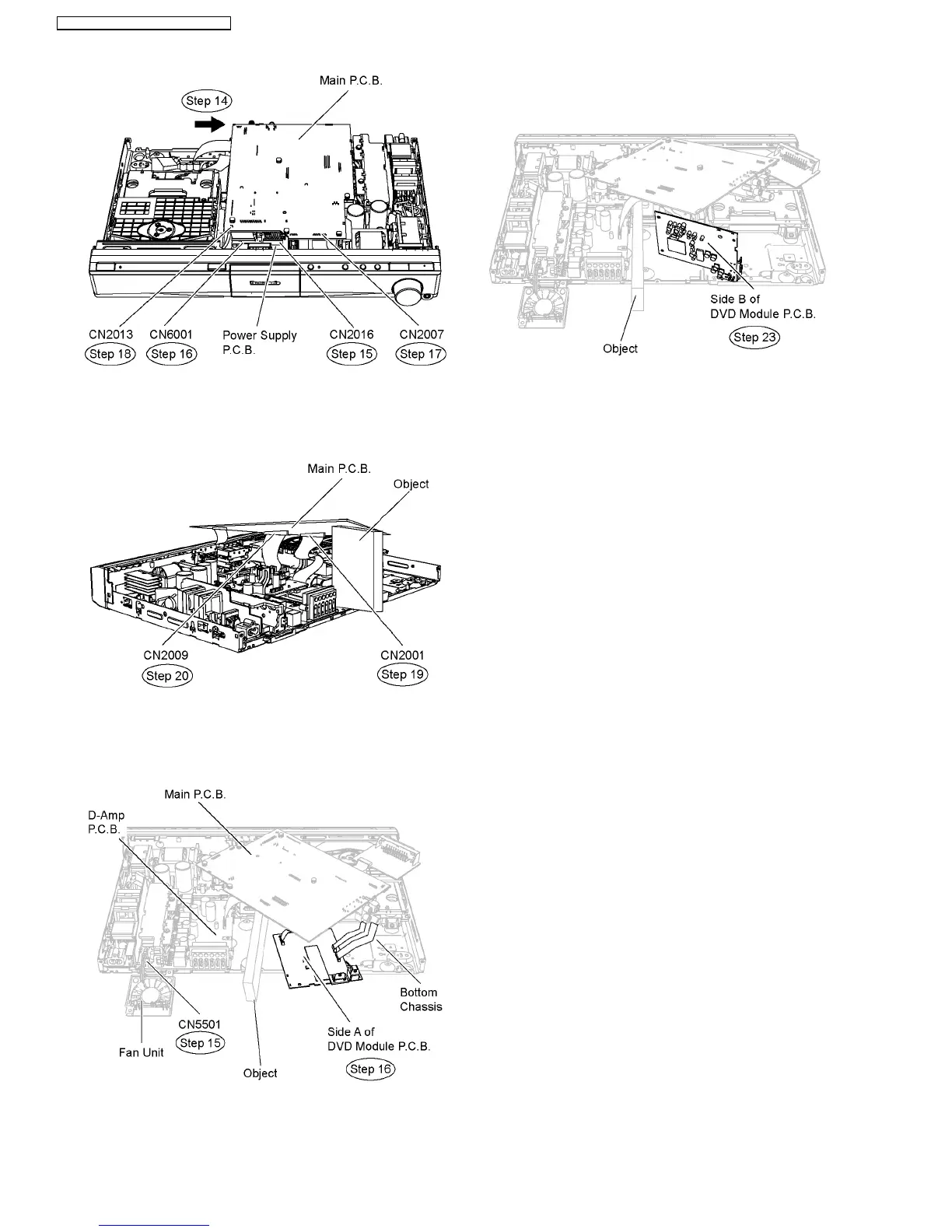

Step 19 Connect 50P cable at the connector (CN2001) on
Main P.C.B.
Step 20 Connect 17P cable at the connector (CN2009) on
Main P.C.B.
Step 21 Connect the fan unit at the connector (CN5501) on D-
Amp P.C.B.
Step 22 Detach DVD Module P.C.B. from the bottom chassis
and position its side A according to the diagram shown.
Note: An object can be placed beneath Main P.C.B. to adjust
its height.
•
• •
• Servicing side B of DVD Module P.C.B.
Step 23 Flip DVD Module P.C.B. to its side B and position it
according to the diagram shown..
76
