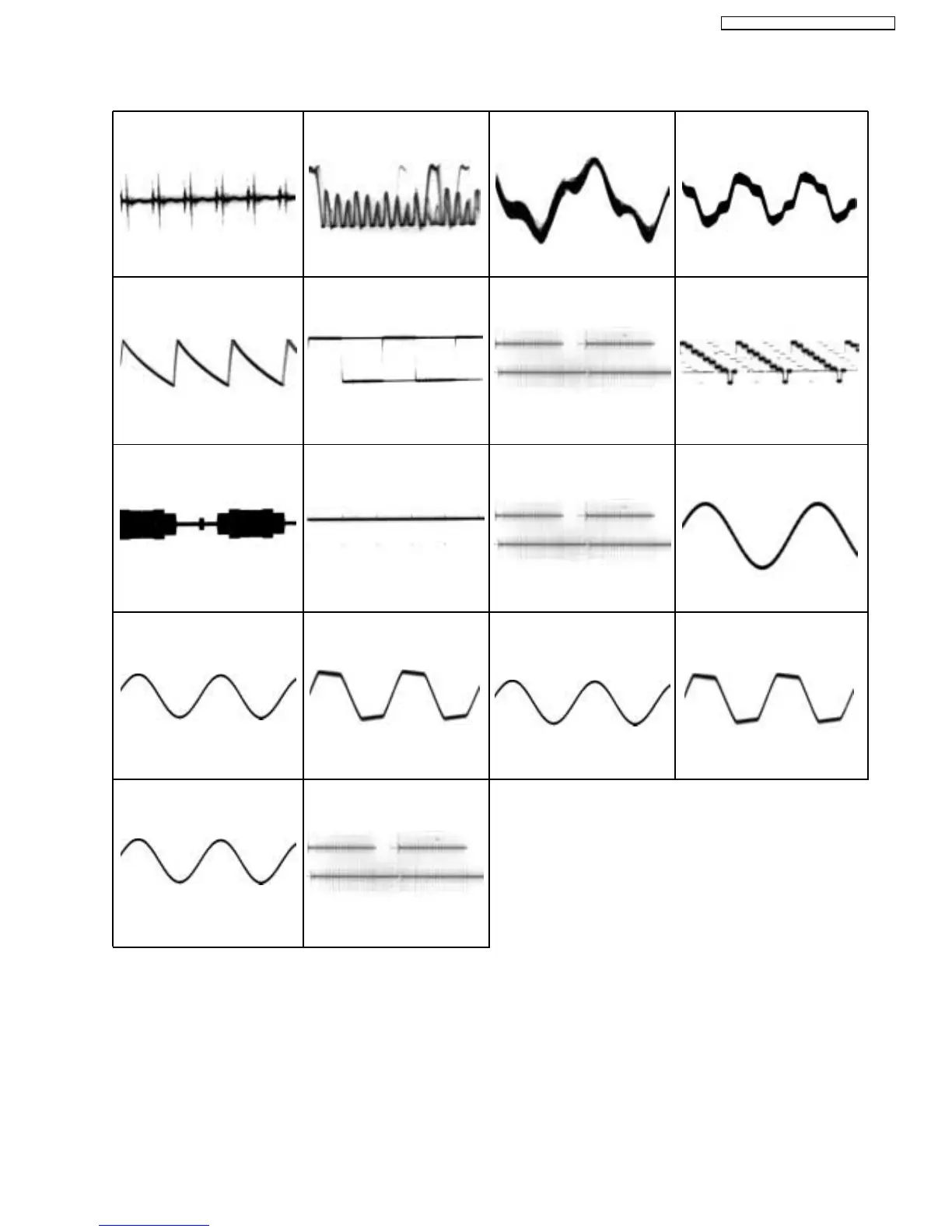

14.8.3. Waveform 3
WF No. IC5799-2 (PLAY)
2Vp-p(5usec/div)
WF No. IC5799-3 (PLAY)
9.6Vp-p(5usec/div)
WF No. IC5799-5 (PLAY)
240Vp-p(50usec/div)
WF No. IC5899-1,2,3 (PLAY)
1.65Vp-p(5msec/div)
WF No. IC6901-5 (PLAY)
2.15Vp-p(2usec/div)
WF No. IC6901-8 (PLAY)
5.6Vp-p(2usec/div)
WF No. IC8422-1 (PLAY)
2.9Vp-p(200usec/div)
WF No. IC8001-59,62,63,64
(PLAY)
6Vp-p(2usec/div)
WF No. IC8421-9,10,11
(PLAY)
7.2Vp-p(2usec/div)
WF No. IC8421-17 (PLAY)
2Vp-p(5msec/div)
WF No. IC8421-18,19,20,21,22
(PLAY)
3.6Vp-p(200usec/div)
WF No. IC8001-138 (PLAY)
1.05Vp-p(20usec/div)
WF No. IC8001-139 (PLAY)
0.95Vp-p(10usec/div)
WF No. IC8001-144,146
(PLAY)
5.2Vp-p(500usec/div)
WF No. IC8421-25 (PLAY)
0.5Vp-p(200usec/div)
WF No. IC8421-24 (PLAY)
3.6Vp-p(200usec/div)
WF No. IC8422-2 (PLAY)
0.4Vp-p(200usec/div)
WF No. IC8422-9 (PLAY)
7.2Vp-p(2usec/div)
87
SA-PT560E / SA-PT560EB / SA-PT560EG
