Panasonic SC-HM910 - PCB Checking Procedures

SC-HM910/SC-HM810
11

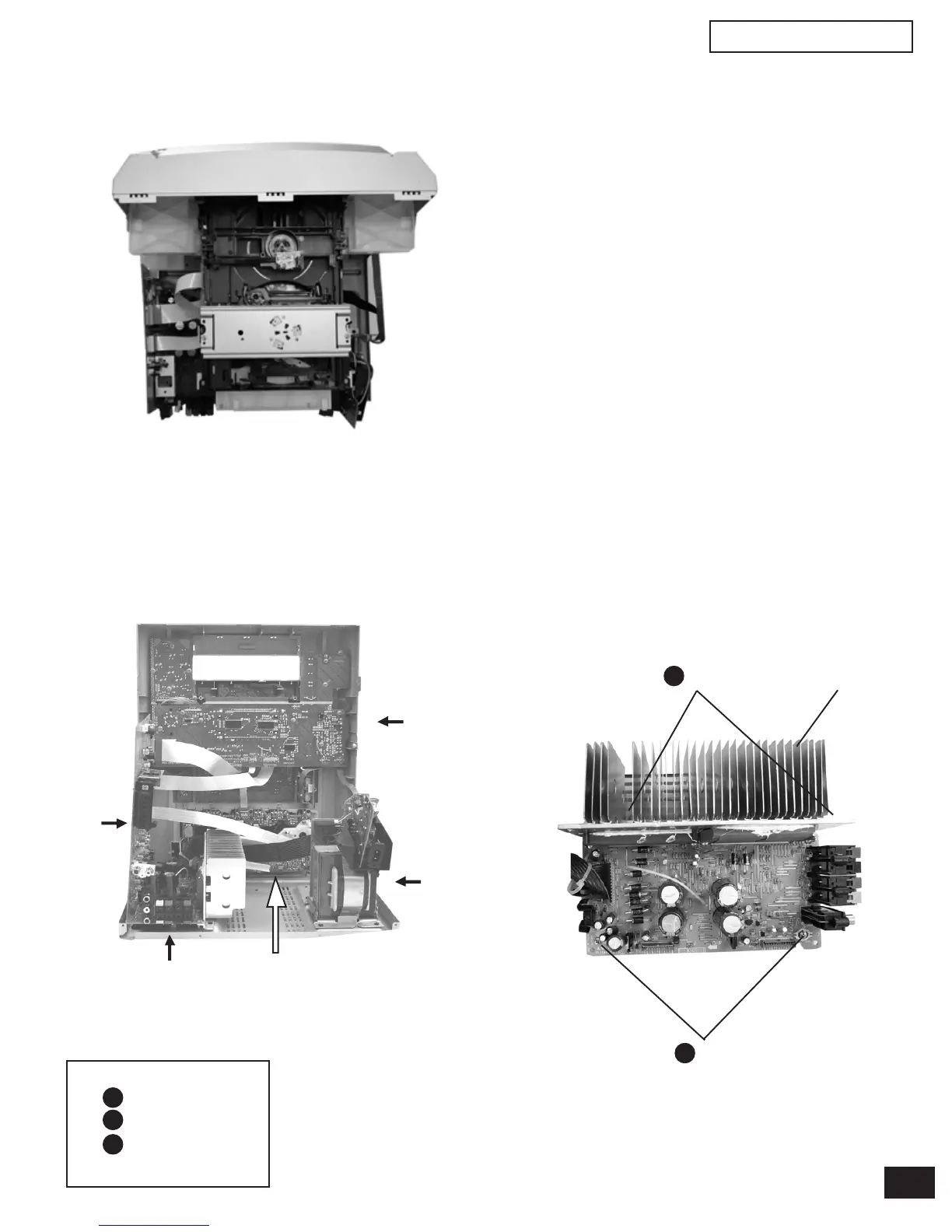

Step 7 Remove the wire CN309 and CN310 (main P.C.B.),
release the 2 catches and remove the CD changer
base together with the CD changer.
Catch
Catch
CN309
Panel
Transformer
Main
Power
Deck
Step 8 Remove 4 screw.
c x 2
b x 2
Heat Sink
: RHD30002-H
: XTBS3+8JFZ1-A
: XTB3+20J-A
a
b
c
CN310
7.3 Checking for Main, Panel, Deck and Power P.C.B.
