10 Self-Diagnostic Function
10.1. Self-diagnostic display
This unit is equipped with a self-diagnostic display function which, if a problem occurs, will display an error code corresponding to the problem.
Use this function when performing maintenance on the unit.

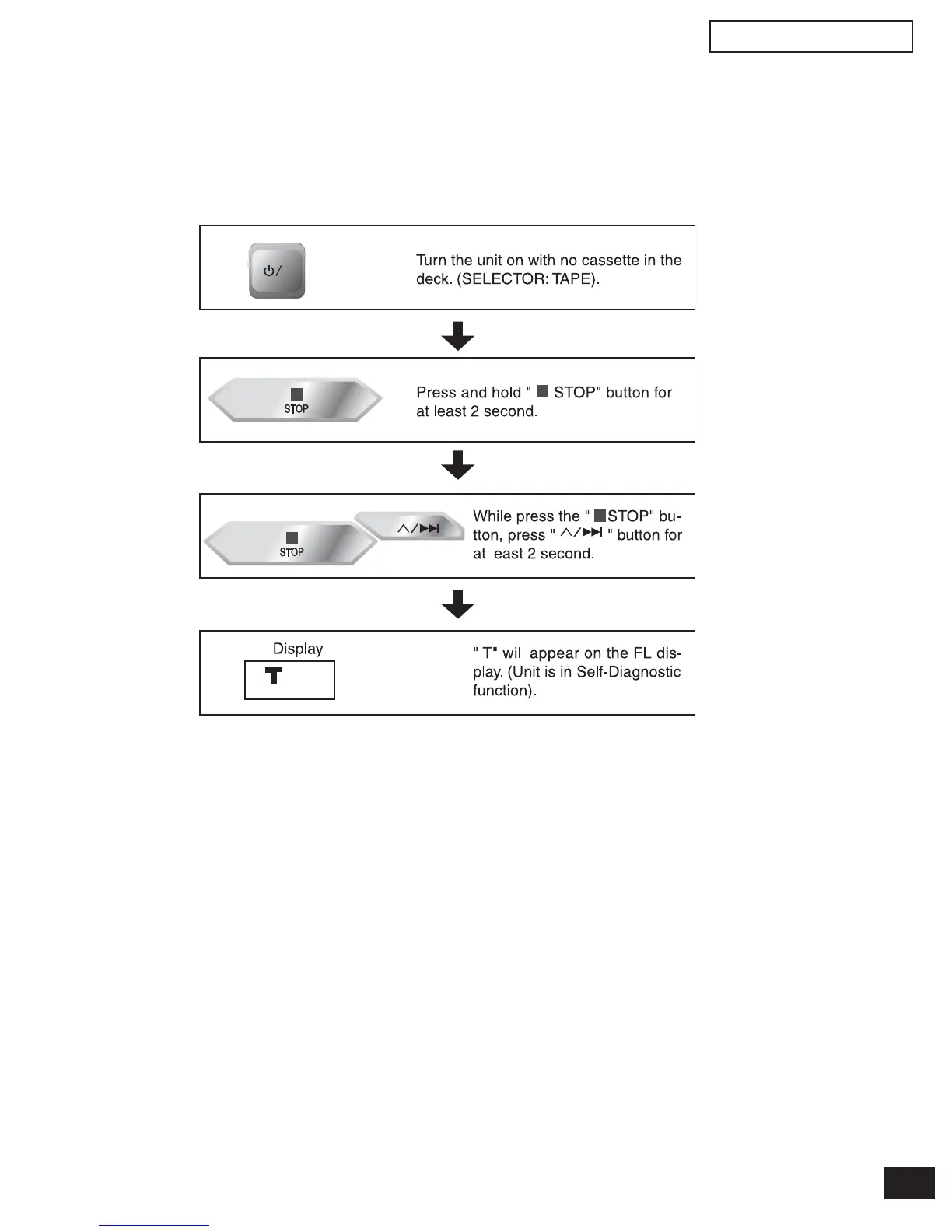

10.2. How to enter the Self-diagnostic function
10.3. Cassette Mechanism Test (For error code H01, H02, H03, F01, F02)
1. Press “TAPE DECK 1/2” to select DECK 2.
2. Load a cassette tape with the erasure prevention tab, remove from left side only and close the casette holder.
3. Press “FAST FORWARD MEMORY” (Tape will be stop after 2 seconds).
4. Load a cassette tape with the erasure prevention tab, remove from right side only and close the cassette holder.
5. Press “REVERSE FM MODE/BP” (Tape will be stop after 2 seconds).
6. Load a pre-recorded tape with both side record tabs intact and close the cassette holder.
7. Press “TAPE” (Tape will not move).
8. Press “REC” (Tape will not move).
9. Press “STOP” to indicate Error code.
• If several problem exist, error code will change each time when “TUNE MODE” is pressed.
(e.g. H01 - H03 - F01....etc.).
10. Press “TAPE DECK 1/2” to select Deck 1.
11. Repeat step 2 to 9 to test Deck 1. (Tape Deck 1 will not check H02 because of no recording function).
