7.10. Replacement for the CD mo-
tor ass’y. capstan belt A, capstan
belt B and winding belt
• Follow the (Step 1) - (Step 2) of item 7.1
• Follow the Disassembly for the CD Changer of item 7.2.
• Follow the (Step 1) - (Step 14) of item 7.4.
• Follow the (Step 1) - (Step 11) of item 7.9

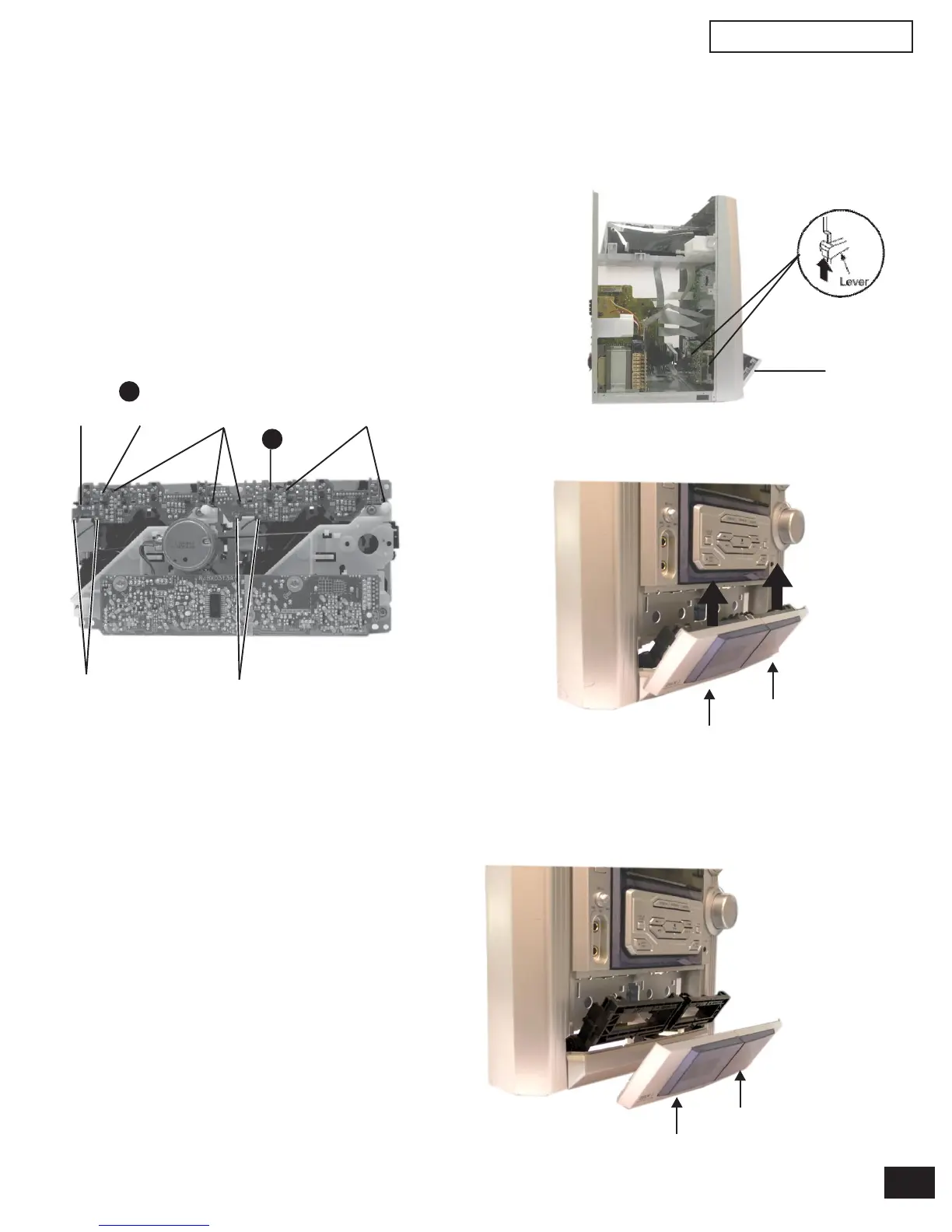

Step 1 Remove 2 screws.
Step 2 Unsolder the plunger terminals (2 points).
Step 3 Release the 3 claws, and then remove the mechanism
P.C.B.
7.11. Replacement for the cassette
lid ass’y
• Follow the (Step 1) - (Step 7) of item 7.1
Step 1 Force the lever upward, open the cassette lid ass’y (For
DECK 1 and DECK2).
Step 2 Lift up the cassette lid ass’y in the direction of arrow.
(For DECK1 and DECK2).
Step 3 Remove the cassette lid ass’y. (For DECK1 and
DECK2).
a x 1
(step 1)
Claw ClawClaw
a
(Step 2)(Step 2)
Cassette
lid
ass’y
Cassette
lid ass’y
(DECK1)
Cassette lid ass’y
(DECK2)
Cassette lid ass’y
(DECK1)
Cassette lid ass’y
(DECK2)
