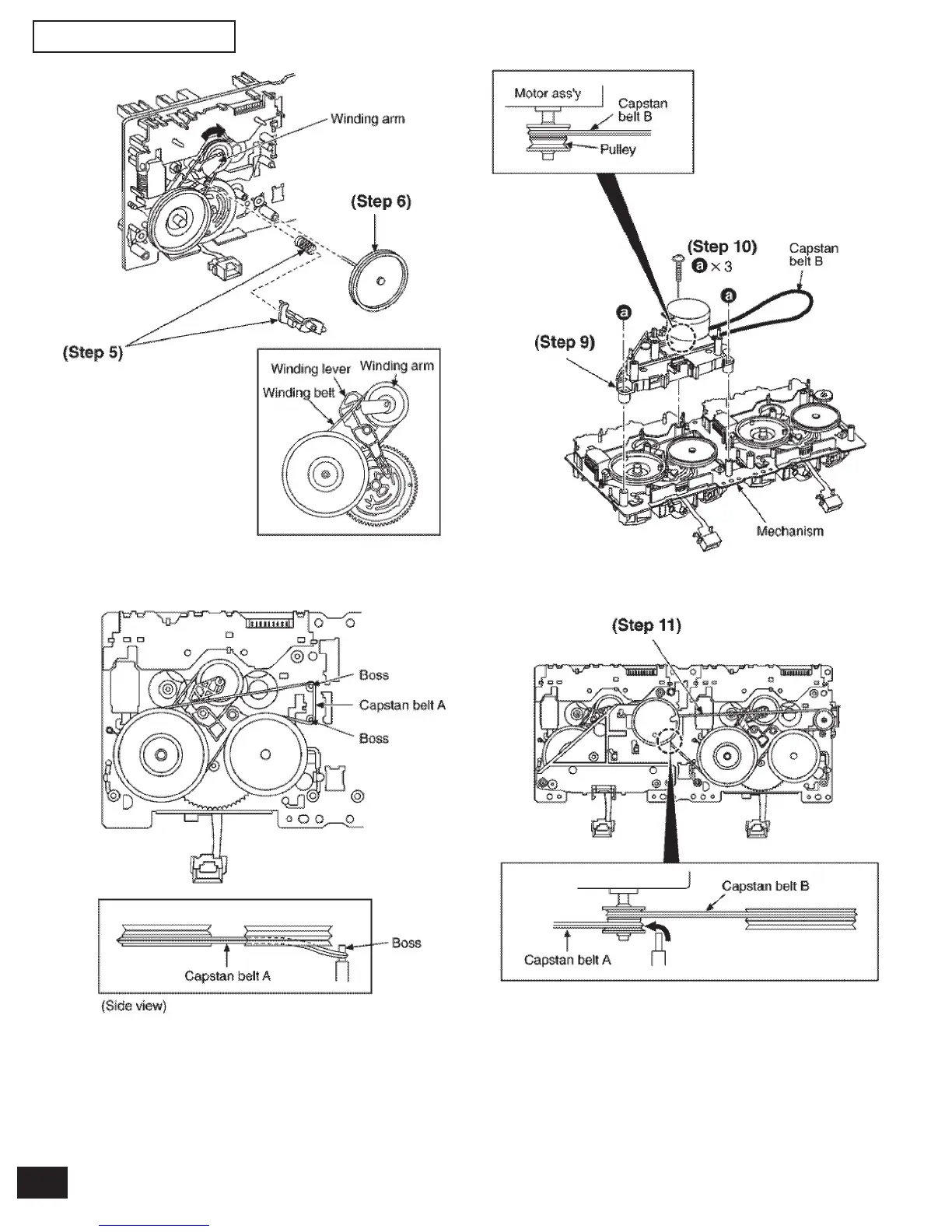

Step 8 Put the capstan belt B on the motor ass’y pulley.
Step 9 Installl the sub chassis to the mechanism, and then
lighten screws.
Step 10 Remove 3 screws.
Step 11 Put the capstan belt B as shown below.
Step 12 Put the capstan belt A on the motor ass’y pulley.
NOTE:
The winding lever should be positioned as shown below.
Step 7 Put the capstan belt A temporarily as shown below.
To Next Page
