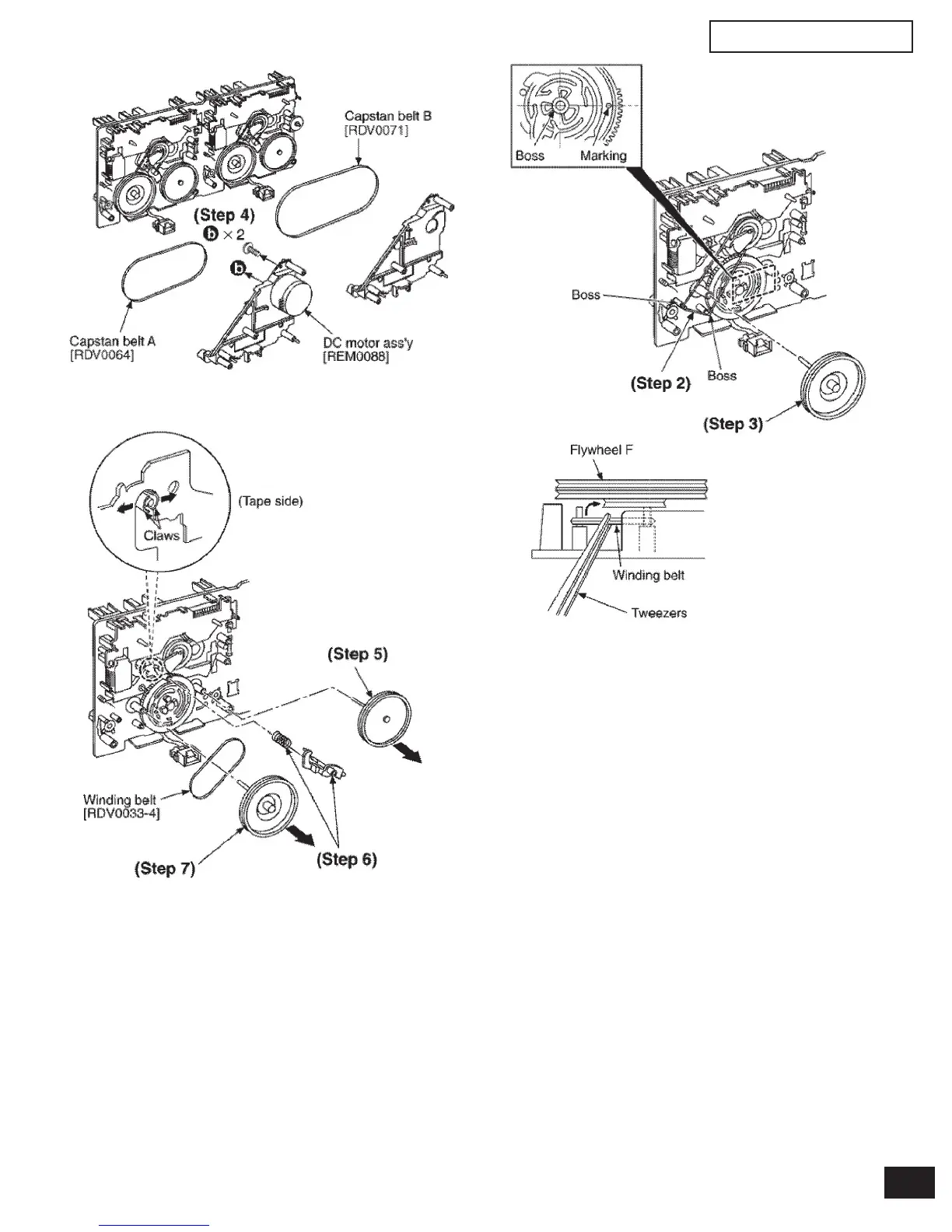

Step 5 Remove the flywheel R.
Step 6 Release the claw of tape side, and then remove the
winding lever and spring.
Step 7 Remove the flywheel F.
(Installation of the belt)
Step 1 The boss and marking should be positioned horizon-
tally.
Step 4 Remove 2 screws.
Step 2 Put the winding belt on the pulley temporarily.
Step 3 Install the flywheel F.
Step 4 Put the winding belt on the flywheel F.
Step 5 Install the winding lever and spring while pressing the
winding arm in the direction of arrow.
Step 6 Install the flywheel R.
