Panasonic SC-HM910 - Motor Assembly Replacement

SC-HM910/SC-HM810
24

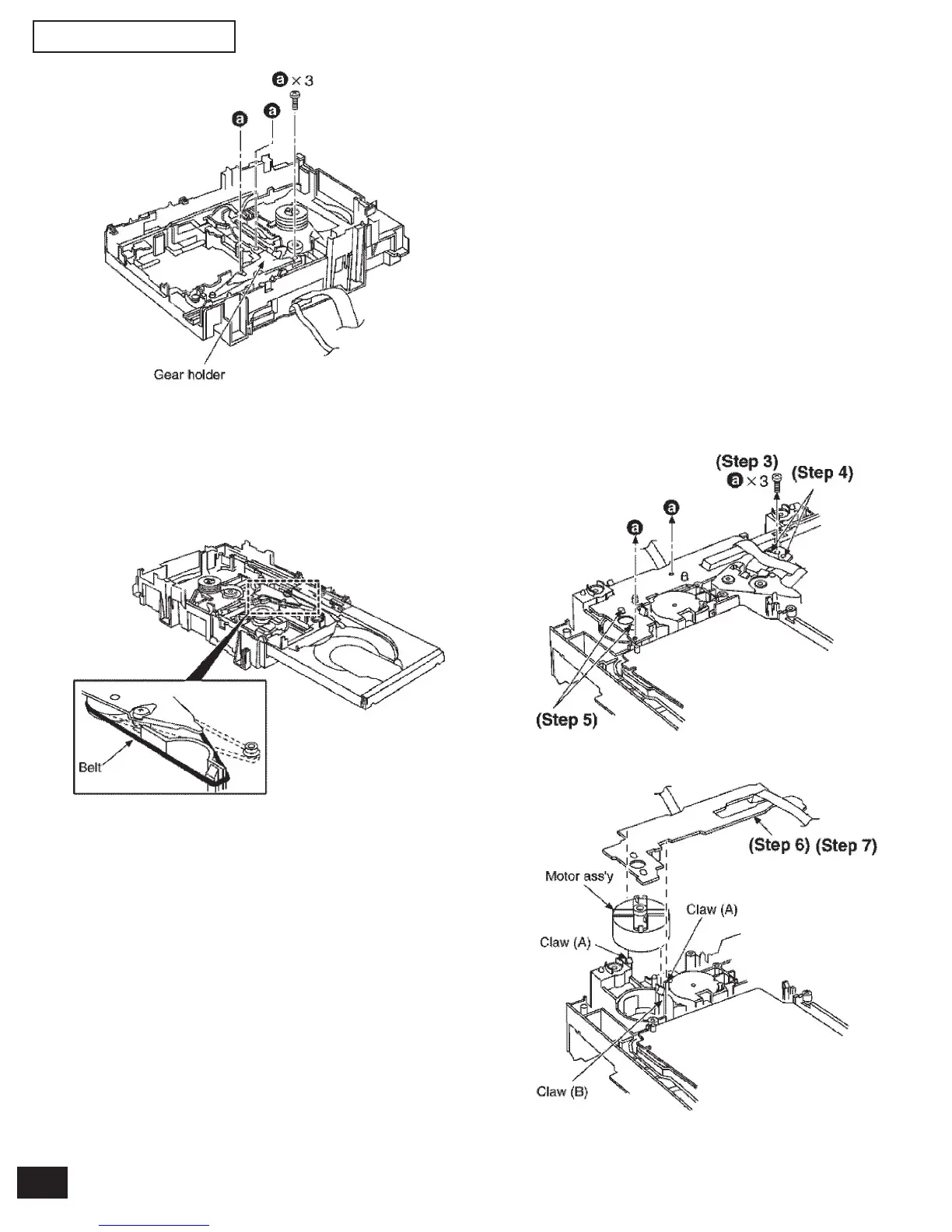

Step 1 Install the belt temporarily.
Note:
Take care not apply the grease to the belt.
Step 2 Upset the CD loading unit.
Step 3 Remove 3 screws.
Step 14 Install the tray base, traverse ass’y mechanism cover
and upper plate.
(operation check after servicing).
Check the proper operation of following items with gear and
hexagonal screwdriver.
1. Open/close of tray base.
2. Moving the tray base to the stock side.
3. UP/DOWN operation of spindle base unit.
4. UP/DOWN operation of traverse ass’y.
Step 4 Unsolder the plunger terminals (2 points).
Step 5 Unsolder the motor terminals (2 points).
Step 6 Release the 2 claws (A), and then remove the Motor
P.C.B.
Step 7 Release the claw (B), and then remove the motor ass’y.
(Notice for motor ass’y installation)
7.7. Replacement for the motor ass’y
• Follow the (Step 1) - (Step 2) of item 7.1.
• Follow the Disassembly for the CD Changer of item 7.2.
• Follow the (Step 1) - (Step 8) of item 7.4.
• Follow the (Step 1) - (Step 7) of item 7.5.
