Paradox Magellan MG5050 User Manual

47 Programming Guide
Data Entry & Display
There are two methods that can be used to enter data when in programming mode: Single Digit Data Entry and Feature Select
Programming methods:
Single Digit Data Entry Method
After entering programming mode, some sections will require that you enter decimal values from 000 to 255. Other sections will require
that you enter hexadecimal values from 0 to F. The required data will be clearly indicated in this manual. When entering the final digit in a
section, the panel will automatically save and advance to the next section. Refer to Decimal and Hexadecimal Values on page 47 to see
the keys and their equivalent decimal and/or hexadecimal value.
Feature Select Programming Method
After entering certain sections, eight options will be displayed where each option from [1] to [8] represents a specific feature. Press the
key corresponding to the desired option. This means the option is ON. Press the key again to remove the digit, thereby, turning OFF the
option. Press the [CLEAR] key to set all eight options to OFF. When the options are set, press the [ENTER] key to save and advance to the
next section.
Decimal and Hexadecimal Values
Value or Action What Do I Press?
What Do I See?
32-zone LED 10-zone LED
Value 0 / Replace Current
Digit with 0
[SLEEP] Erase digit and remain in section Erase digit and remain in section
Values 1 to 9 [1] to [9] Zone 1 to 9 Keys 1 to 9
A (hex only) [0] Zone 10 Key 0(10)
B (hex only) [
OFF] Zone 11 OFF
C (hex only) [
BYP] Zone 12 BYP
D (hex only) [
MEM] Zone 13 MEM
E (hex only) [
TBL] Zone 14 TBL
F (hex only)
[]
Zone 15
[]
Exit Without Saving [
CLEAR] ARM & STAY LED flash ARM & STAY LED flash
Save Data (hex only) [
ENTER] Advances to the next section Advances to the next section

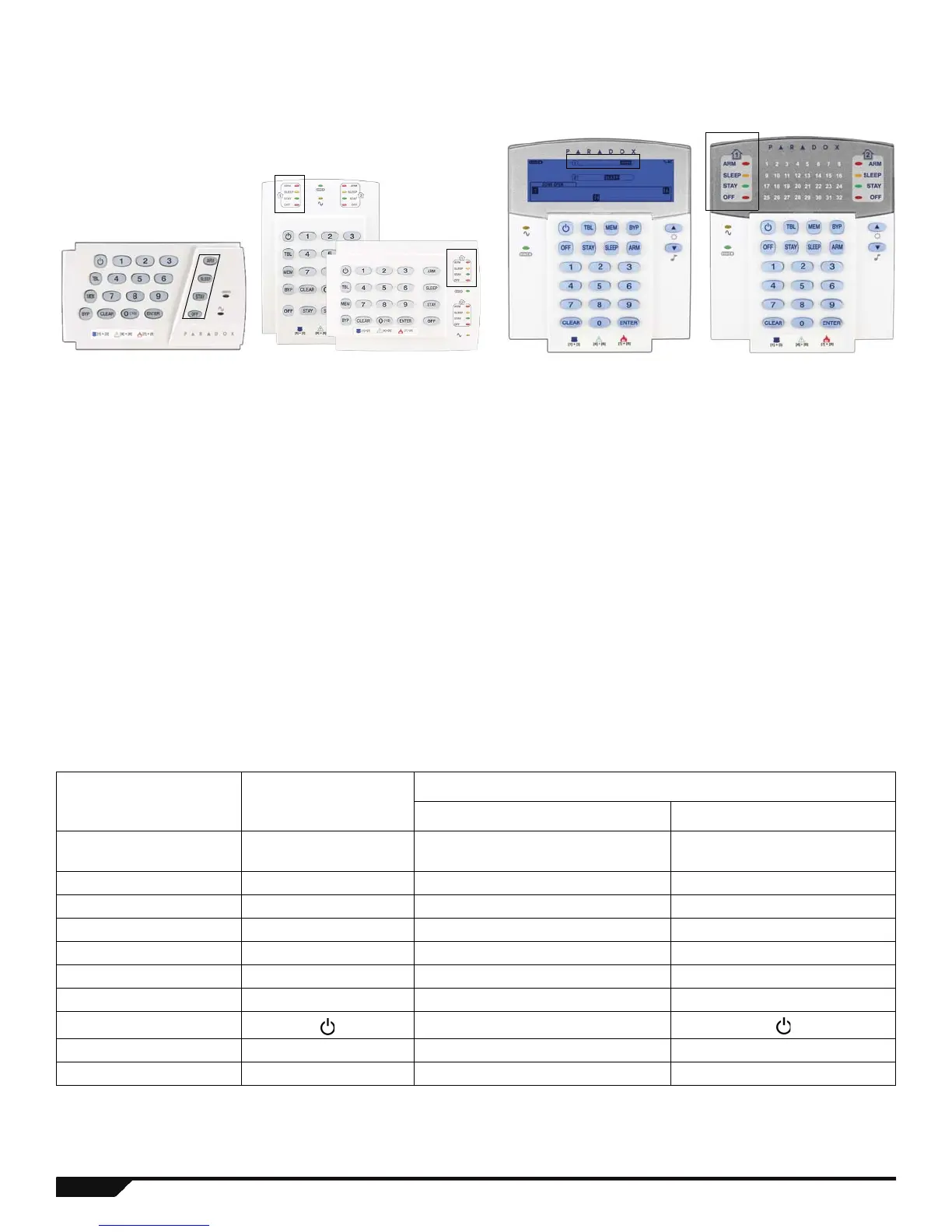

To access the Data Display Mode, press the [ENTER] key after entering a section and before entering any data. The four LEDs as
indicated below will begin to flash indicating that you are in the Data Display Mode.
Each time the [
ENTER] key is pressed, the keypad will display the next digit in the current section and will continue through all the
following sections one digit at a time without changing the programmed values. Not available for sections using the Multiple Feature
Select Method. Press the [
CLEAR] key at any time to exit the Data Display Mode.
K636 K10V/H
K32I/K32IRF/K32RF
K32

Paradox Magellan MG5050 Specifications

General

Partitions	2
User Codes	32
Event Buffer	256
Built-in Transceiver	Yes
Remote Control	Yes
Wireless Keypads	Yes
StayD Mode	Yes
Remotes	Up to 32
Power Supply	16.5 VAC
Zones	32
Battery Backup	7Ah
