Parker COMPAX-M /-S (L) User Manual

Accessories
External ballast resistors
197
Unit
hardware
Connector
assignment / cable
Technical dataConfigurationPositioning and
control functions
Optimization
functions
InterfacesAccessories /
options
StatusParameterError list

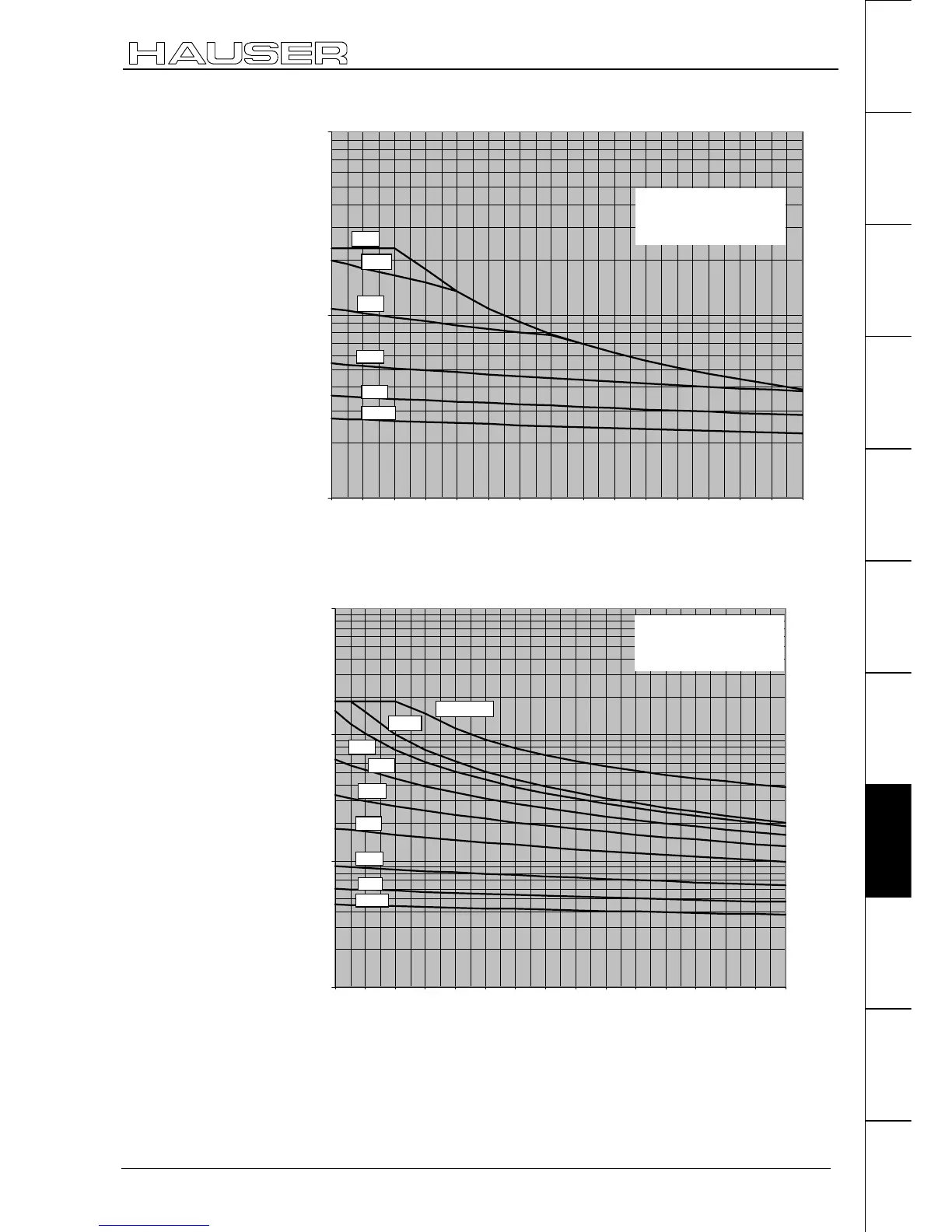

Authorized braking impulse power for COMPAX 2500S with BRM5/01
100
1000
10000
0,00,20,40,60,81,01,21,41,61,82,02,22,42,62,83,0
Braking time / s
Pbdyn / W
F=50
F=5
F=10
F=2
F=1
F=0.5
Authorised braking impulse power for COMPAX 4500S and
COMPAX 8500S
100
1000
10000
100000
0,0 0,2 0,4 0,6 0,8 1,0 1,2 1,4 1,6 1,8 2,0 2,2 2,4 2,6 2,8 3,0
Braking time / s
Pbdyn / W
F=50
F=5
F=10
F=2
F=1
F=0.5
F=100
single pulse
F=20
F: Factor
Cooling down time = F *
braking time
F: Factor
Cooling down time = F *
brakin
g
time
