Parker COMPAX-M /-S (L) - Page 198

Accessories and options
COMPAX-M / -S
External ballast resistors
198

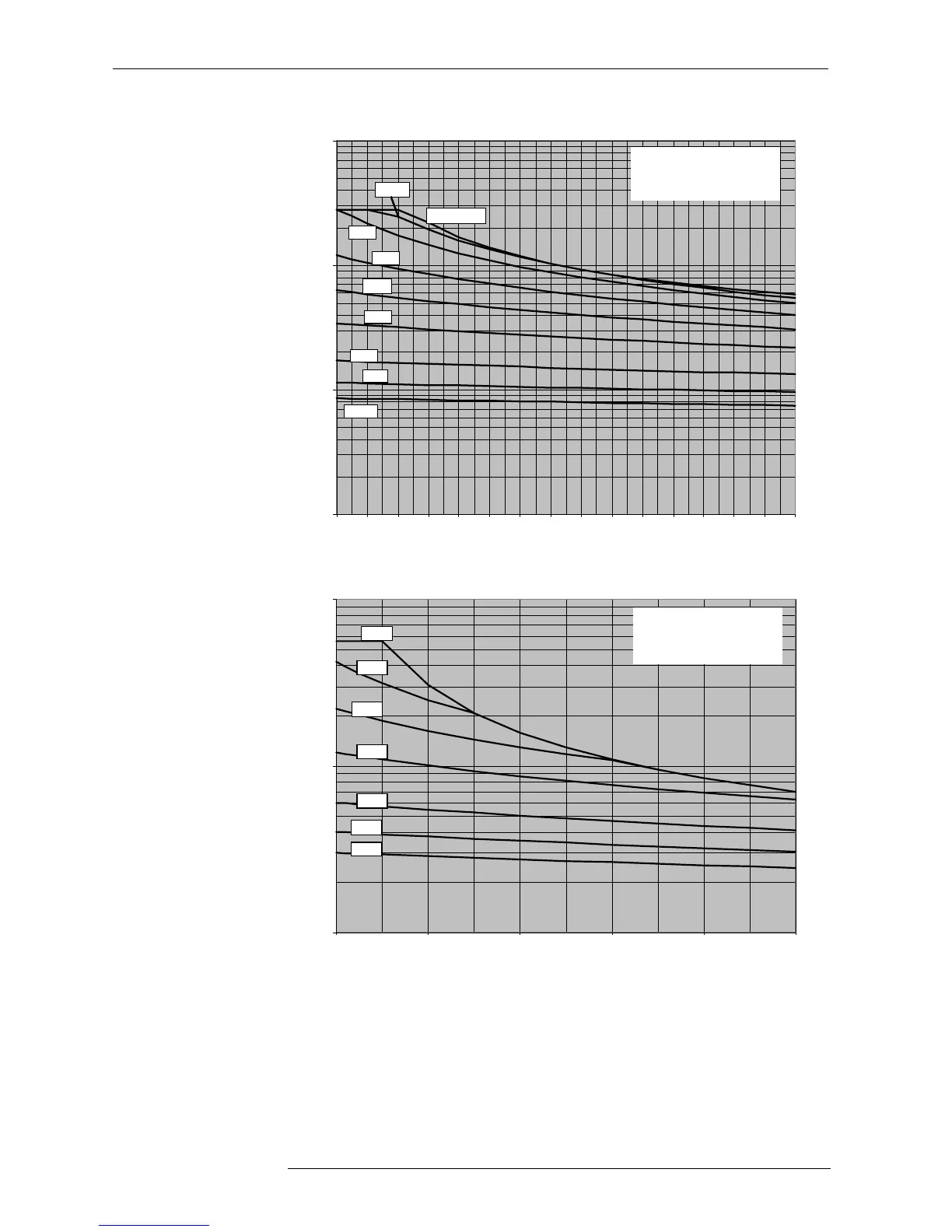

Authorised braking impulse power for COMPAX 4500S and
COMPAX 8500S with BRM 6/01
100
1000
10000
100000
0,0 0,2 0,4 0,6 0,8 1,0 1,2 1,4 1,6 1,8 2,0 2,2 2,4 2,6 2,8 3,0
Braking time / s
Pbdyn / W
F=50
F=5
F=10
F=2
F=1
F=0.5
F=100
single pulse
F=20
Authorised braking impulse power for COMPAX3500M with BRM7/01
1000
10000
100000
0,0 2,0 4,0 6,0 8,0 10,0
Braking time / s
Pbdyn / W
F=50
F=5
F=10
F=2
F=1
F=0.5
F=20
F: Factor
Cooling down time = F *
braking time
F: Factor
Cooling down time = F *
braking time
