Connections to the motor
49
Unit
hardware
Connector
assignment / cable
Technical dataConfigurationPositioning and
control functions
Optimization
functions
InterfacesAccessories /
options
StatusParameterError list

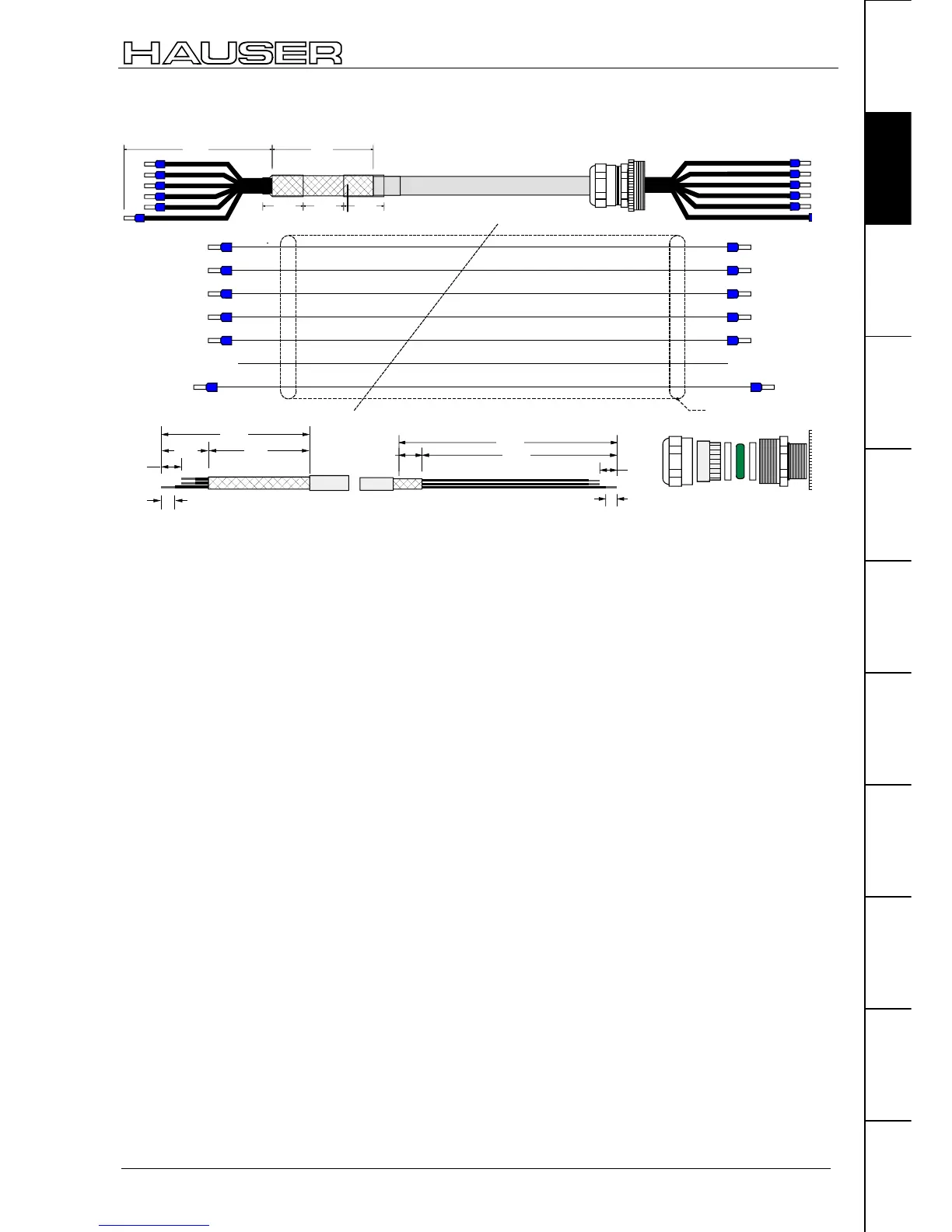

MOK21 (max. 18,9A)
CY-JZ 7x2,5
No. 102-508902
PE
Br. -24V
Br. +24V
W
V
U
PE
Br-
Br+
W
V
U
MOK21
30 mm30 mm30 mm
110 mm 75 mm
110 mm
75 mm
35 mm
15 mm
10 mm
190 mm
20 mm 170 mm
15 mm
10 mm
sw1/sw
sw2/br
sw3/bl
sw4/rt
sw5/gr
sw6
gn/ge
standard/hochflex
black1/black
black2/
brown
black3/blue
black4/red
black5/
green
black6
green-yellow
standard/highflex
Version in high-flex: MOK14 (same layout)
MOK11 (max. 32.3A) in high-flex (same layout to MOK21, however in 6 mm
2
)
MOK46 (max. 47.3A) in high-flex (same layout to MOK21, however in 10mm
2
)
Packaging
Packaging of device
Material:
6 x crimping sleeves.
6 cm shrink-fit hose.
Procedure:
•
Strip 110 mm sheathing off cable.
•
Cut sheath down to approx. 35 mm, loosen,
•
fold back over outer cover (approx. 75 mm) and stick with insulating tape.
•
Shorten sw1,sw2,sw3,sw4,sw5 ca. 15 mm (gn/ge approx. 15 mm longer) cut down sw6.
•
Attach 2 x approx. 30 mm shrink-fit hose (sticky).
•
Strip 10 mm of insulation off ends of wires and secure with crimping sleeves 2.5.
Packaging of motor in accordance with manufacturer's specification
•
Strip 190 mm sheathing of cable.
•
Cut sheath down to approx. 170 mm, stick remaining 20 mm with insulating tape.
•
Shorten sw1,sw2,sw3,sw4,sw5 by approx. 15 mm (gn/ge approx. 15 mm longer) cut down sw6.
•
Strip 10 mm of insulation of ends of wires and secure with crimping sleeves 2.5.
Shrink-fit hose
