Parker EX Series User Manual

118 – Pvd3665_Gb_Ex_August 2022

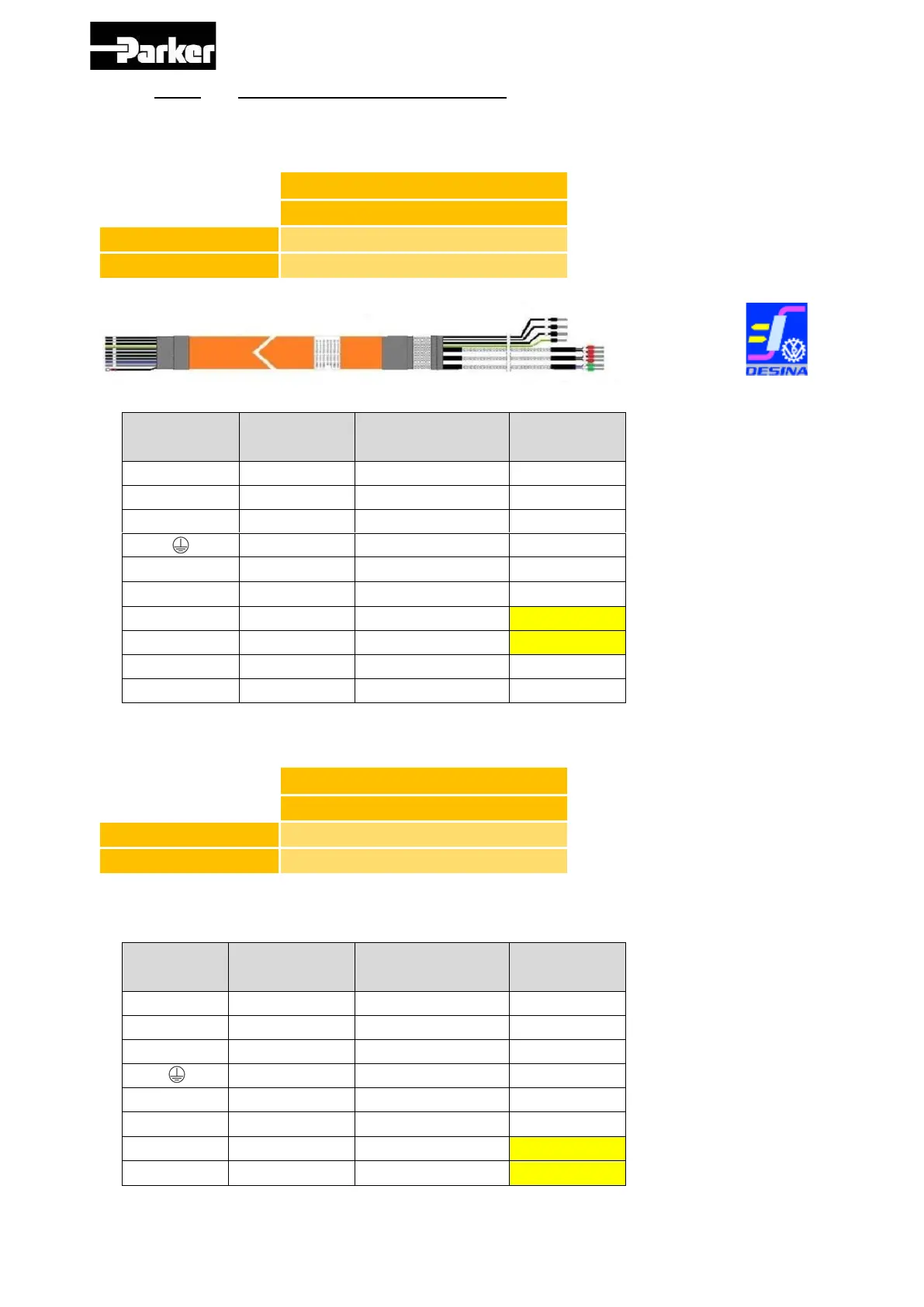

3.9.2. Power & Sensor cable for PSD
Cable for use with Hiperface DSL® feedback (single cable reference 100°C) :
Drive
Current - 12 A @40°C ambient t°
Current - 9 A @60°C ambient t°
PSD1S, PSD1M18
CBM015TD-T03-D01-xxxx-00
PSD1M (except M18)
CBM015TD-T03-D02-xxxx-00
(xxxx for length : 0100 = 10m)
Cable arrangement :
Motor terminal
blocks
identification
Wire colour
Drive terminal
blocks
U
U Phase
Black
M1 / U
V
V Phase
Black
M2 / V
W
W Phase
Black
M3 / W
Earth
Yellow / Green
PE
B+
Brake +
Black 5
1 / BR +
B-
Brake -
Black 6
2 / BR -
T+
Thermoswitch
Black 7
Main contactor
T-
Thermoswitch
Black 8
Main contactor
D+
DSL encoder +
White
DSL+
D-
DSL encoder -
Blue
DSL-
Power cable for use with resolver feedback (Cable reference 100°C) :
Drive
Current - 15 A @40°C ambient t°
Current - 12 A @60°C ambient t°
PSD1S, PSD1M18
CBM015TB-T04-D01-xxxx-00
PSD1M (except M18)
CBM015TB-T04-D02-xxxx-00
(xxxx for length : 0100 = 10m)
Cable Arrangement :
Motor
terminal
blocks
identification
Wire colour
Drive terminal
blocks
U
U Phase
Black
M1 / U
V
V Phase
Black
M2 / V
W
W Phase
Black
M3 / W
Earth
Yellow / Green
PE
B+
Brake +
Black 5
1 / BR +
B-
Brake -
Black 6
2 / BR -
T+
Thermoswitch
Black 7
Main contactor
T-
Thermoswitch
Black 8
Main contactor
