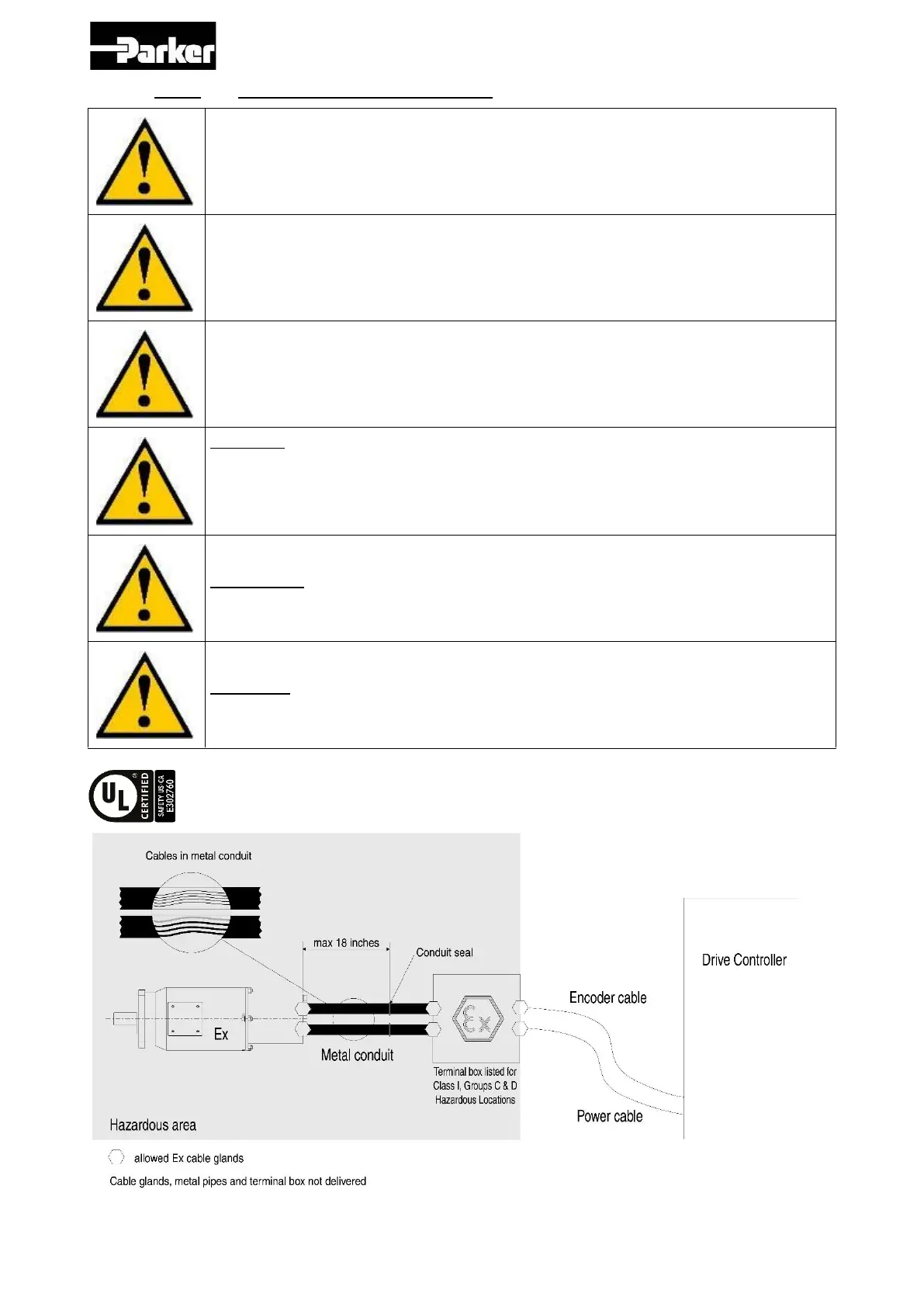

4.3.5. UL Electrical commissioning
The cables (Feedback or power cable) is a choice for end user and must
be conform local state regulations.
The end user will comply with local state regulations for his installation and
he will make the UL certification for his installation
The end user will determine which kind of connections and/ or conduits will
be used.
Warning : Installers use any wiring other than that shown in the diagrams in
§4.3.3. “Connection diagrams” at their own risk; Parker cannot be held
responsible for unauthorized wiring.
Make sure that the characteristics of the contactors shown in these
diagrams are strictly followed according to the drive current
CAUTION : the drive associated with the motor must be outside the
explosive area (hazardous area).
Warning : the conduit seal must be required within 18 inches of the motor.
Connection of the UL motor:
