Parker EX Series User Manual

111 – Pvd3665_Gb_Ex_August 2022
3.8.8. EX6-EX8 UL connection
3.8.8.1. Connection of the feedack and power cable with terminal:

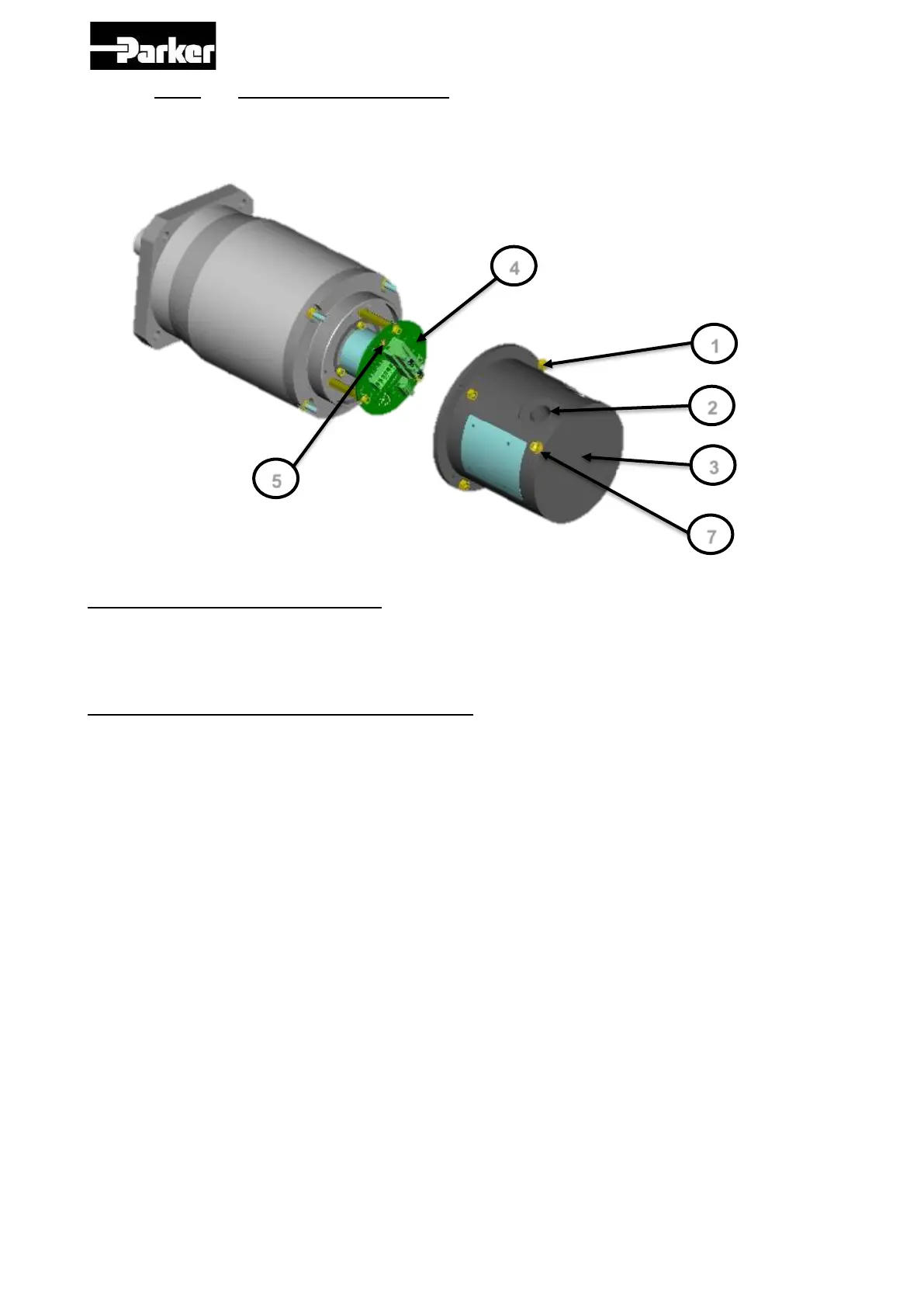

Step 1 – Remove the rear cover :
1. Unscrew the 4 nuts Ref 1.
2. Unscrew the cable gland caps Ref 2.
3. Remove the cover Ref 3.
Step 2 – Connection of the feedback cable :
1. Insert the cable in the cable gland Ref 2.
2. Strip the wires on 3 mm.
3. Put the wires in the terminals on the PCB Ref 4 and tighten each screws at the
torque value of 0,6 N.m.
4. Make the shielding connection with the connection of the terminal on the screw M4
Ref 5 at the torque value of 2,5 N.m.
5. If the shielding connection is not necessary, cut the wire short the cable.
2
1
3
4
5
7
