Control system
Throttle push-pull cable

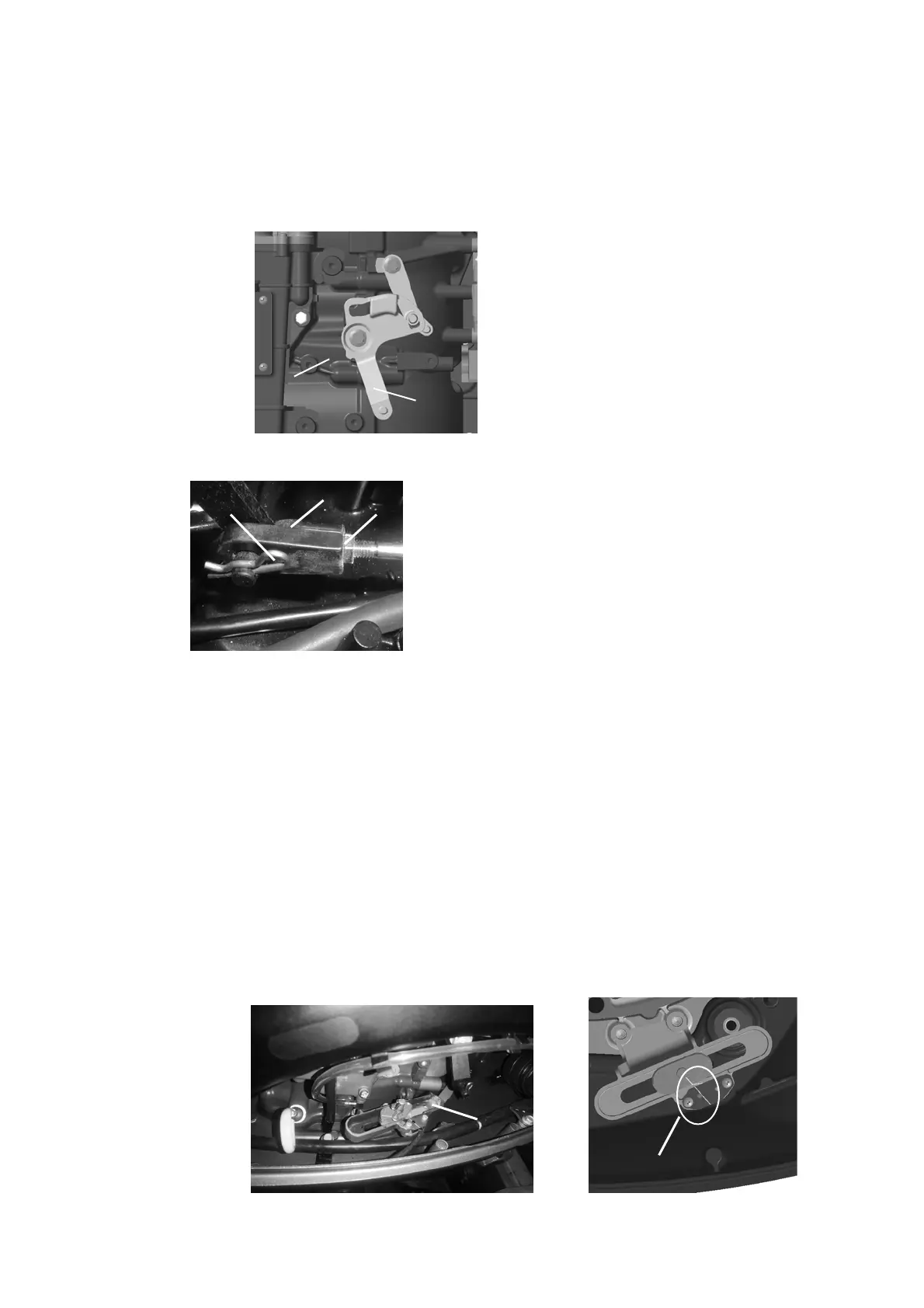

1. Please put the shift lever to the neutral position for the front operating model.
2. Check the contact between the throttle actuator driving pulley and the box. If there is no
contact between the throttle actuator and the box, adjust the screw-in length of the
control cable joint.
1. Box; 2. Throttle actuator driving pulley.
3. Remove the cotter pin, remove the push-pull cable joint, and loose the lock nut of the
push-pull cable joint.
1. Cotter pin 2. Push-pull cable joint; 3. Lock nut
4.Adjust the screw-in depth of the joint so that the joint hole is aligned with the pin of the
throttle actuator driving pulley.
Note:
The push-pull cable joint must be screwed in more than 8 mm.
5.Mount the cotter pin and tighten the lock nut.
Shift operation
1. Check whether the shift operation is smooth;
2. Please put the shift lever to the neutral position.
3. Observe that the mark on the shift slider of the swing rod is aligned with the mark on the
microswitch.
1.Throttle swing rod seat； 2. Mark.
