Check valve clearance
Please measure the valve clearance when the engine is cold.
Note:
Don't turn the flywheel counterclockwise. Otherwise, the valve mechanism will be damaged.
1. Remove the spark plug.

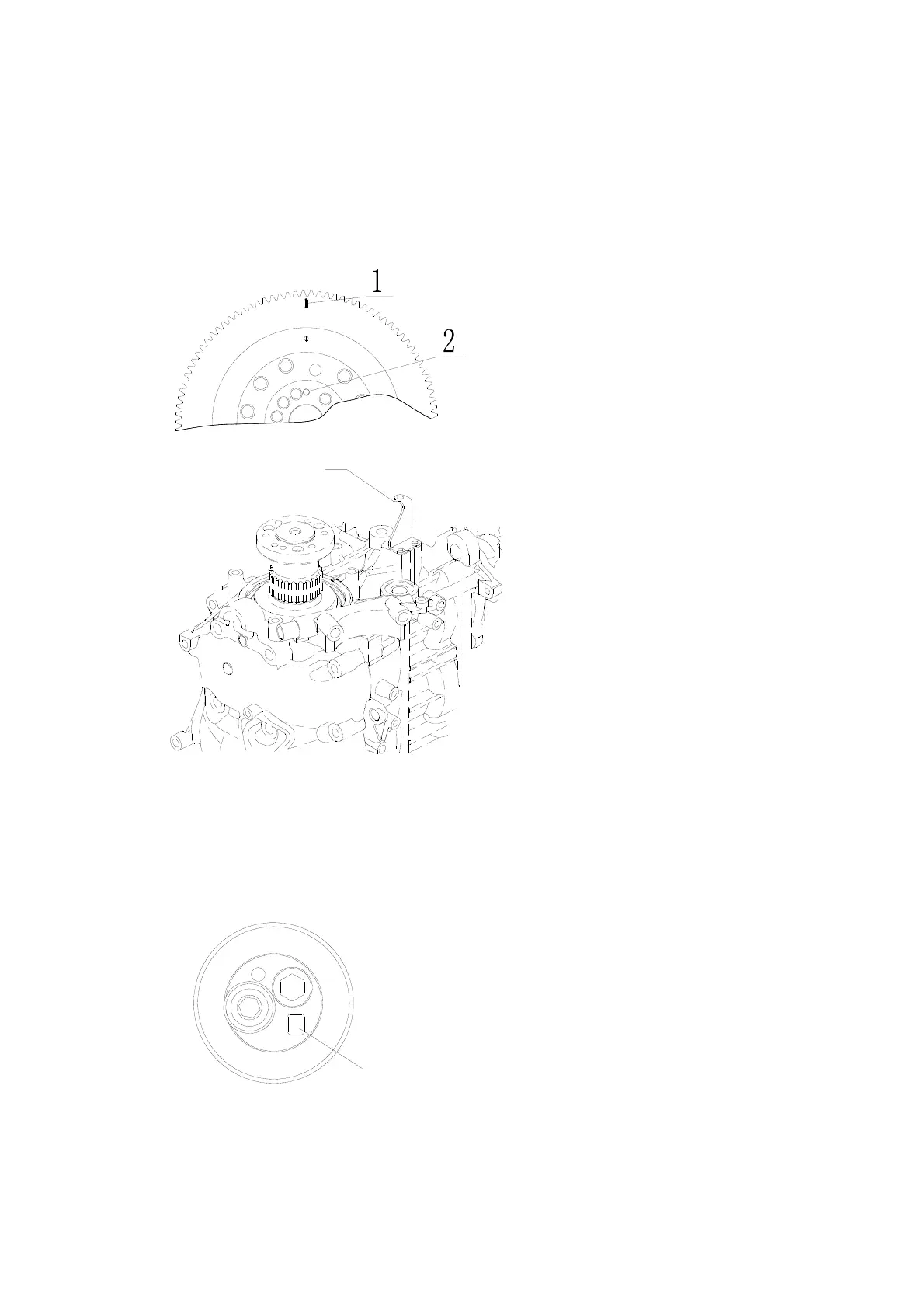

2. Turn the flywheel clockwise until the mark on the flywheel is aligned with the indicator
mounted on the box, making sure that the " " marks on the two driven pulleys are opposite.
1. Timing mark; 2. Pin hole.
3
3. Ignition indicator
3. Turn the timing belt tensioner with a hexagon wrench clockwise and insert a 5mm pin into
hole A
on the tensioner.
Note:
Turn the tensioner with a force less than 15Nm.
A
4. Remove the timing belt.
5. Remove the tensioner assembly.
Note:
Do not pull out the 5mm pin
