Patchwork Technology BlackBox Advance - Connecting a Switch to Control Coverage Area Recording

10
Fitting Instructions
...Connection Diagrams

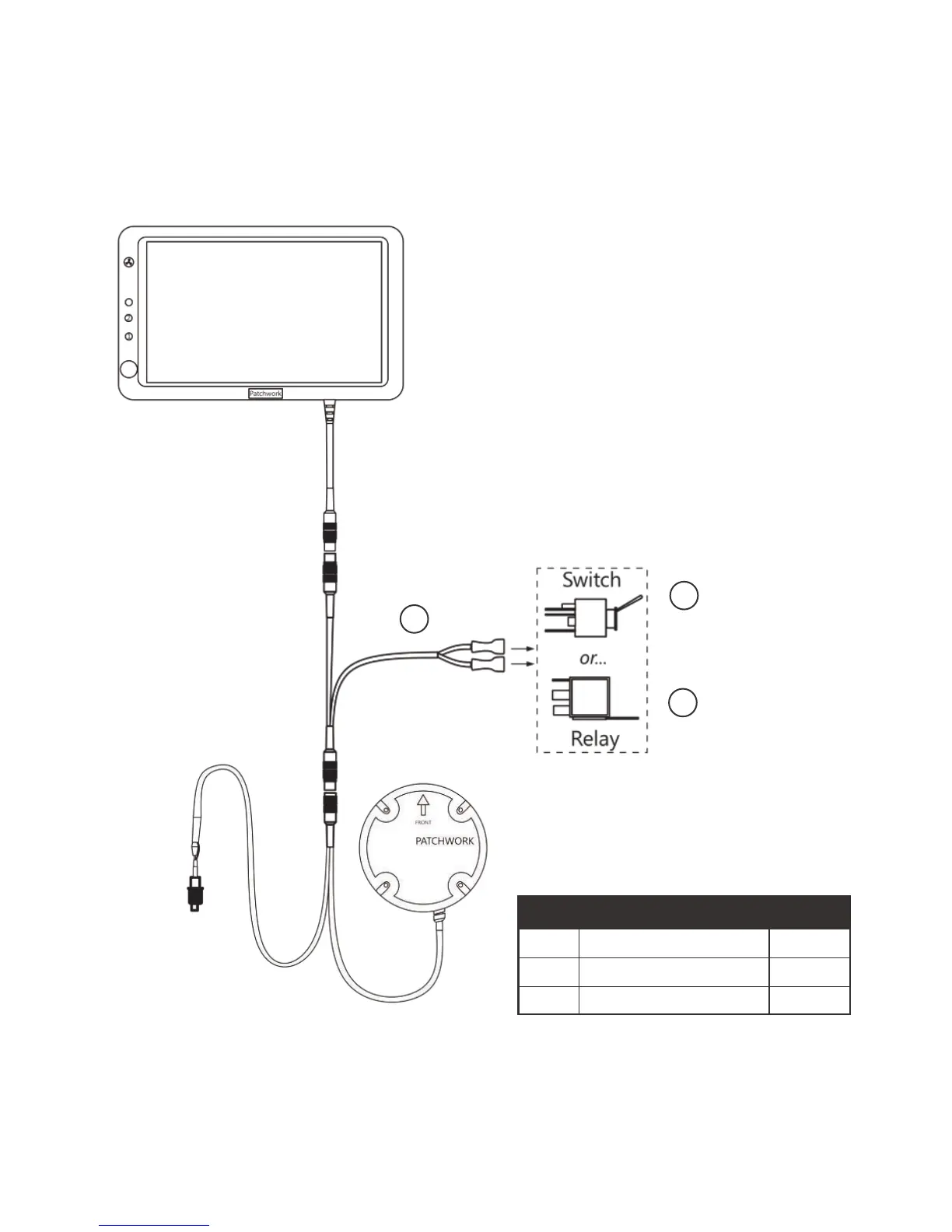

Connecting a switch to control area coverage recording
The BlackBox will need to be configured to work correctly with the switch, for
details see Ports Setup menu ‘On/Off’ on page 26.
1
2
3
Ref Description Part No.
1 Boom Sense Cable 03-05-0006
2 Switch (request when ordered) N/A
3 Relay (request when ordered) N/A
