Patchwork Technology BlackBox Advance - Connection Diagram

9
.
Fitting Instructions

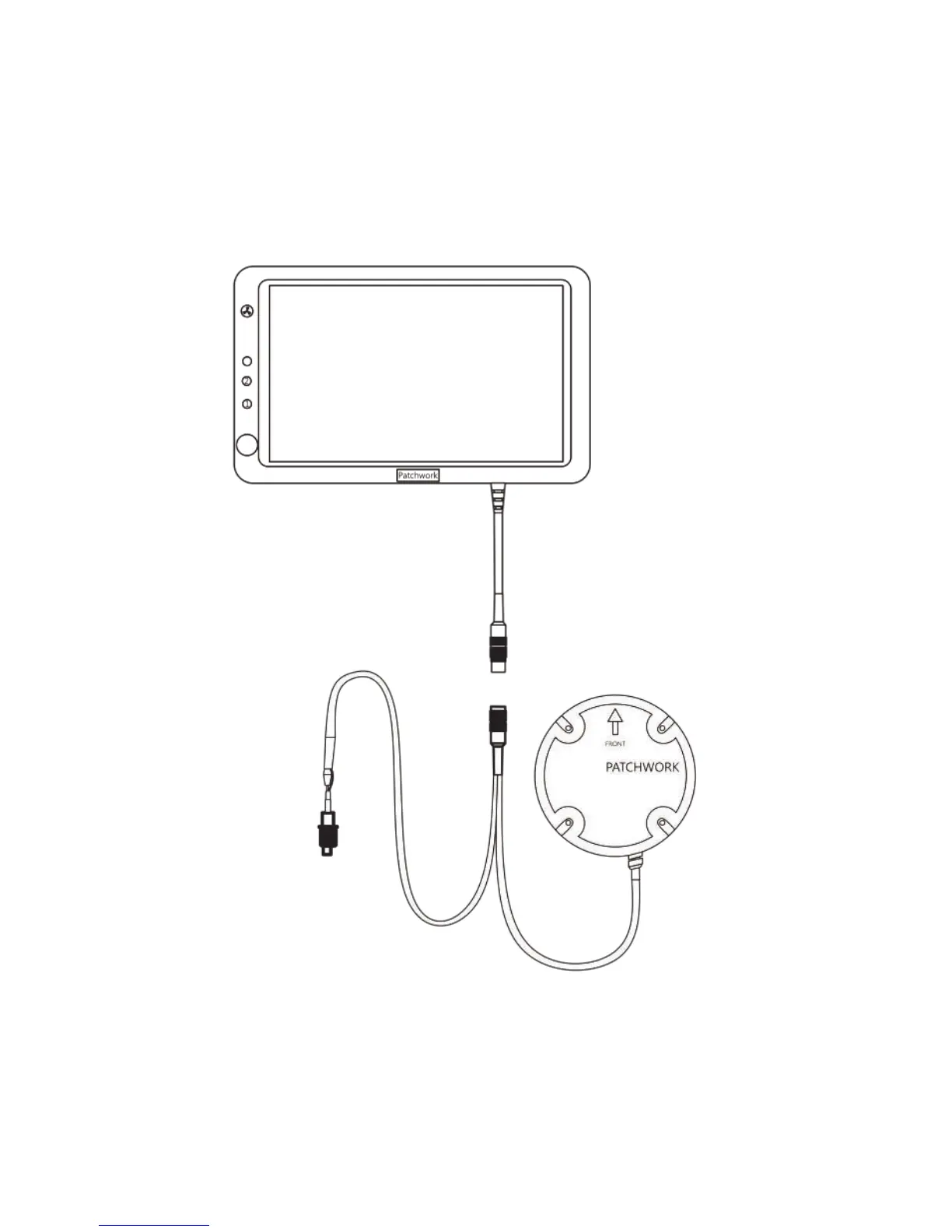

Connection Diagram
Main Unit
Warning - Please disconnect the unit from the power supply, if
you need to jump start your vehicle.
Guidance Screen
12v DC Plug
To 3-pin socket on
vehicle.
Receiver
