First Time Installation

Please take care to situate the unit on a flat and firm surface. Do not cover

the air intakes of the unit. Please ensure free airflow around the

pco.aquamatic to ensure maximum cooling performance. All tubes and

power cords need to run kink-free.

Before installation of the unit carefully read the accompanying Innovatek

Protect IP safety datasheet!

Please follow steps 1 – 6.

outlet flow inlet flow

The cooling liquid reservoir (tank) is filled when liquid level is approximately

1-2 cm from the top edge of the tank (see inside mark). The integrated

pump only works when the pump chamber is completely filled. To ensure

this please move hoses or remove air by evacuating. Reservoir capacity is

approximately 500 ml.

After steps 1 – 6 are completed successfully the system is ready for

operation.

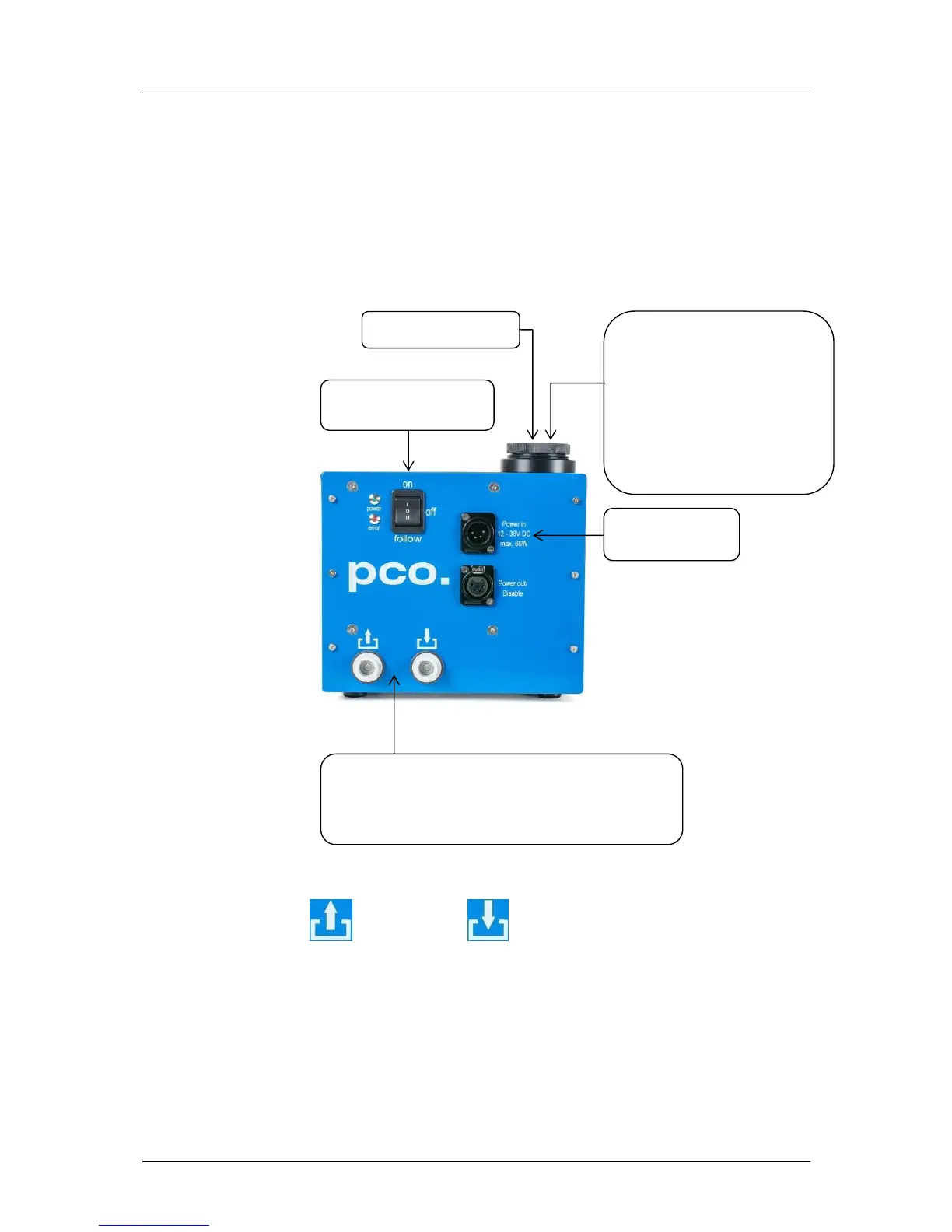

1. Connect tubes to cooling unit and camera. The

two arrows on the housing of the cooling unit only

indicate flow direction. Either connection of the

camera can be used for in or out.

2. Attach power

connection.

3. Open tank cover.

4. Turn power switch

to on position (I).

5. Slowly fill in the cooling

application mixture while the

unit is running.

While the cooling liquid

flows back to the reservoir

make sure that the whole air

escapes from the system

(move hoses if necessary).
