EasyTouch Control System User’s Guide
AUTO HEATER
SPA 100°F / 95°F
AIR 70°F
MON 09:30 AM
12
11
13
EasyTouch
®
Control System Outdoor Control Panel
You can fully automate your pool, spa, and lighting operations from the EasyTouch control system outdoor
control panel or from the optional EasyTouch control system indoor control panel and EasyTouch wireless
control panel. The EasyTouch control system menu features let you create customized schedules for your pool
and spa equipment, heat temperatures, and chlorination settings to switch on and off at a set day and time.
Scheduled automatic operations can be performed at either the outdoor control panel, the optional indoor control
panel and wireless control panel. For maintenance and service purposes, the outdoor control panel button allows
manual control of all pool and spa operations. For menu options, refer to “EasyTouch Menus,” on page 14. The
following describes the outdoor control panel buttons, and LED indicators.
EasyTouch Conrol System Controls and Buttons
Liquid Crystal Display (LCD): The main system display consists of a 16 x 4 alphanumeric character
LCD with EL backlighting for easy viewing of the menu items and status messages. Press the Menu
button twice to refresh the display.
Up/Down buttons: Use the Up and Down buttons to scroll through the main menu items and to
adjust or change settings. Use these buttons after pressing the Menu button to access the main menu
items. While editing settings, press and hold the Up or Down button to fast forward or fast reverse
through settings and values.
Left button: When in pool or spa mode use the Left and Right button to adjust the temperature level.
Press the Left button to lower the set point water temperature. Press the Filter Pump (F) button to
display the current water temperature. Use the Left button to scroll through sub-menu selections,
setting and values. While editing settings, press and hold the Left button to fast reverse through
settings and values.

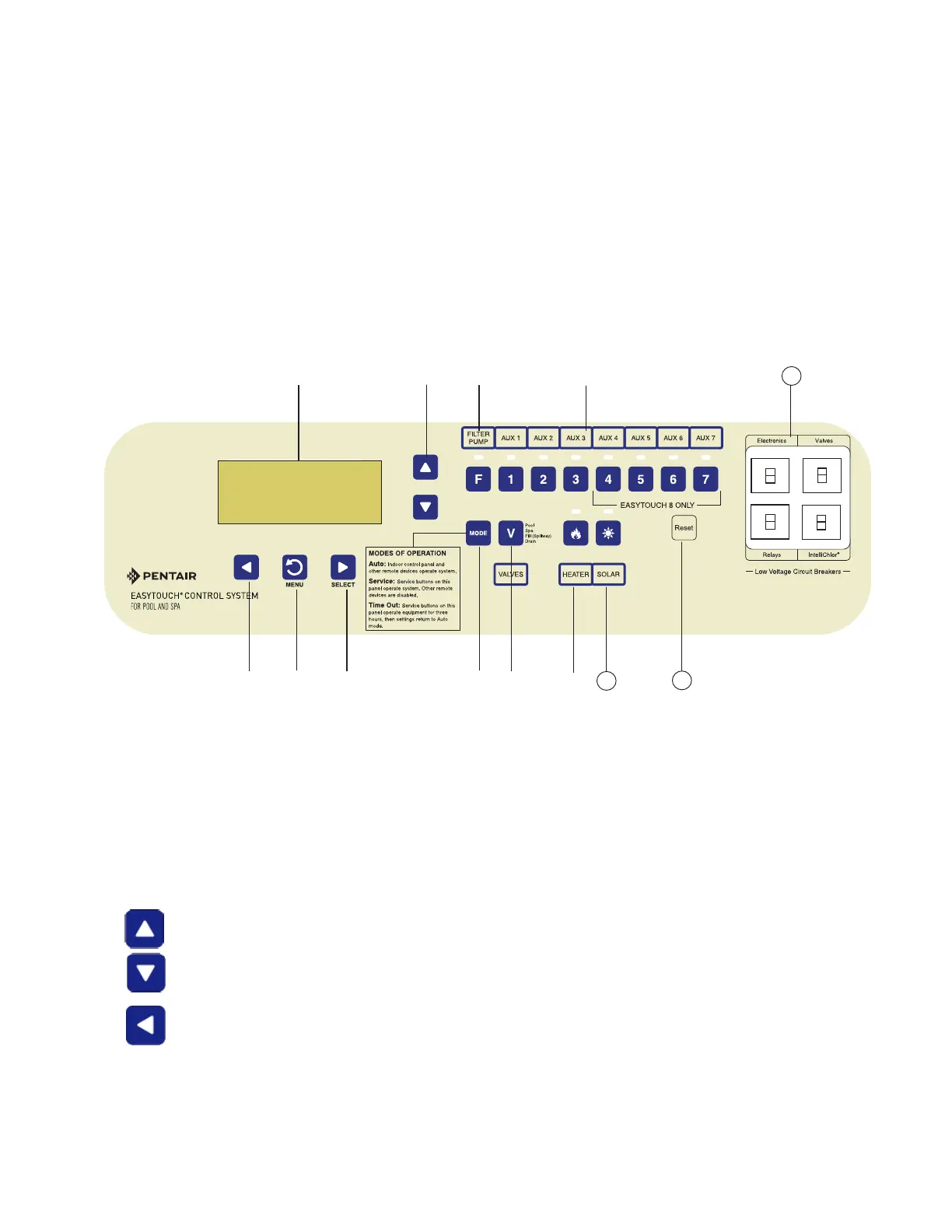

EasyTouch Control System (8 AUX) Outdoor Control Panel
P
Q
R
S
T
U
V
M
O
M
N
O
N
