76570EM 10

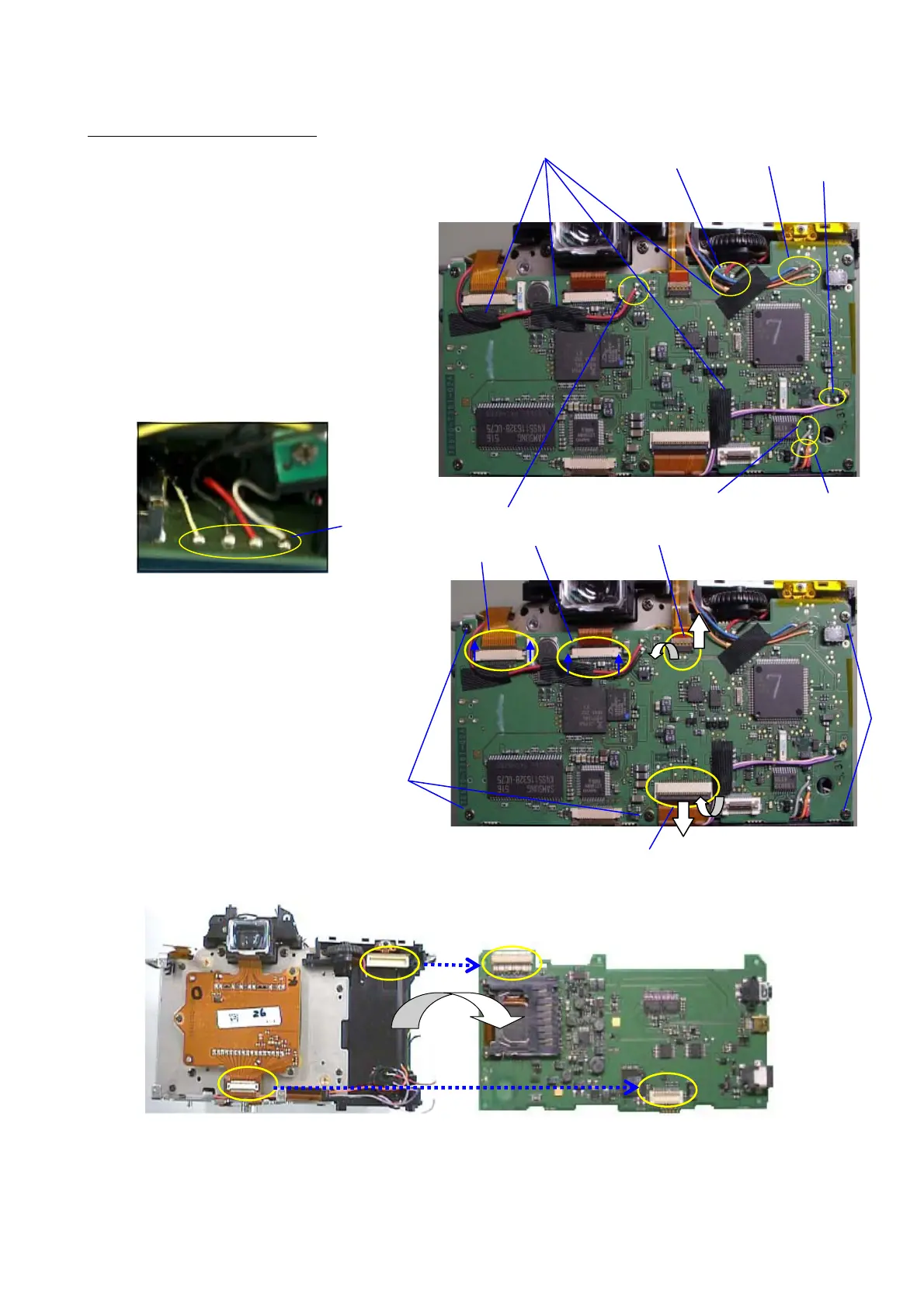

7. 0-T100 (Main PC board)
(1) Black Tape (6x15) x4
(2) Lead wire x2 (Red, Black / Q200)
(3) Lead wire x2 (Red, Black / A14,A105)
(4) Lead wire x3 (Blue,Brown,Orange/ T200)
(5) Lead wire x2 (Pink, Purple / G100)
(6) Lead wire x2 (Gray, Orange / S300)
(7) Lead wire x2 (Red, Black / S250）
(8) Lead wire x2 (Yellow, Black / T10)
Lead wire x2 (Red, White / N300)
--- Reverse side of PC board on grip side
(9) Disconnect T950 flex from connector.
(Slide lock connector)
(10) Disconnect T600 flex from connector.
(Slide lock connector)
(11) Disconnect J100 flex from connector.
(Flip lock connector)
(12) DisconnectＴ901 flex from connector.
(Flip lock connector)
(13) TY-CNL-D1.7x4.0 x2
(14) CNL-D1.7x2.5 x3
(15) Remove 0-T100 while disconnecting T200 connector and T600 connector. (Plug-in type)
①
②
③
⑦
④
⑤
⑥
⑧
⑨
⑩
⑫
⑪
⑬
⑭
0-T100
