76570EM 1
1

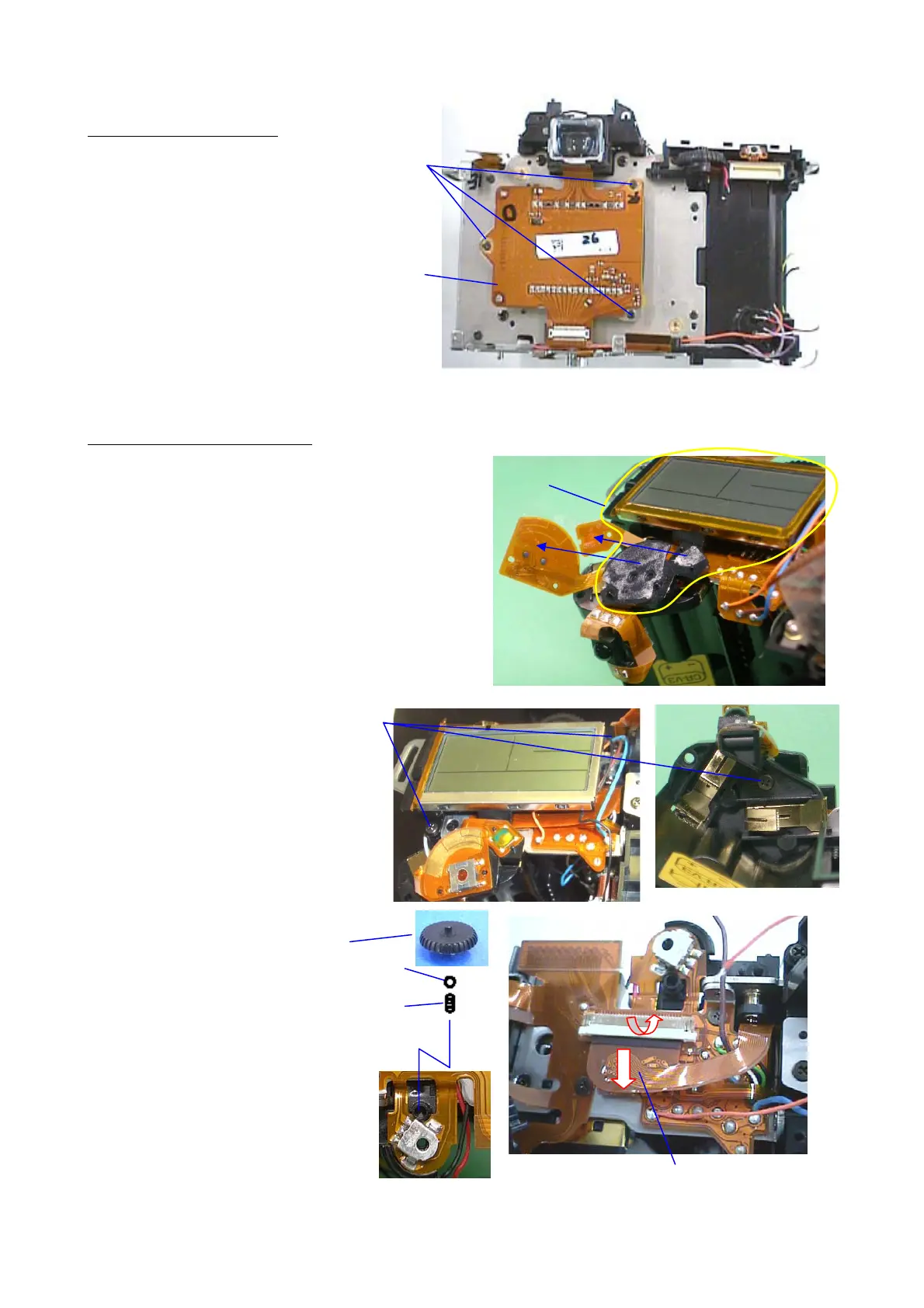

8. 0-T600 (CCD block)
(1) CNL-D1.7x2.5 x3
(2) 0-T600
[Note]
After removing 0-T600, attention to
shutter curtain for handling
9. LCD block (LCD Panel)
(1) Peel off release SW flex and
A
v SW flex from
double stick tape.
(2) TY
-CNL-D1.7x4.5 x3
(3) A335
(4) BO2.0
(5) A17
(6) Peel off the flex from C
onnector
LCD block
①
②
②
④
⑤
③
⑥
11
13
Table of Contents
Table of Contents
2
Preparation
3
Preparation for Digital Adjustment
3
Disassemby and Assenbly
4
Outline of Disassembly and Assembly
4
Caution
4
Chart for Assemble, Adjustment and Confirmation
4
Disassembly and Assembly Procedures
7
Disassembly Procedure of Main Body
7
Front Housing Block
15
Assembly and Disassembly Procedure of Front Housing Block
16
0-G100
18
A104
19
M301
21
0-O100
22
Preparation
23
Adjustment
24
0-S300
25
0-J100
25
Assembly Procedure of Main Body
26
0-E000 (Shutter Block)
27
Front Housing Block
27
A6 (Left Shoulder Plate)
28
T901 (Lower Flex Board)
28
Preparation
30
Adjustment
31
0-T600 (CCD Block)
32
Preparation
34
Setting Test Mode
36
Shutter Release and Exposure
36
Af Function
36
A201 (Back Cover)
37
A150 (Front Cover)
38
A161 (Forward Right Cover)
38
[Adjust] Positioning 0-J100
38
0-A301 (Top Cover)
39
Preparation
40
Setting of Computer
44
Setting of *Istds
45
Procedure of Wdc Adjustment
45
A401 (Bottom Cover)
49
Confirmation of the Metering Function
50
Confirmation of the Exposure Value (for Reference)
50
Confirmation of White Balance
51
Confirmation of the Battery Exhaustion Warning
52
Confirmation of Af Focus Position by Taking Picture
52
Default Setting
54
Fw Firmware
55
Checking Firmware Version
55
Updating Firmware Version (1)
55
Updating Firmware Version (2)
56
Technical Information
57
Battery Consumption Current
57
Block Diagram
58
Table of Error Code (Digital Adjustment)
59
AE Program Line and APEX Chart (ISO 200)
60
PROGRAM SOFTWARE FLOW CHART (SLR Function)
61
Information of Jigs, Tools and Testers for *Istds
68
Table of Jigs, Tools and Testers
68
Method for Making Temporally Bottom Cover
70
Method for Making Flash Pop-Up Tool
70
AF Confirmation Chart and Scale
71
