5.3 PePLink Balance 380

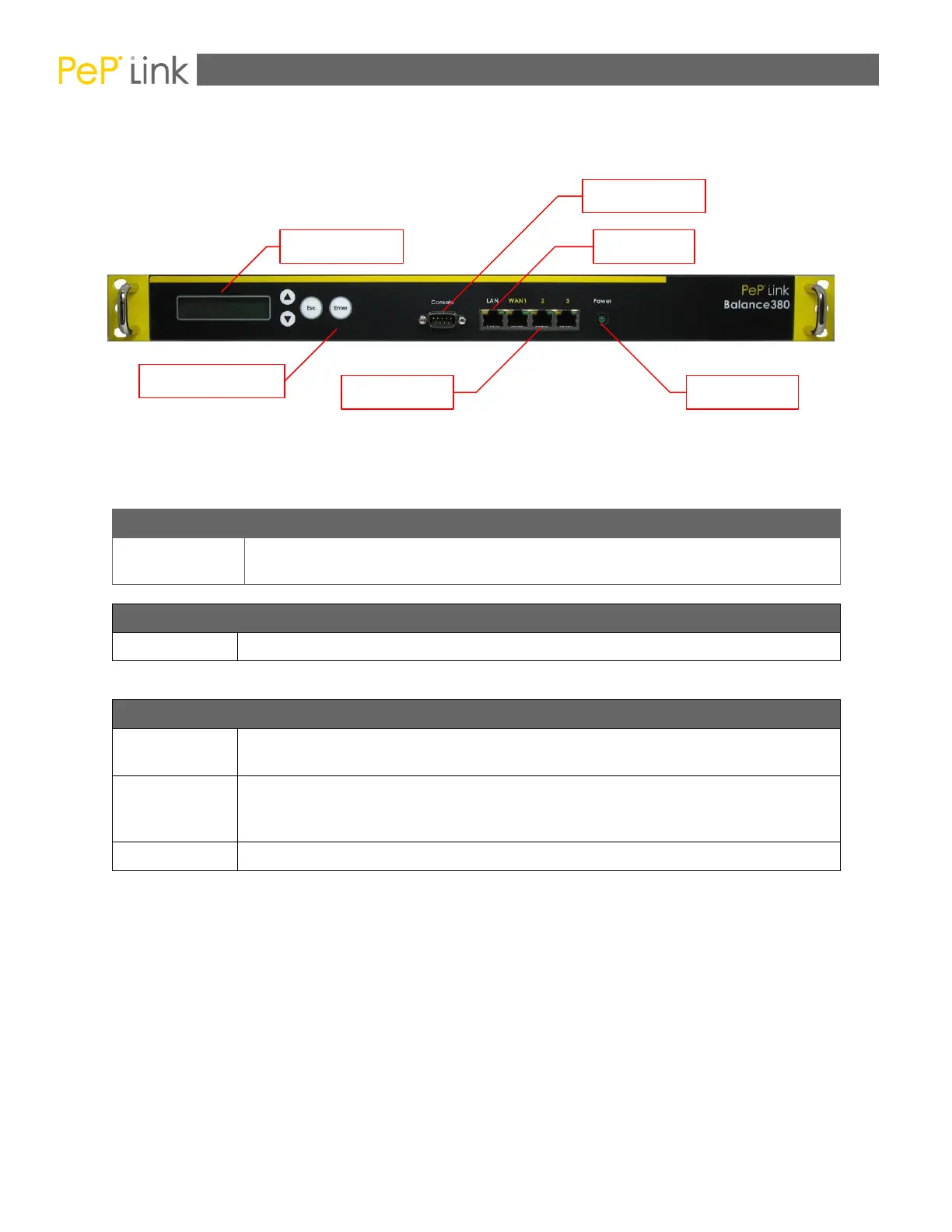

5.3.1 Front Panel Appearance
5.3.2 LED Indicators
The statuses indicated by the Front Panel LEDs are as follows:
Power and Status Indicators
Power LED
OFF – Power off
Green – Power on
RS-232 Port
RS-232 Port
Reserved for Engineering Use
LAN and WAN Indicators
Green LED
ON – 100 Mbps
OFF – 10 Mbps
Yellow LED
Solid – Port is connected without traffic
Blinking – Data is transferring
OFF – Port is not connected
Note:
They are MDI ports
LCD Display
RS-232 Port
RS-232 Port
LCD Controls
LAN Port
RS-232
Port
Power LED
WAN Ports
