PePLink Balance Series v4.0 User Manual
Page 14
5.4 PePLink Balance 700

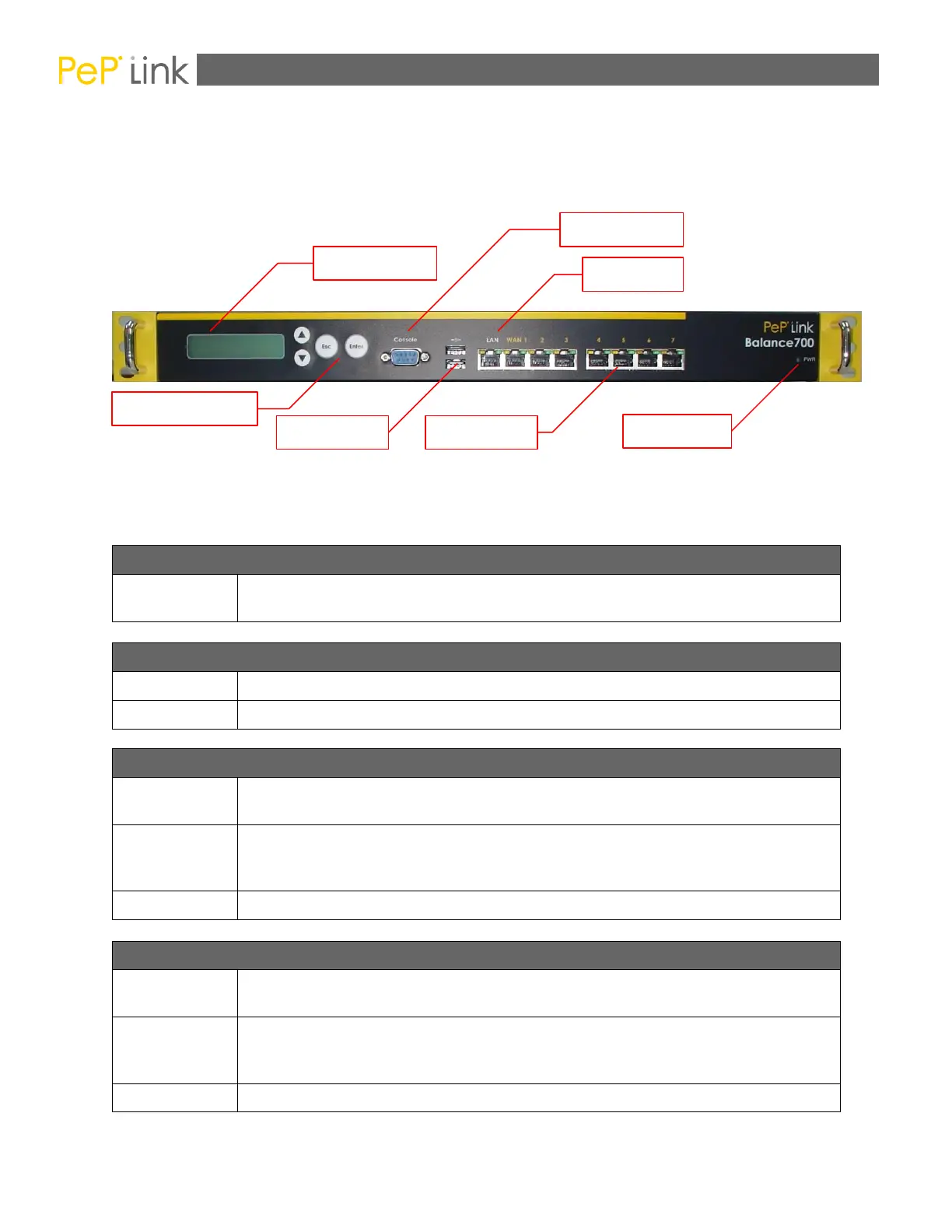

5.4.1 Front Panel Appearance
Status indicated in the Front Panel is as follows:
RS-232 & USB Ports
RS-232 Port
Reserved for Engineering Use
USB Ports
Reserved for Engineering Use
LAN Port and WAN Ports 1 to 3 (Gigabit Ethernet)
Green LED
ON – 1000 Mbps
OFF – 100/10 Mbps
Yellow LED
Solid – Port is connected without traffic
Blinking – Data is transferring
OFF – Port is not connected
Note:
They are auto MDI/MDI-X ports
WAN Ports 4 to 7 (Fast Ethernet)
Green LED
ON – 100 Mbps
OFF – 10 Mbps
Yellow LED
Solid – Port is connected without traffic
Blinking – Data is transferring
OFF – Port is not connected
Note:
They are MDI ports
LED Indicator
Power LED
OFF – Power off
ON (Green) – Power on
LCD Display
RS-232 Port
RS-232 Port
LCD Controls
USB Ports
LAN Port
RS-232
Port
WAN Ports
Power LED
