AS-i 3.0 PROFIBUS Gateway in Stainless Steel
Electrical connection
26.9.2013
23
7.2 AS-i bus connection
7.3
7.3.1 Information about the device types
7.4 AS-i and power supply terminal assignments

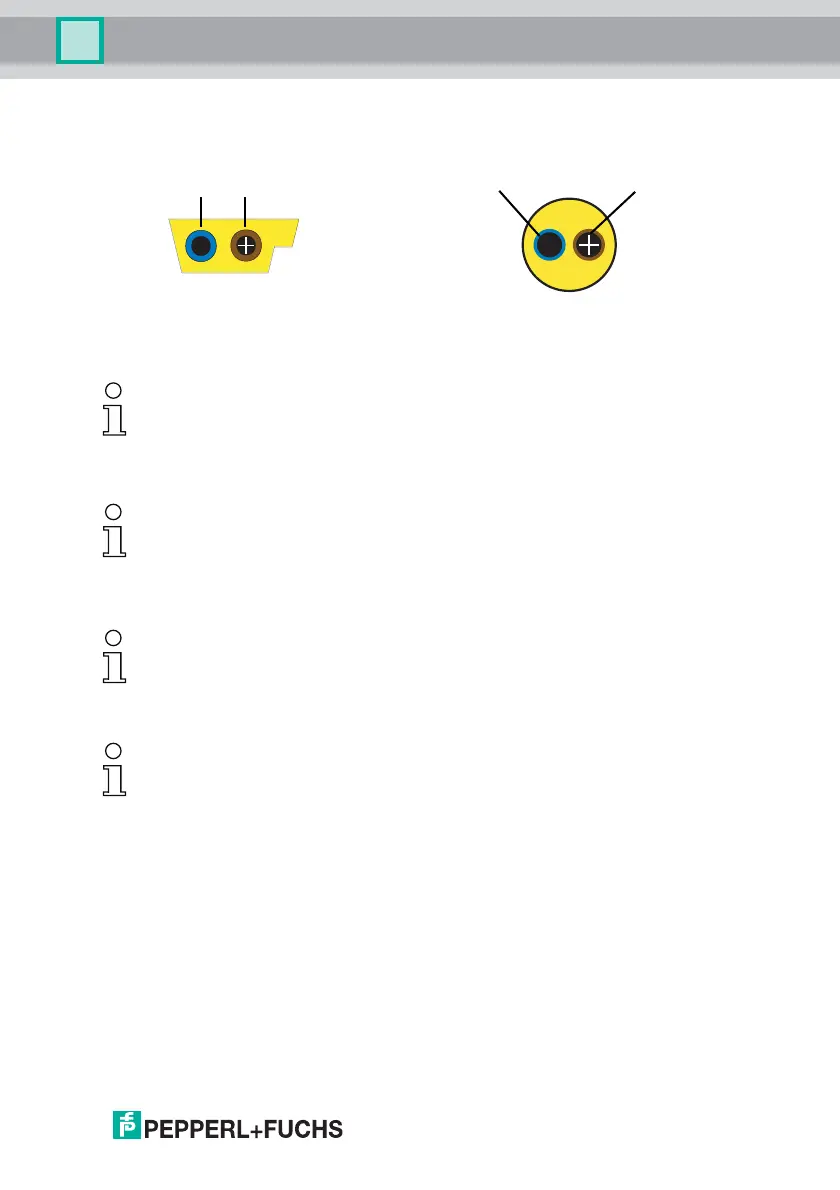

Yellow ASi ribbon cable
Blue
AS-i-
Brown
AS-i+
2-conductor AS-i round cable
(Recommended: flexible power cable
H05VV-F2x1,5 per DIN VDE 0281)
Blue
AS-i-
Brown
AS-i+
Information!
Electrical work is to be performed only by electrical technicians.
Information!
A listing of the individual devices and their features can be found in section <Product
information>.
Information!
The cable indicated by grey must not have slaves or repeaters connected to it.
The yellow cable must not have AS-i power suppliers or additional masters connected
to it.
Information!
The function ground can be connected either to the grounding screw or to the terminal.
The function ground should be made with as short a cable as possible to ensure good
EMC characteristics.
Therefore function grounding using the grounding screw is preferred.
