AS-i 3.0 PROFIBUS Gateway in Stainless Steel

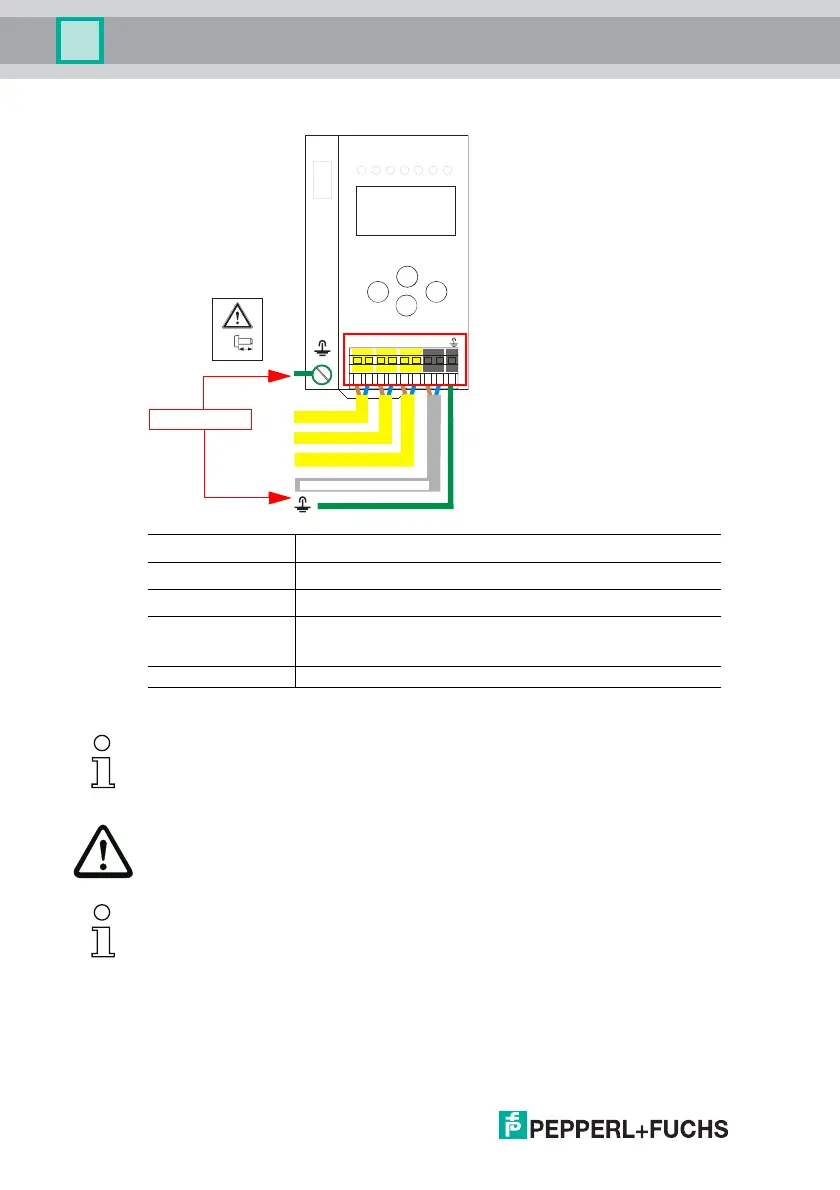

Electrical connection
7.4.3 Electrical connection VBG-PB-K20-D-EV
Terminal Signal / Description
+ASI 1–
Connection to AS-i circuit 1
+ASI 2–
Connection to AS-i circuit 2
ASI +PWR– /
24 V, 0 V
Supply voltage for AS-i circuits (max. 4 A) /
AS-i Power24
1
supply optional
1. The gateway is AS-i Power24V capable and can be operated directly on a 24V (PELV) power supply.
FE Function ground
+
-
+
-
+
-
+ASI 1–
+ASI
1–
+
ASI +PWR– (max. 4A) / 24V, 0V
+ASI
2–
+ASI1- +ASI1- +ASI2-
+ASI PWR-
24V 0V
+
-
M4
5 mm max!
Function ground
Information!
AS-i Circuit 1 and 2 are both powered from a
Pepperl+Fuchs GmbH power supply!
No other power supplies are approved!
Attention!
Earth fault detector sensor without function when using AS-i Power24!
Information!
For additional information, please refer to the sections: <AS-i and power supply termi-
nal assignments> and <AS-i Power24V capable>.
