Pepperl+Fuchs AS-I 3.0 PROFIBUS User Manual

AS-i 3.0 PROFIBUS Gateway in Stainless Steel
Electrical connection
26.9.2013
25

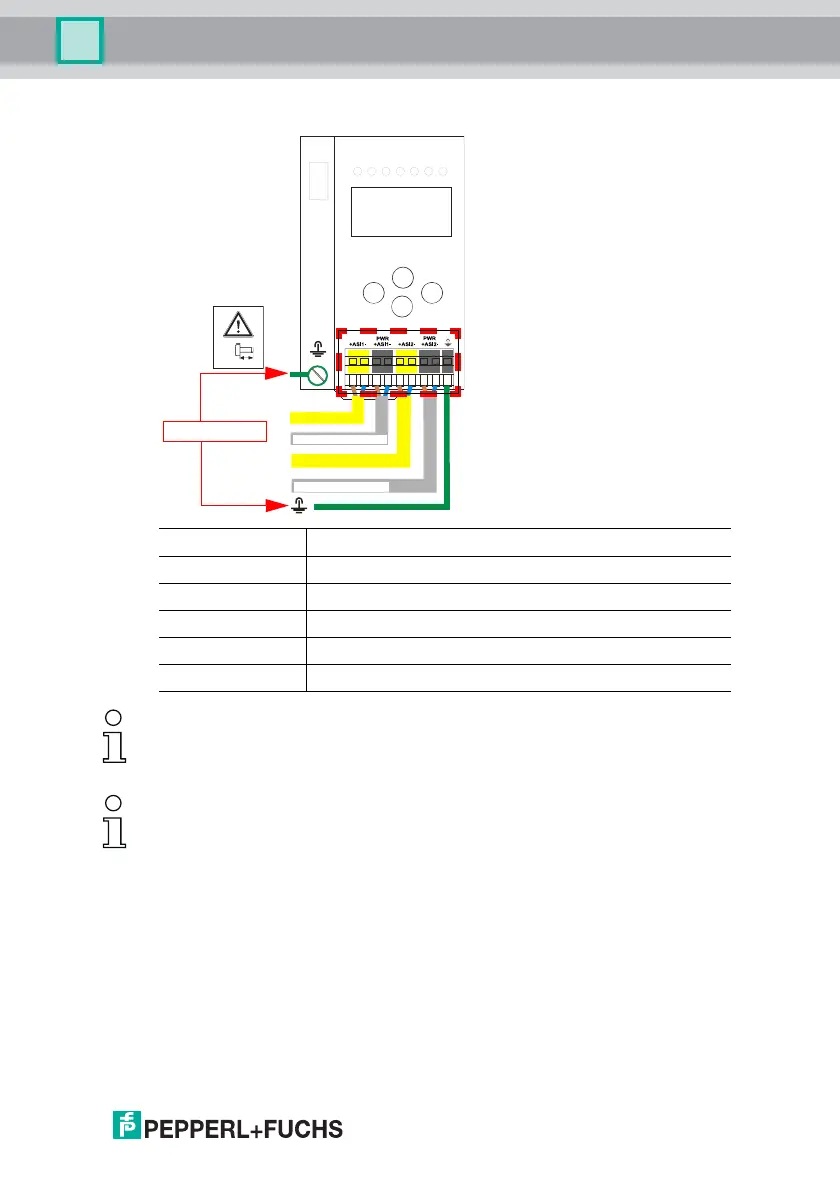

7.4.2 Electrical connection VBG-PB-K20-DMD-EV1
Terminal Signal / Description
+ASI 1–
Connection to AS-i circuit 1
+ASI 2–
Connection to AS-i circuit 2
ASI 1 +PWR–
Supply voltage for AS-i circuit 1 (max. 8 A)
ASI 2 +PWR–
Supply voltage for AS-i circuit 2 (max. 8 A)
FE
Function ground
+
-
+
-
+
-
+ASI 1–
+
+ASI 2–
ASI 1 +PWR– (max. 8A)
ASI 2 +PWR– (max. 8A)
M4
5 mm max!
Function ground
Information!
AS-i circuits 1 and 2 are powered by separate power supplies.
Information!
For additional information, please refer to the section <AS-i and power supply terminal
assignments>.
