AS-i 3.0 PROFIBUS Gateway in Stainless Steel

Electrical connection

26.9.2013

7. Electrical connection

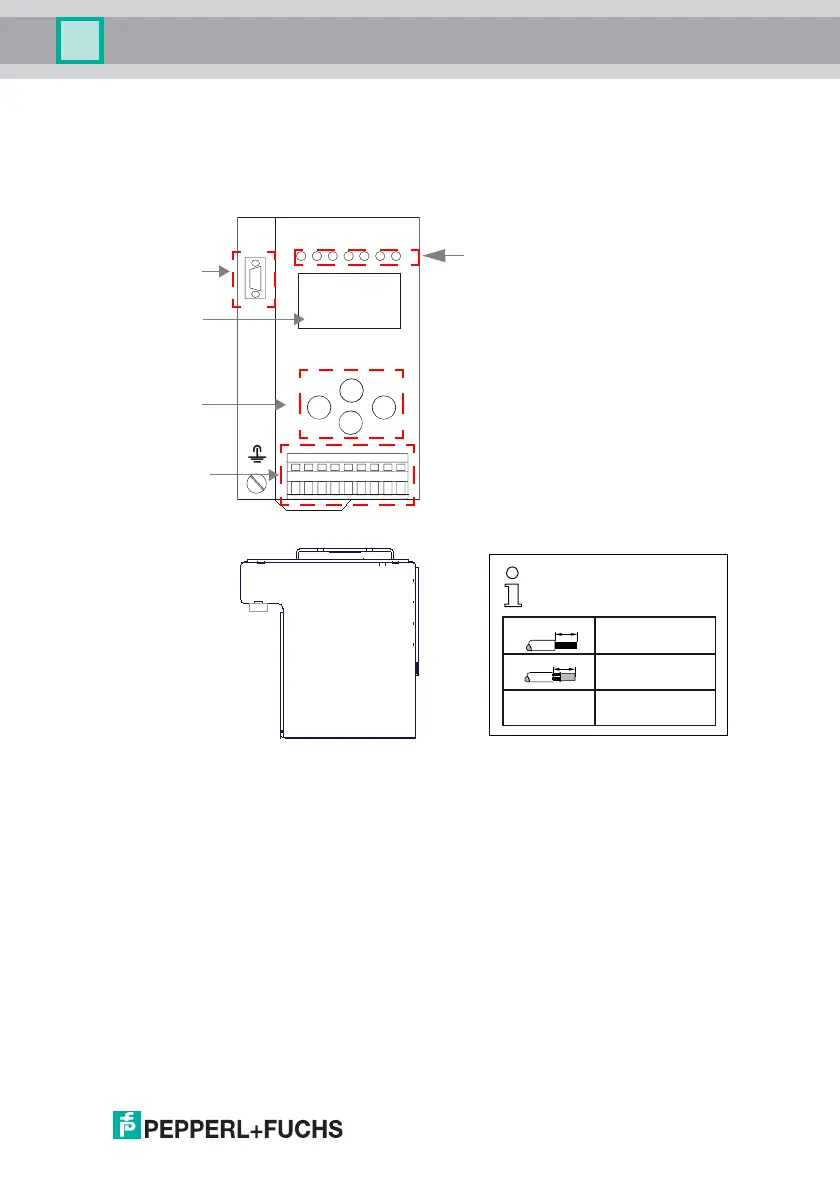

7.1 Overview of terminals, indicators and operating elements

7.1.1 VBG-PB-K20-D-BV

Legend:

[1] LEDs

[2] D-sub connection (PROFIBUS interface)

[3] LC display

[4] Push-buttons

[5] AS-i and power supply terminal

[1]

[2]

[3]

[4]

[5]

AWG 24 ... 12

0,2 ... 2,5 mm
