Pepperl+Fuchs AS-I 3.0 PROFIBUS User Manual

AS-i 3.0 PROFIBUS Gateway in Stainless Steel
Installation
26.9.2013
15
6.6 AS-i Slaves anschließen
LCD
PROFIBUS

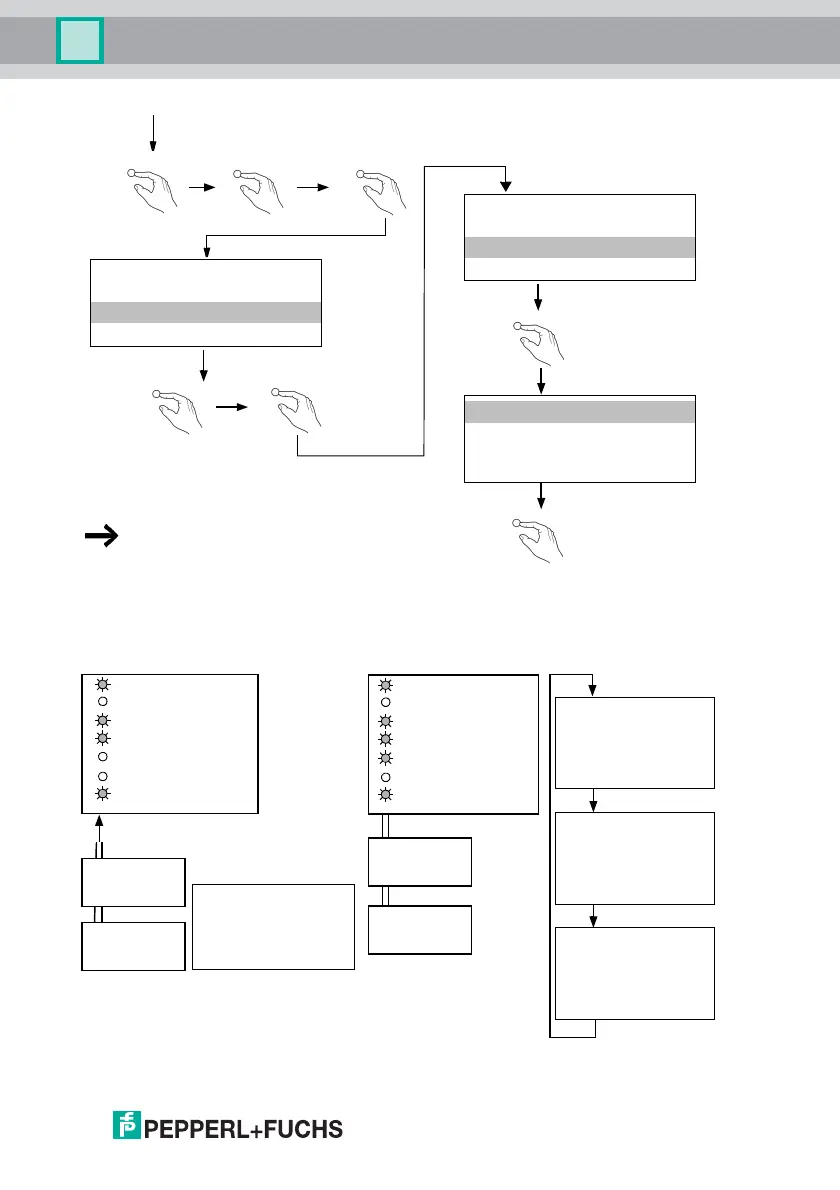

QUICK SETUP
SETUP
Das Gerät ist werkseitig auf Adresse 3 eingestellt.
LCD
PROFIBUS ADDRESS
OLD ADDRESS 14
2x ESC
NEW ADDRESS 000
2x ESC
2x OK
↑
OK
LCD
PROFIBUS ADDRESS
OLD ADDRESS 3
NEW ADDRESS 010
4x ↑
OK
Slave 1
AS-i
Slave 5
AS-i
LCD
0.5s
Slave 1
AS-i
Slave 5
AS-i
AS-i
prj mode
Config error
prg enable
AS-i active
U AS-i
Profibus
Power
AS-i
prj mode
Config error
prg enable
AS-i active
U AS-i
Profibus
Power
. 5
. 1
AS-i Master
LCD
. 41
SEARCHING SLAVES
AS-i Master
0.5s
0.5s
. 24
