Pepperl+Fuchs AS-I 3.0 PROFIBUS User Manual

26.9.2013
62
AS-i 3.0 PROFIBUS Gateway in Stainless Steel
Appendix: Example for startup on a Siemens S7

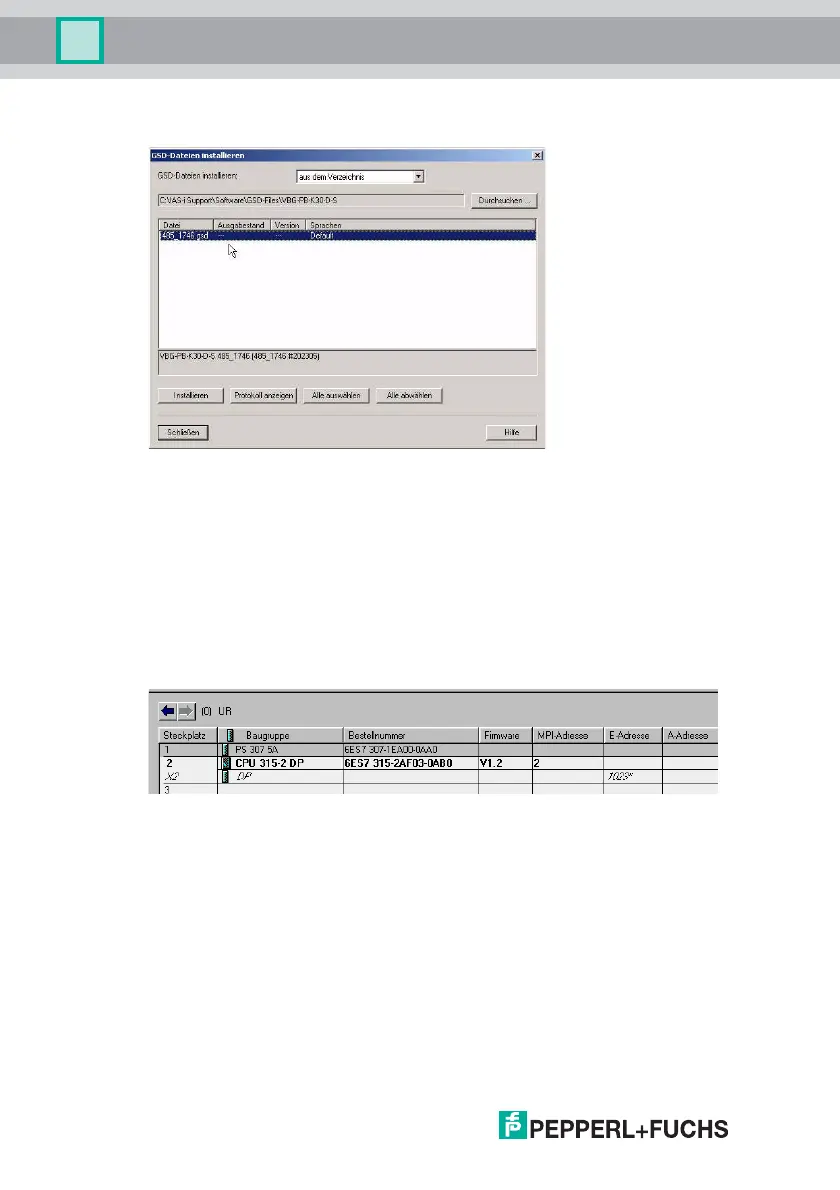

Clicking on the "Open" field adds the GSD file "VBG-PB-K20-DMD 576
A1745.gsd" to the hardware catalog.
Clicking on the "Open" field adds the GSD file "VBG-PB-K20-DMD 576
A1745.gsd" to the hardware catalog.
After successful installation of the GSD file you may now open the hardware cata-
log. The modules contained under SIMATIC 300.
3. profile rail
4. power supply e.g. PS 307 5A
5. CPUe.g. CPU 315-2 DP
are added to the project. When selecting the CPU module, note the correct hard-
ware version (identifiable by the imprint of the part number at lower left) and the
firmware version (identifiable at left beneath the cover).
