AS-i 3.0 PROFIBUS Gateway in Stainless Steel
Appendix: Example for startup on a Siemens S7
26.9.2013
63
When adding the CPU module you are prompted for the desired PROFIBUS con-
nection. The standard proposed is for the CPU as PROFIBUS DP Master. This
can be directly applied. The CPU mode must be set on the DP Master.

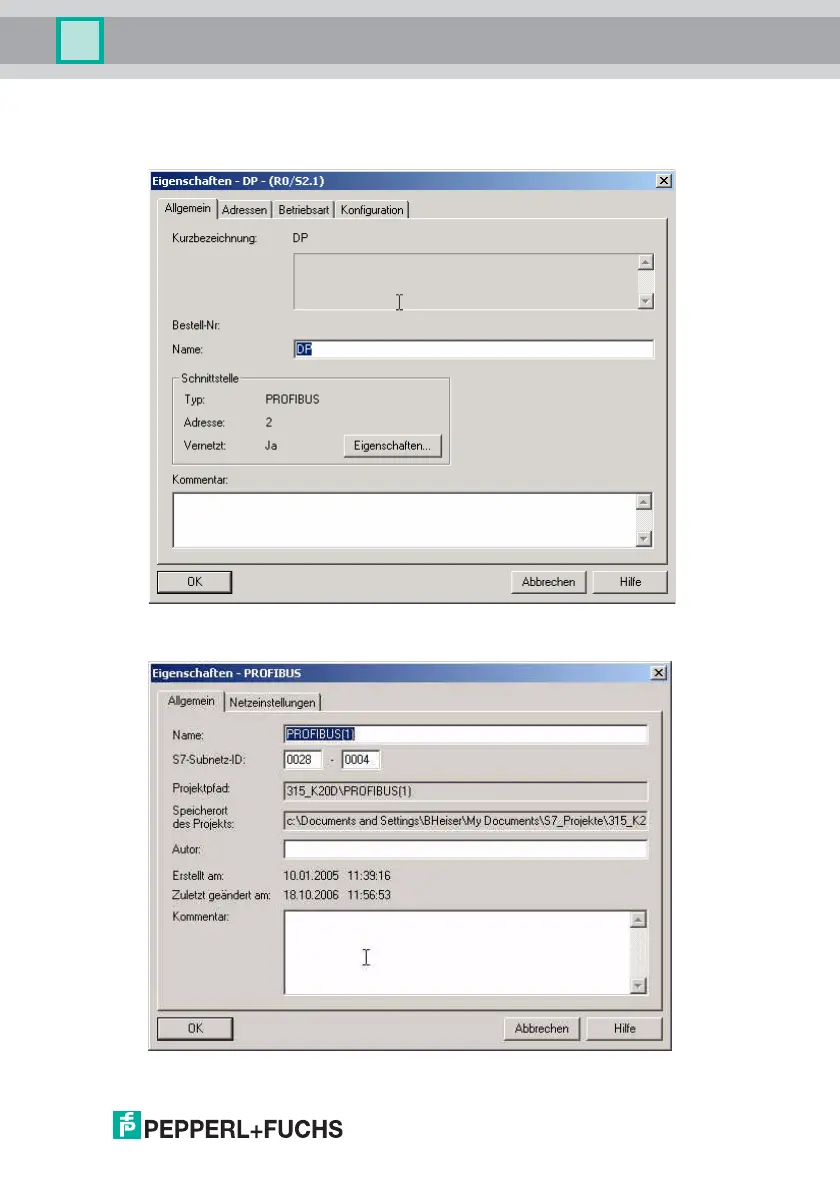

The CPU PROFIBUS DP Properties can be used to display the properties for the
PROFIBUS. Clicking on the "Settings" button displays the PROFIBUS settings.
Profile "DP" is generally used as the PROFIBUS profile.
