Pepperl+Fuchs AS-I 3.0 PROFIBUS User Manual

AS-i 3.0 PROFIBUS Gateway in Stainless Steel
Appendix: Example for startup on a Siemens S7
26.9.2013
71

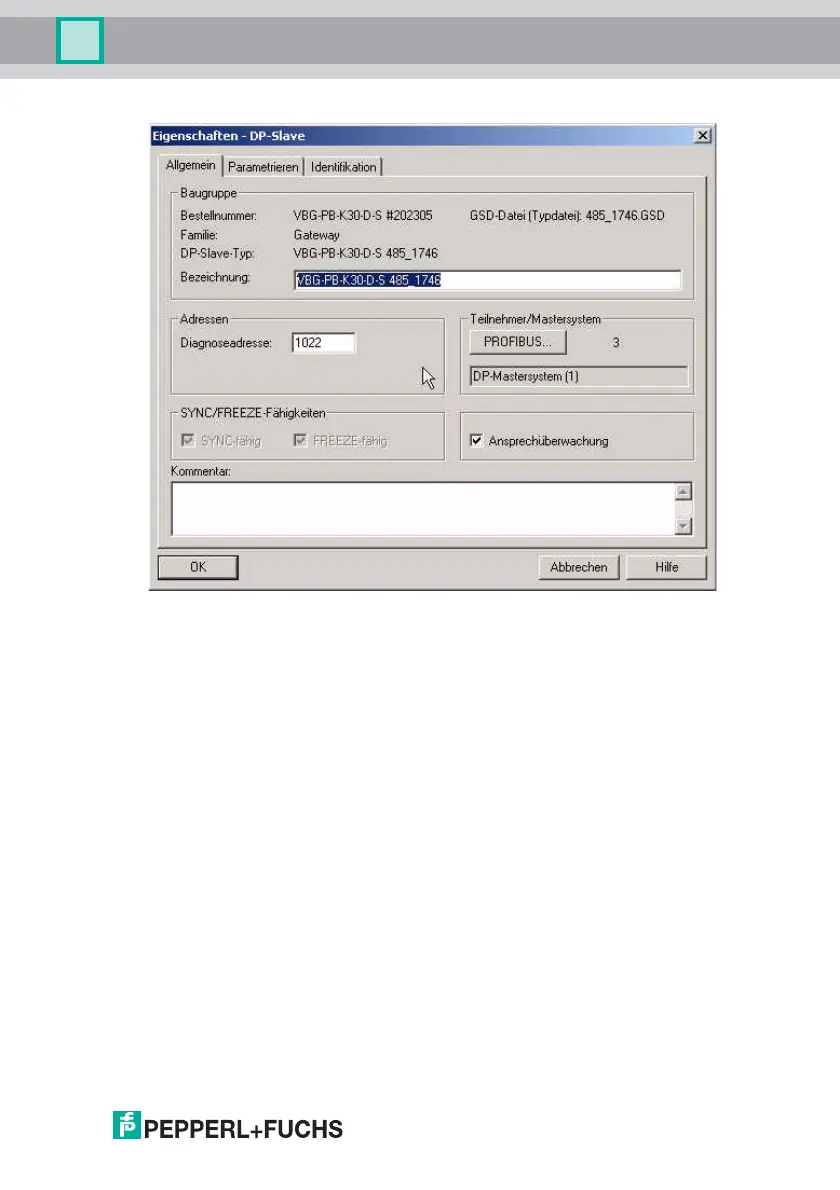

The diagnostics address entered in this window is used for parameterizing the
function module SFC13 (diagnostic request). At this address you can use the
standard function SFC13 to read out the PROFIBUS diagnostic data of this DP
slave while running.
When invoking SFC13, note that the diagnostic address must be parameterized
as a hexadecimal value.
For example: Diagnostic address 1022 # W#16#3FE
Clicking on the "Parameterize" tab displays the possible settings for the PROFI-
BUS start parameters.
