UC***-18GS series
Configuration and Analysis with DTM via IO-Link
Details about sampled echoes

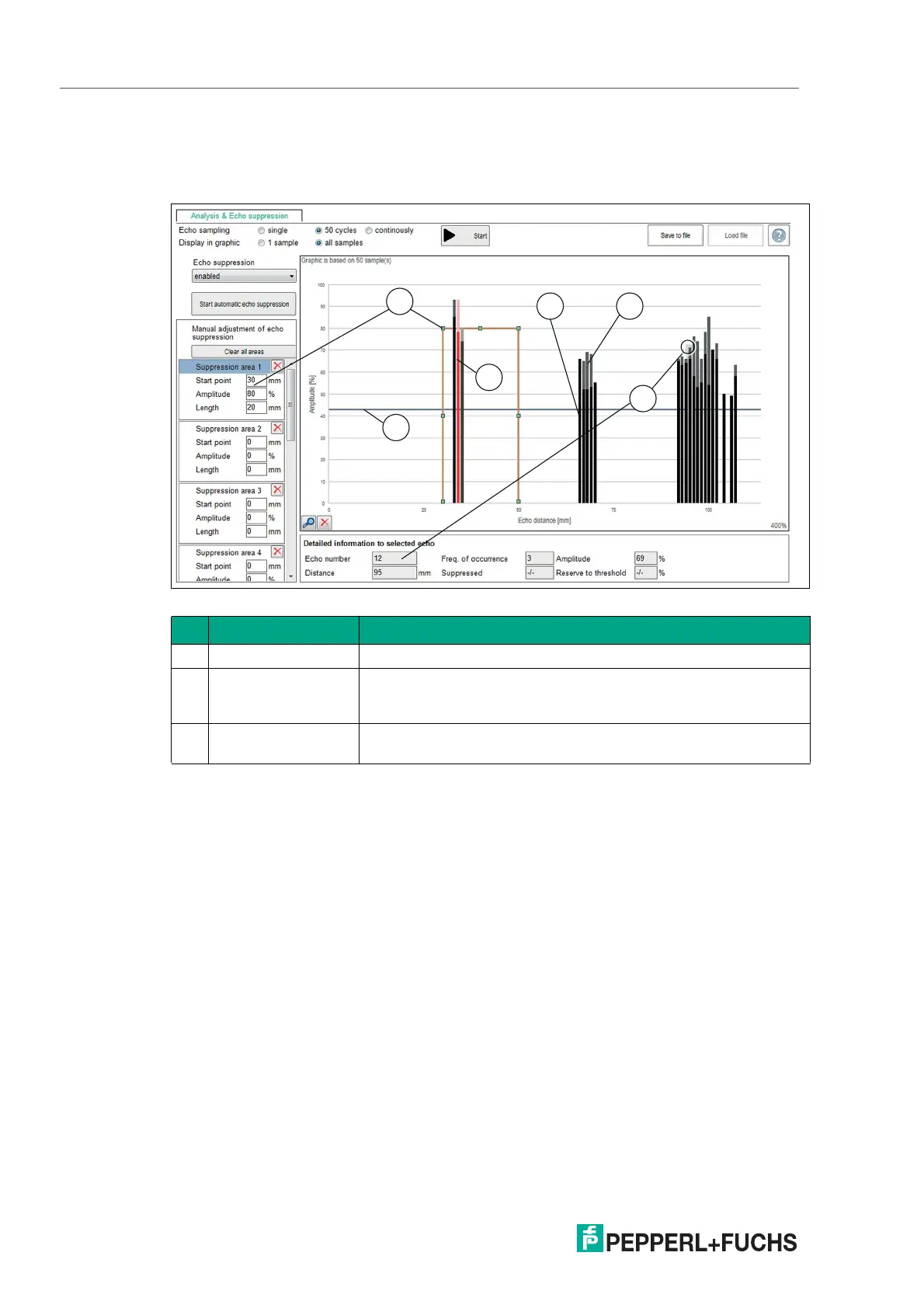

Using an echo sample with manual echo suppression as an example, the following sets out the
graphic elements of information in the display area.
Figure 7.11
No. Name Description
1 Suppression area A rectangle indicates the specified suppression area.
2 Black part of the col-
umn
If multiple echo samples are shown in the graphic, the black part
of each column shows the amplitude which each of the recorded
echoes reached from this distance.
3 Gray part of the col-
umn
The gray part of the column, above the black part, shows the vari-
ance in the strength of amplitude of all echoes from this distance.
2 3
5
1
6
4
