Peri RCS P - Assembly

3
3.1
3.2
3.3
Ø 21
Ø 21
Ø 26
Ø 26
67
C1 Pre-Assembly of Brackets
Assembly
1. Position spacer tube Ø26 (3.1) of the
Spacer M20 (3) in the Climbing Rail
RCS with the help of a hammer.
2. Insert bolt M20×120 (3.2) through
the holes Ø21 of the Climbing Rail
and through the spacer tube.
3. Attach self-locking nut M20-8 (3.3)
to the bolt and tighten. Tightening
torque min. 100 Nm.
(Fig. C1.01)
 Spacers M20 (Climbing Bolts) must
not be moved in the Climbing Rail,
but additionally installed. The stroke
of the climbing device allows a maxi-
mum distance of 50 cm from the
Spacers.
 It could be necessary to release the
adjacent Spacers in the Climbing
Rail. After mounting the additional
Spacer, re-tighten all previously loos-
ened bolts. Tightening torque min.
60 Nm.
Have the nuts (3.3) been tightened?

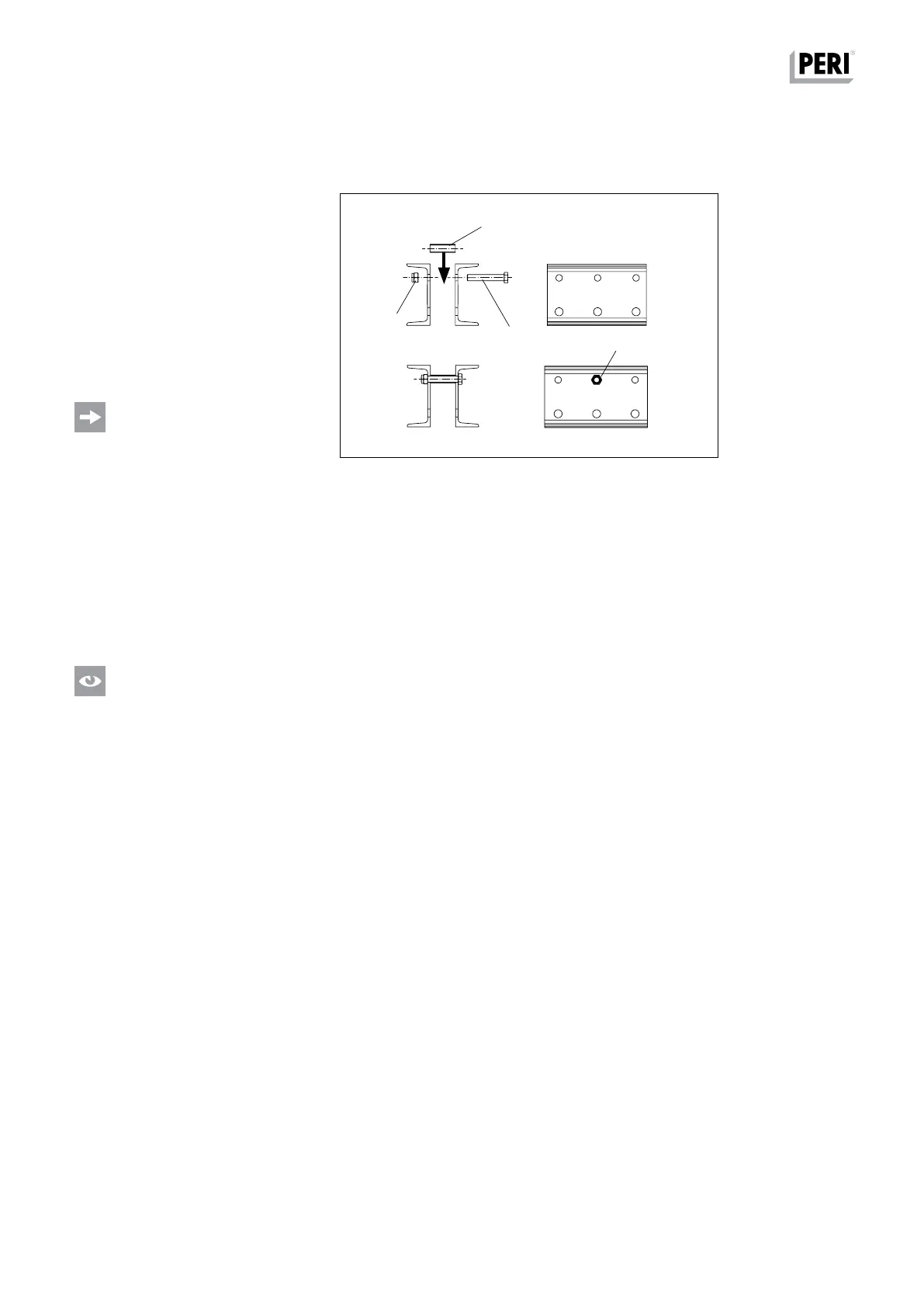

Fig. C1.01
RCS P Climbing Protection Panel
Instructions for Assembly and Use - Standard Configuration
