Peri RCS P - Re-positioning Spacer M24; Components; Assembly

4.3
4.1
4.2
Ø 21
Ø 26
68
C1 Pre-Assembly of Brackets

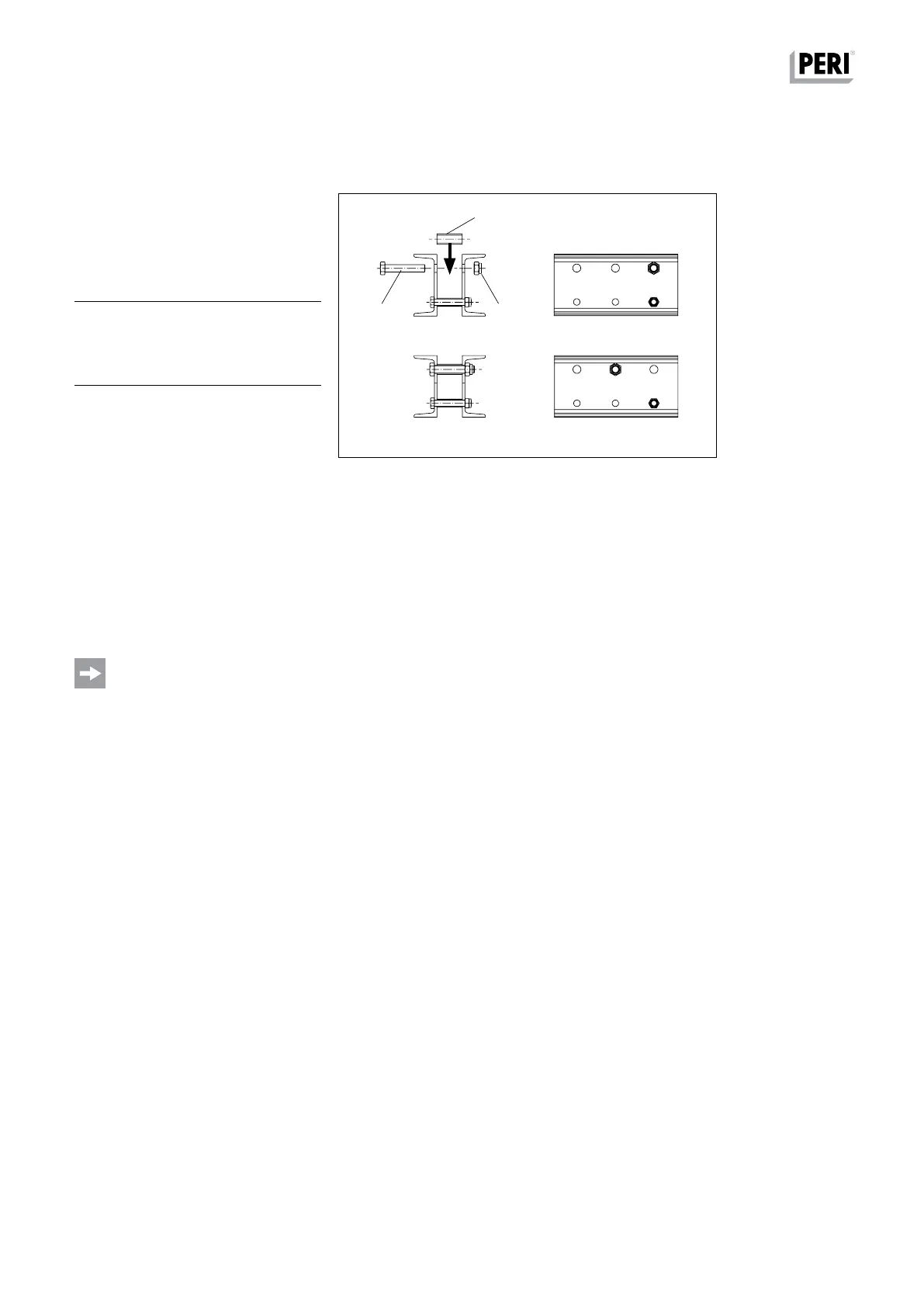

Fig. C1.02
Re-positioning Spacer M24
In some cases, the re-positioning of
Spacers M24 in the Climbing Rail or
Enclosure Post is required.
Components
4 Spacer M24-82
4.1 Spacer Tube Ø33.7×4…82
4.2 Bolt ISO 4014 M24 x 130-8.8
4.3 Nut ISO 7042 M24-8
Assembly
1. Remove nut M24-8 (4.3) (SW36).
2. Remove bolt M24×130 (4.2).
3. Re-position spacer tube Ø33.7 (4.1)
of the Spacer M24 with the help of a
hammer.
4. Insert bolt M24×130 (4.2) through
the holes Ø26 of the Climbing Rail
and through the spacer tube.
5. Attach self-locking nut M24-8
(SW36) on the bolt and tighten.
Tightening torque min. 150 Nm.
(Fig. C1.02)
It may be necessary to release adjacent
Spacers in the Climbing Rail. After
mounting the additional Spacer,
re-tighten all previously loosened bolts.
Tightening torque min. 150 Nm.
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
