Peri RCS P - Assembly on the Enclosure Beam; Components; Assembly

111
14
14.1
82
Assembly on the Enclosure Beam
Components
14 Enclosure Beam (timber)
14.1 Support (timber)
41 Foldable Cover (multi-layer ply-
wood sheeting)
42 Hinge DIN 7957-200-ST
109 Spax Screw TX25, 5 x 20
111 Spax Screw TX30, 6 x 120
136 Fixation Bar RCS
Assembly
1. Position the pre-assembled Enclosure
Beam (14), turned by half a turn, on
the Climbing Rails.
2. As support (14.1) for the foldable
cover, chamfer one timber to approx.
30°.
3. Secure the support (14.1) with
screws 6 x 120 (111) at a distance of
approx. 60 cm to the Enclosure
Beam (14). (Fig. C2.05)

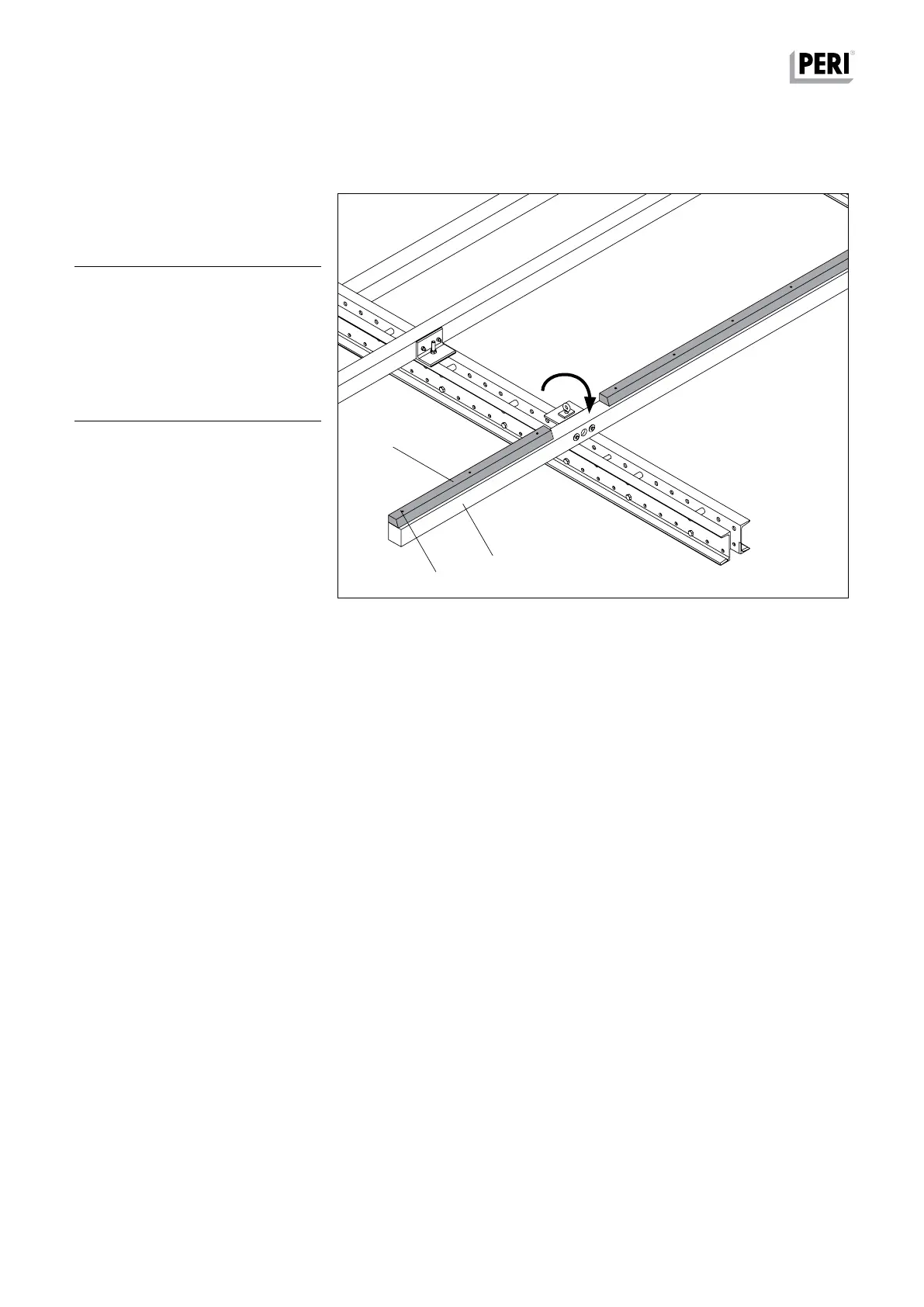

Fig. C2.05
C2 Assembly of the Working Platforms
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
