Peri RCS P - Page 83

41
41.1
42
109
83
3. Cut foldable cover (41) made of
weather-resistant multi-layer plywood
sheeting according to site-specific
assembly drawings.
4. On the enclosure side (41.1), cham-
fer the edges to under approx. 30°.
5. Secure each flap to the Enclosure
Beam using at least 2 Hinges (42).
Secure Hinges to flap and Enclosure
Beam using 2 × 4 screws 5 × 20
(109). (Fig. C2.06 + C2.06a)
6 Turn the Enclosure Beam back half a
turn and mount on the Climbing Rails
using the eyelets. See Section "C3
Assembly of the Enclosure" on page
84. (Fig. C2.07)
7. Provide a Fixation Bar (136) for each
cover for the opened position.
Secure each Fixation Bar to the en-
closure using 4 screws 5 x 20 (109).
The position is given in the pro-
ject-specific planning documents.

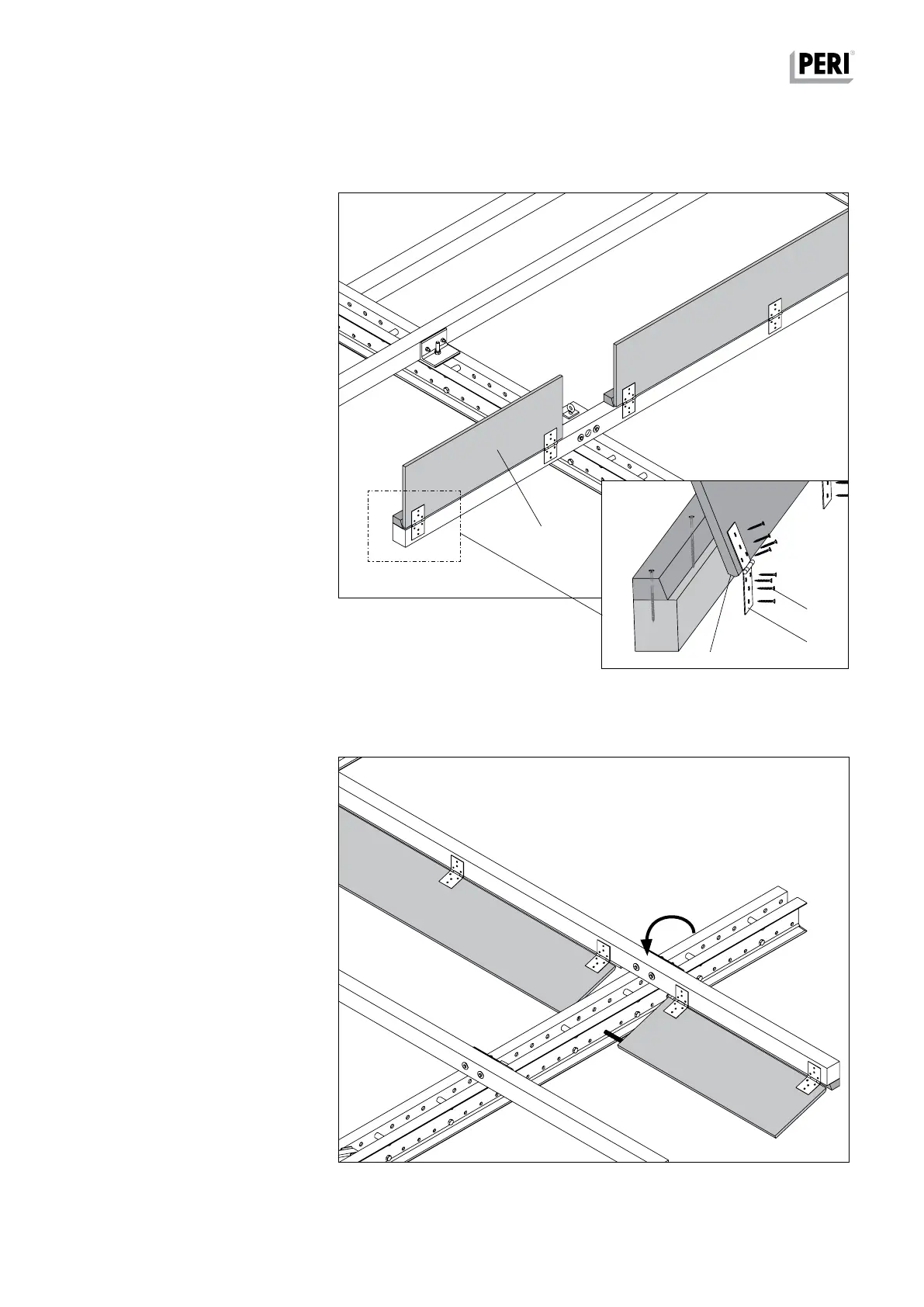

Fig. C2.06
Fig. C2.07
Fig. C2.06a
C2 Assembly of the Working Platforms
RCS P Climbing Protection Panel
Instructions for Assembly and Use – Standard Configuration
