After Mounting
Warning
 There is a risk of falling during
assembly work on the suspended
enclosure! A fall can result in serious
injury or even death.
 Use personal protective equip-
ment to prevent falling from a
height (PPE).
 During the assembly work, tools, for
example, may fall to the ground and
hit people below
 Cordon off all areas of risk below.
Components
41 Foldable Cover (multi-layer
plywood sheeting)
109 Spax Screw TX25, 5 x 20
136 Fixation Bar RCS
Assembly
1. Close the Foldable Covers.
2. If not yet installed: provide a Fixation
Bar (136) for each cover for the
opened position. Secure each
Fixation Bar to the enclosure using
4screws 5 x 20 (109).
3. If necessary, carry out adjustments,
e.g. in the area of the Climbing
Shoes.

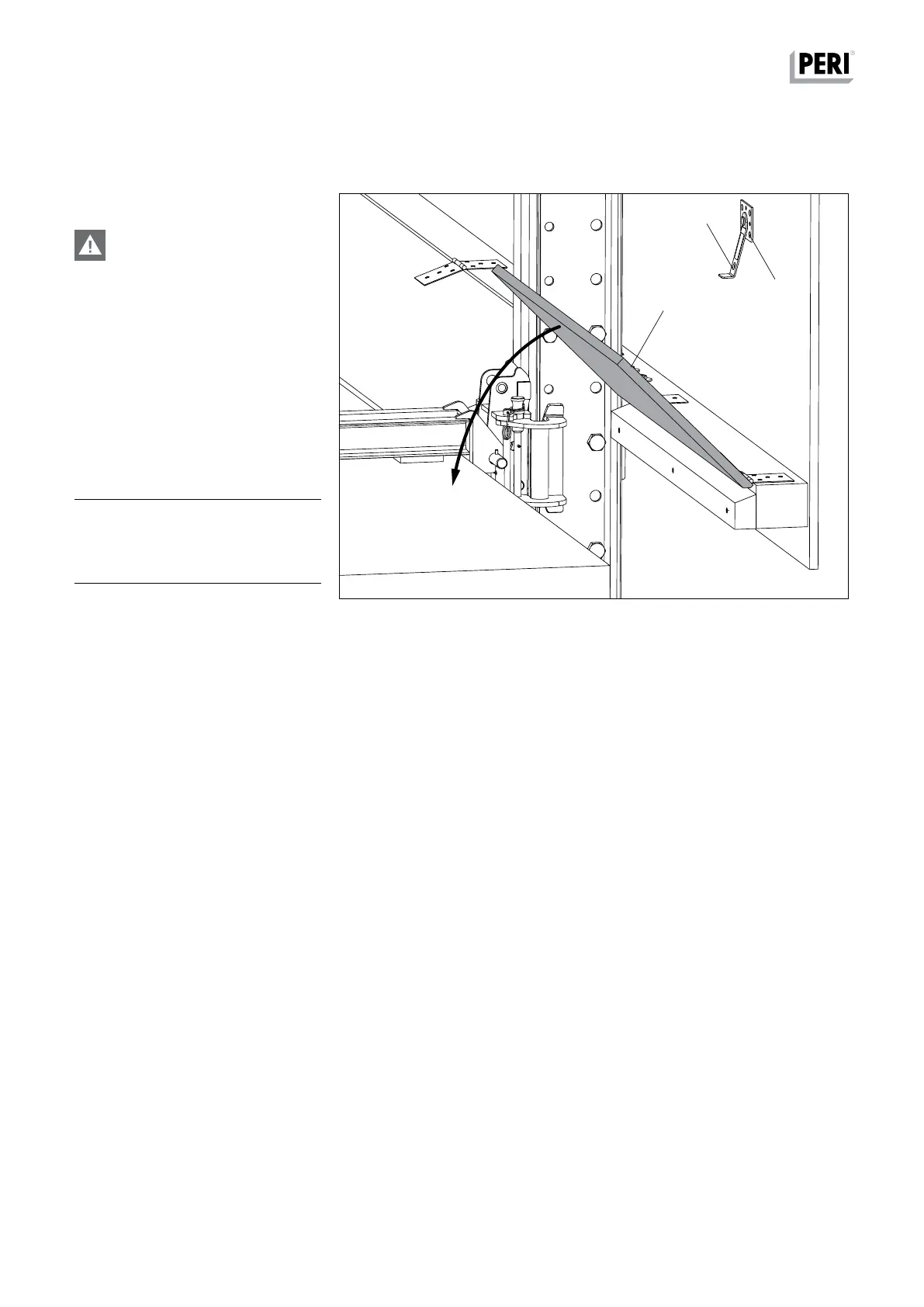

(Fig. C4.06)
C4 Suspension on the Structure
Fig. C4.06
RCS P Climbing Protection Panel
