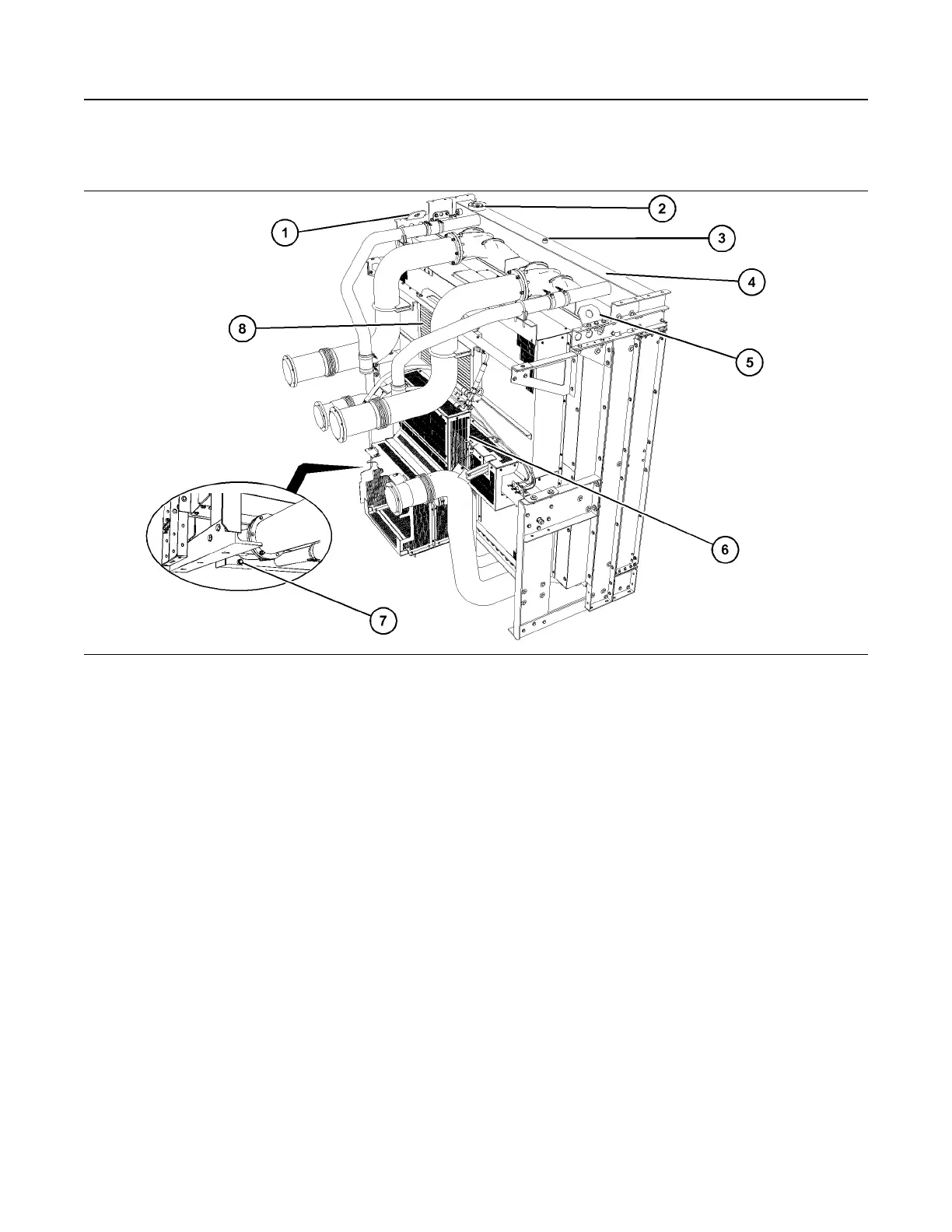

Radiator View
Illustration 25 g07705129
Typical example
(1) Radiator lifting eye (1 of 2)
(2) Radiator cap
(3) Coolant vent
(4) Radiator
(5) Radiator lifting eye (2 of 2)
(6) Maintenance access panels
(7) Coolant drain
(8) Fuel cooler
i10024924
Engine Description
The Perkins 5012C-E46TA Industrial Engines have
the following characteristics:
• Four stroke cycle
• Mechanically actuated, electronically controlled
fuel injection system
• Turbocharged
• Air to air charged cooled
Engine Specifications
Note: The front end of the engine is opposite the
flywheel end of the engine. The left and the right
sides of the engine are determined from the flywheel
end. Bank A cylinders are on the right-hand side of
the engine. Bank B cylinders are on the left-hand side
of the engine. The number 1 cylinder is the front
cylinder.
M0163009 25
Product Information Section
Engine Description
