Product Information
Section
Model Views
i10021262
Model View Illustrations
The following model views show typical features of
the engine. Due to individual applications, your
engine may appear different from the illustrations.
Engine Views

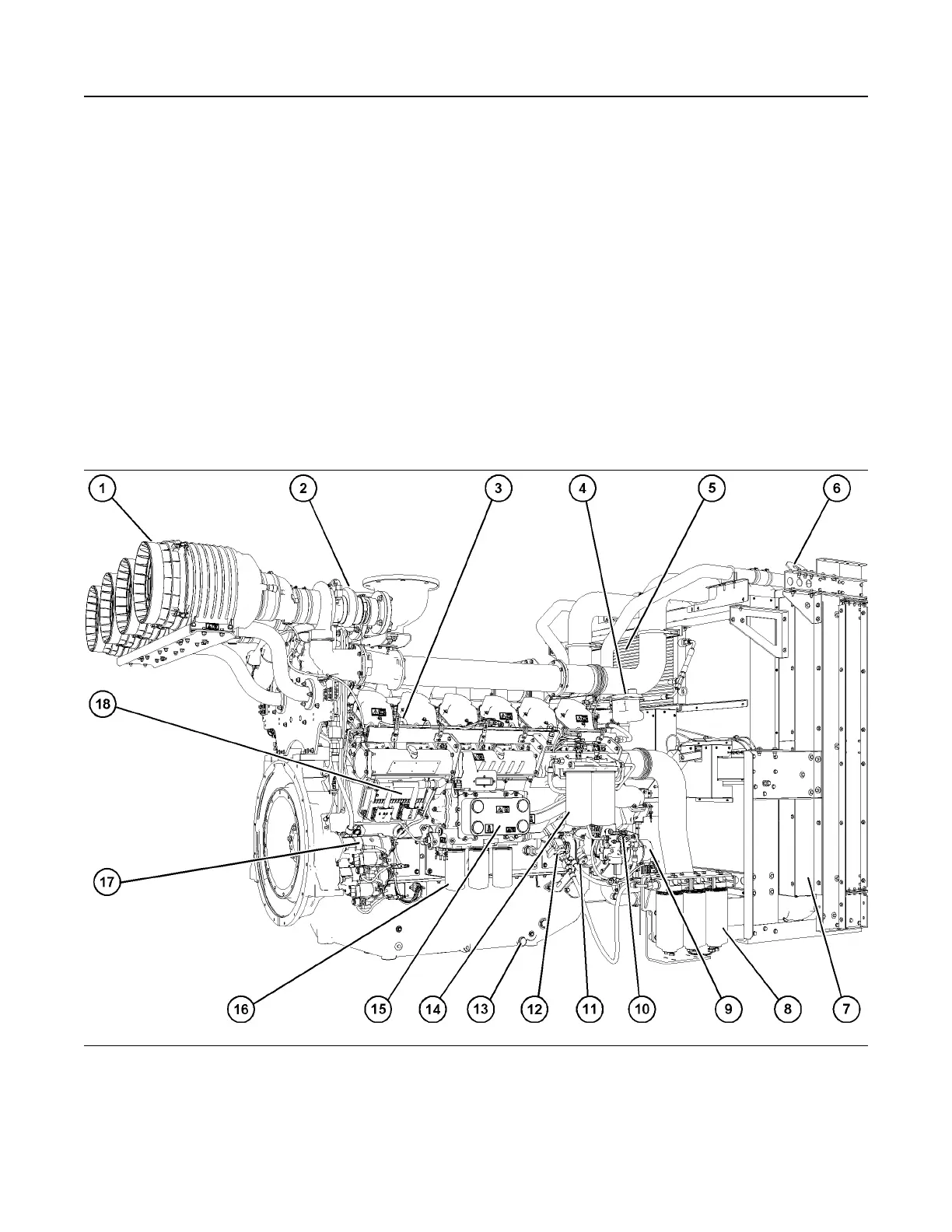

Illustration 22 g07703218
Typical example
(1) Engine air cleaners
(2) Turbochargers
(3) Rear lifting eye (1 of 2)
(4) Breather (1 of 2)
(5) Fuel cooler
(6) Radiator lifting eye (1 of 2)
(7) Radiator
(8) Module for primary fuel filters
(9) Alternator
(10) Electric priming pump
22 M0163009
Product Information Section
Model Views
