4. If necessary, install bolt (11) and tension the new
belt. Refer to “Inspection” for more information.
5. When required tension is correct, tighten bolt (11)
to a torque of 47 N·m (34 lb ft). Tighten bolt (6) to
a torque of 70 N·m (51 lb ft). Then, install the
cover guards, refer to “Inspection” for more
information.
When all checking of the belt or tensioning of the belt
are completed and the all guards cover are installed,
restore the electrical power.
i09981521
Belts - Inspect/Adjust/Replace
Inspect
To maximize the engine performance, inspect the
belts for wear and for cracking. Replace belts that are
worn or damaged.
To check accurately the belt tension, a suitable
gauge should be used.
1. Isolate the electrical supply to the engine.

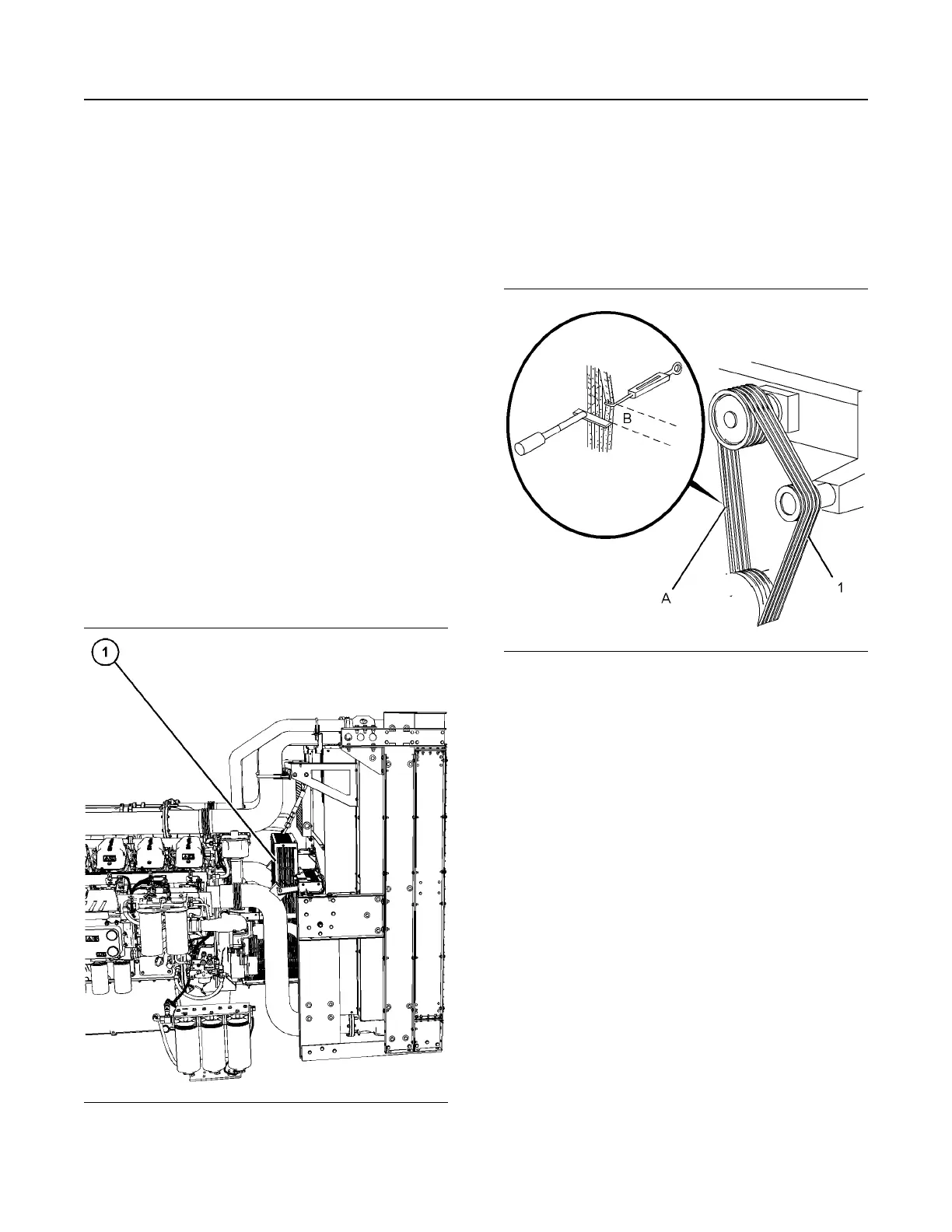

Illustration 47 g07693772
Typical example
2. Visually inspect fan guards for wear or damage.
Repair as necessary. Remove the fan guard (1).
3. Inspect the belts for cracks, splits, glazing, grease,
displacement of the cord and evidence of fluid
contamination. If necessary, replace the belts,
refer to “Removal of the Fan Drive Belts” for more
information.
Illustration 48 g02025316
Typical example
4. Inspect the belts (1) for cracks. Inspect the belts
for contamination. If necessary, replace the belts.
Refer to “Removal of the Fan Drive Belts” for more
information.
5. The belt tension must be checked at position A.
Use a suitable spring balance and a suitable
straight edge to check the belt tension.
6. The belt tension should be 591 N (132.9 lb) with a
maximum deflection at position B of 16 mm
(0.63 inch).
7. Adjust the belts if the belt tension exceeds or is
below 591 N (132.9 lb). Refer to “Adjustment” for
more information.
8. Install the fan guard (1).
9. Restore the electrical supply to the engine.
M0163009 63
Maintenance Section
Belts - Inspect/Adjust/Replace
