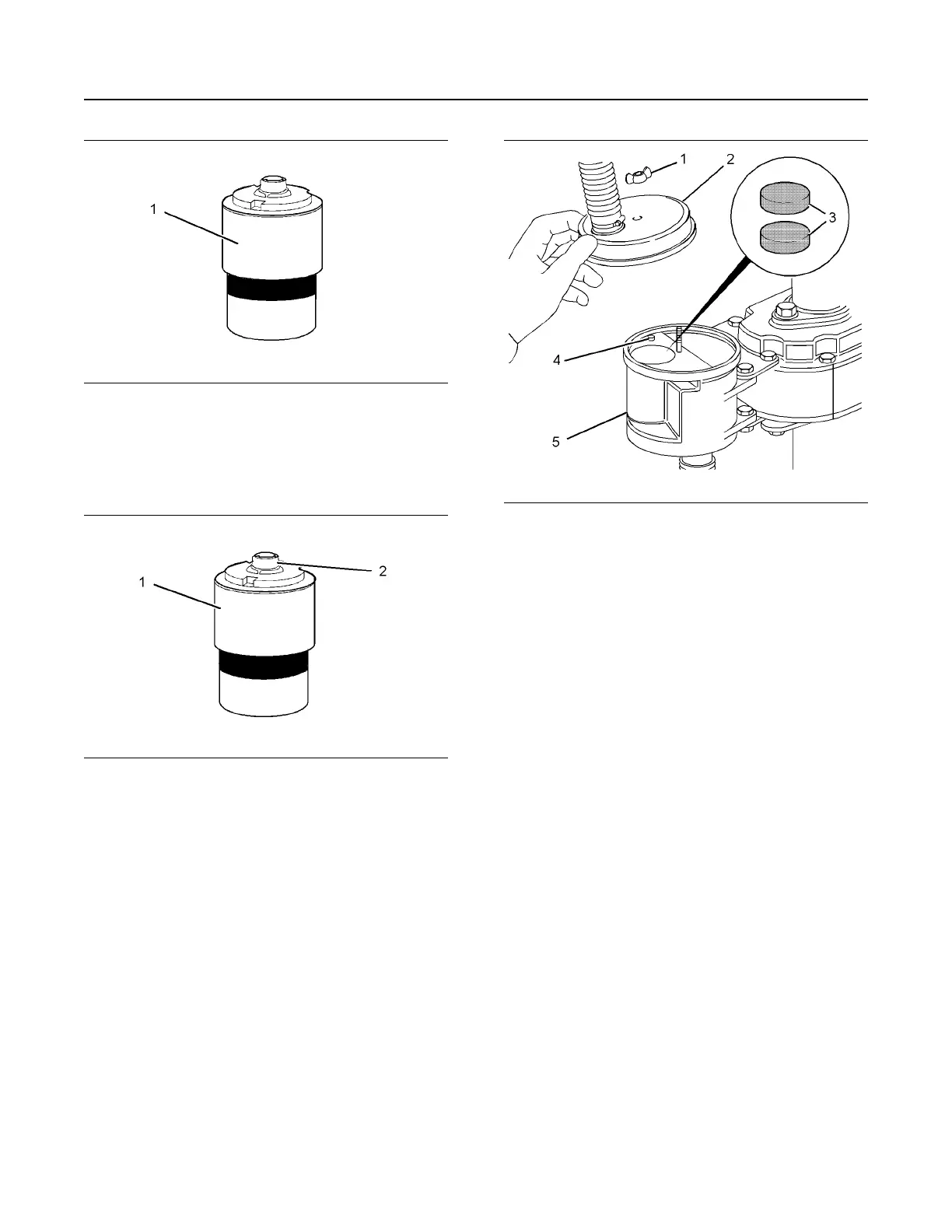

Illustration 83 g01242332
When the air filter element requires replacement, the
center section of the service indicator (1) is red.
Service Indicator Reset
Illustration 84 g01242328
Once the service indicator has been triggered and
when the air filter element has been replaced, the
service indicator must be reset. In order to reset the
service indicator (1), press the button (2).
If the service indicator does not reset easily, the
service indicator should be replaced.
Note: The service indicator may need to be replaced
frequently in environments that are severely dusty.
i04631326
Engine Crankcase Breather -
Clean
The engine crankcase breathers are mounted on the
side of the water regulators.
1. Isolate the electrical supply to the starting motor.
Illustration 85 g02775881
Typical example
2. Remove the wing nut (1) and the cover (2).
3. Remove the filter elements (3) from the breather
body (5).
4. Clean the filter elements (3) and dry the filter
elements. Inspect the filter elements for damage
or deterioration. If necessary, replace the filter
elements.
5. Install the filter elements (3) to the breather body
(5).
6. Ensure that the seal in the cover (2) is free from
damage. If necessary, replace the seal.
7. Align the cover (2) with the dowel (4). Install the
cover to the breather body (5).
8. Install the wing nut (1). Tighten the wing nut
securely.
9. Restore the electrical supply to the starting motor.
i10271629
Engine Crankcase Breather -
Clean/Replace
Closed Breather System (If
equipped)
Ensure that the power supply is disconnected from
the engine.
M0163009 79
Maintenance Section
Engine Crankcase Breather - Clean
