Some applications may be equipped with a cold
climate kit for the engine crankcase breather. If
equipped, remove the cold climate kit before
cleaning/ replacing the filter.

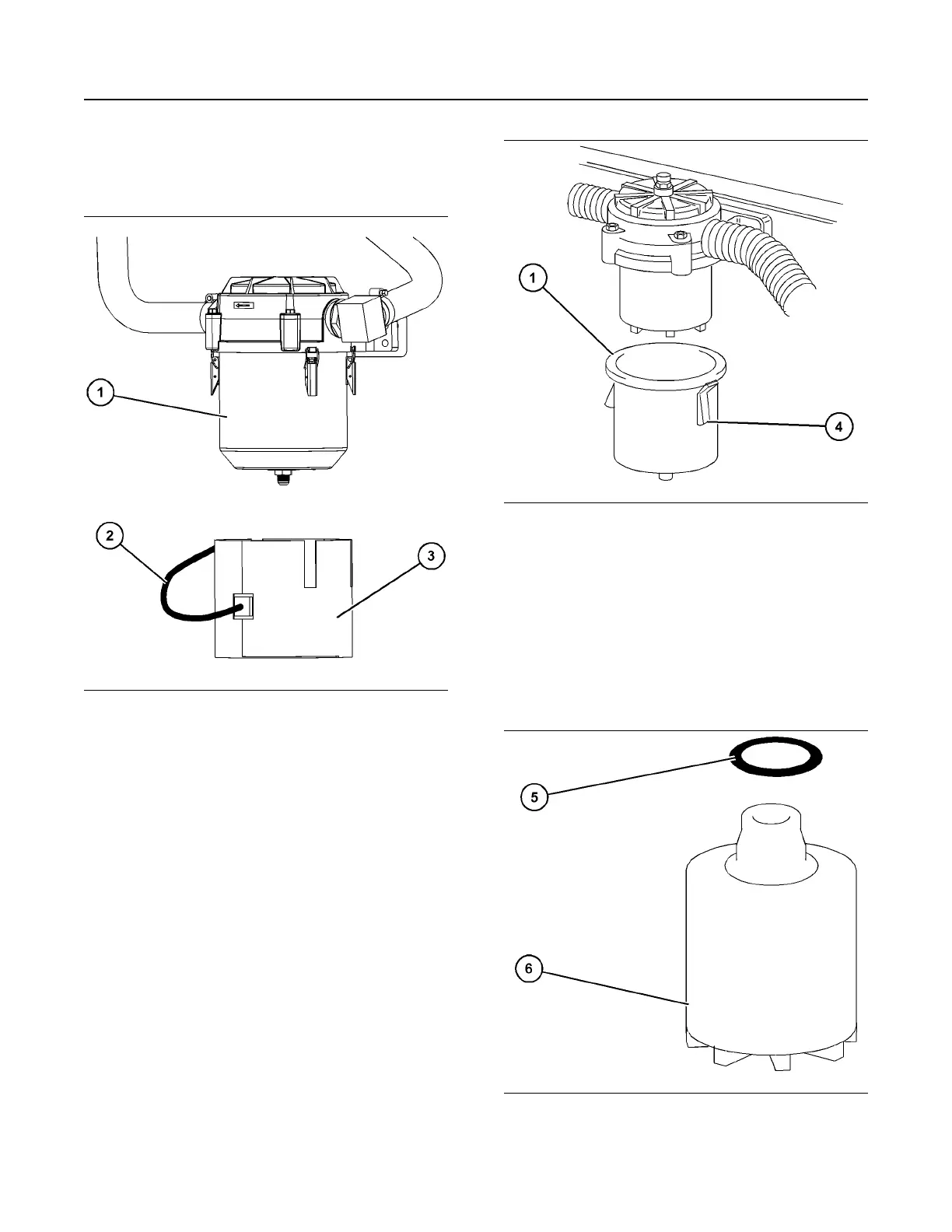

Illustration 86 g07790143
1. Disconnect the cable (2) from the wiring harness.
2. Slide the cold climate kit (3) downwards from the
bowl (1).
After the cold climate kit has been removed, continue
to clean/replace the filter.
Illustration 87 g07790162
Typical example
1. Release the four clips (4). Remove the bowl (1)
and remove the old filter element. Discard the old
filter element in accordance with local regulations.
Note: The filter element is removed by pulling down
on the filter element.
2. Ensure that the seal (5) is installed onto the new
filter element (6).
Illustration 88 g07790187
Typical example
80 M0163009
Maintenance Section
Engine Crankcase Breather - Clean/Replace
