Perkins 5012C-E46TA - Jacket Water Heater - Check

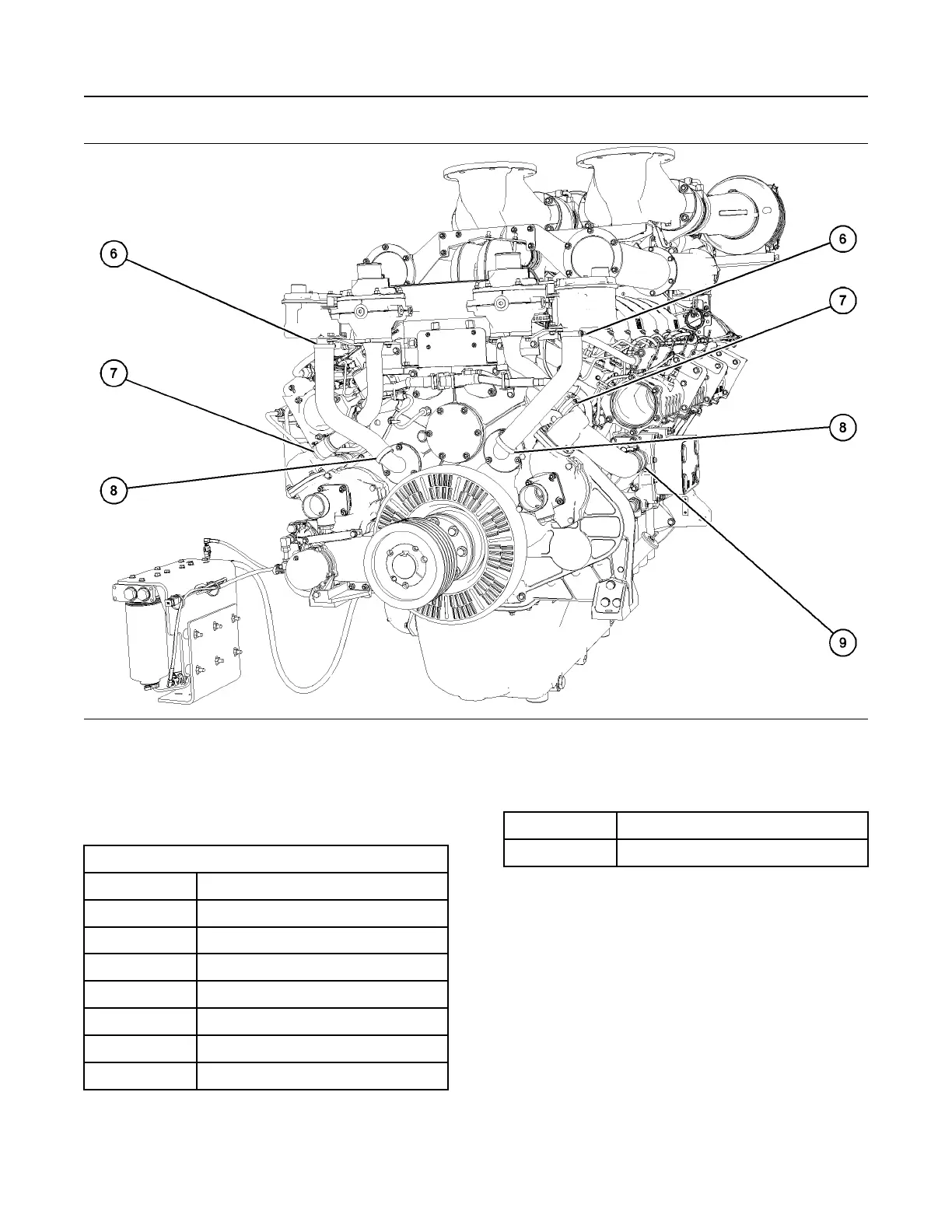

Illustration 101 g07711270
(6) Clamp torque 7 N·m (62 lb in)
(7) Clamp torque 7 N·m (62 lb in)
(8) Clamp torque 7 N·m (62 lb in)
(9) Clamp torque 7 N·m (62 lb in) (1 of 4)
Clamps and V-Band Clamp Torques
Table 9
Clamps and V-band Clamp Torques
Clamp Torque
1 10 N·m (88.5 lb in)
2 10 N·m (88.5 lb in)
3 7.5 N·m (66.4 lb in)
4 7 N·m (62 lb in)
5
7.5 N·m (66.4 lb in)
6 7 N·m (62 lb in)
7
7 N·m (62 lb in)
(continued)
(Table 9, contd)
8 7 N·m (62 lb in)
9 7 N·m (62 lb in)
i10002193
Jacket Water Heater - Check
(If Equipped)
Jacket water heaters help to improve starting in
ambient temperatures that are below 10 °C (50 °F).
All installations that require automatic starting should
have jacket water heaters.
M0163009 93
Maintenance Section
Jacket Water Heater - Check
