Perkins 5012C-E46TA - Engine Electrical Components

Perkins 5012C-E46TA
106 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

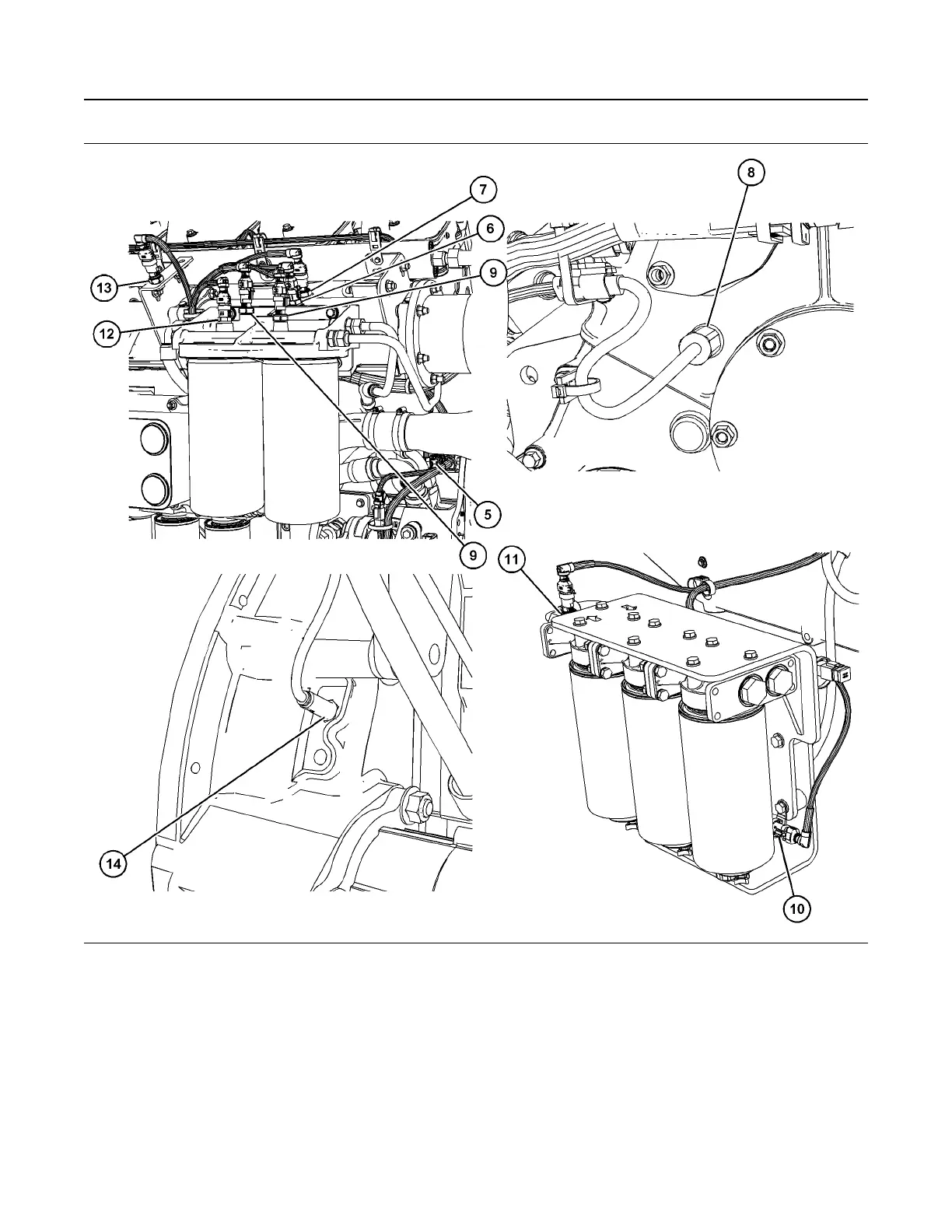

Illustration 38 g07720247
Typical example of the close up views of sensor locations on the right side of the engine
(6) Inlet manifold temperature sensor
(7) Inlet manifold air pressure sensor
(8) Camshaft gear speed sensor
(9) Fuel pressure sensor (secondary fuel
filter)
(10) Water in fuel sensor
(11) Fuel pressure sensor (primary fuel filter)
(12) Fuel temperature sensor
(13) Atmospheric pressure sensor
(14) Flywheel speed sensor (if equipped)
Engine Electrical Components
The engine view shown is a typical examples only.
40 M0163009
